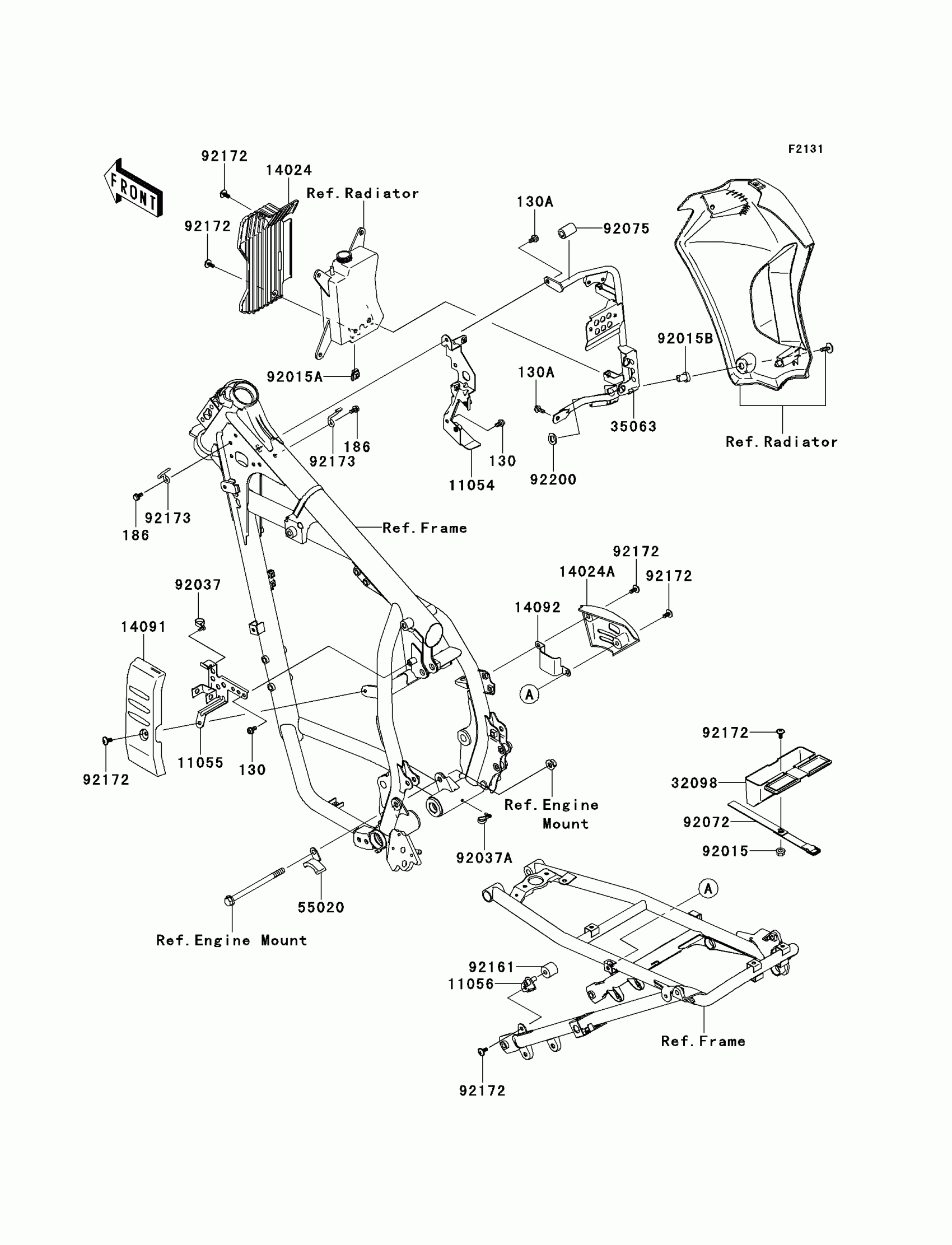

Kawasaki KLR650 New Edition Frame Fittings Diagram

Description

Price

130

BOLT-FLANGED,6X10

130BB0610

$2.49

130A

BOLT-FLANGED,6X14

130BB0614

$2.49

186

BOLT-UPSET-WP,6X14

186AA0614

$0.97

11054

BRACKET,ELECTRIC

11054-0400

$42.00

11055

BRACKET,STARTER RELAY

11055-0291

$39.22

11056

BRACKET

11056-0137

$23.52

14024

COVER,FRONT RESERVOIR

14024-1372

$68.94

14024A

COVER,RESERVOIR TANK

14024-1470

$13.57

14091

COVER,STARTER RELAY

14091-0591

$26.41

14092

COVER

14092-0134

$11.87

32098

CASE-TOOL,F.BLACK

32098-0014-6Z

$47.83

35063

STAY,HORN&RESERVE

35063-0702

$85.58

55020

GUARD,CHAIN

55020-1266

$41.66

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,6MM

92015-1602

$7.34

92015B

NUT,RUBBER,6MM

92015-1692

$7.34

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92037A

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92072

BAND,TOOL CASE

92072-1219

$21.99

92075

DAMPER

92075-1941

$6.52

92161

DAMPER

92161-0510

$6.81

92172

SCREW,6X14

92172-0004

$2.80

92173

CLAMP

92173-0211

$9.51

92200

WASHER,13X23X2

92200-0389

$2.17
