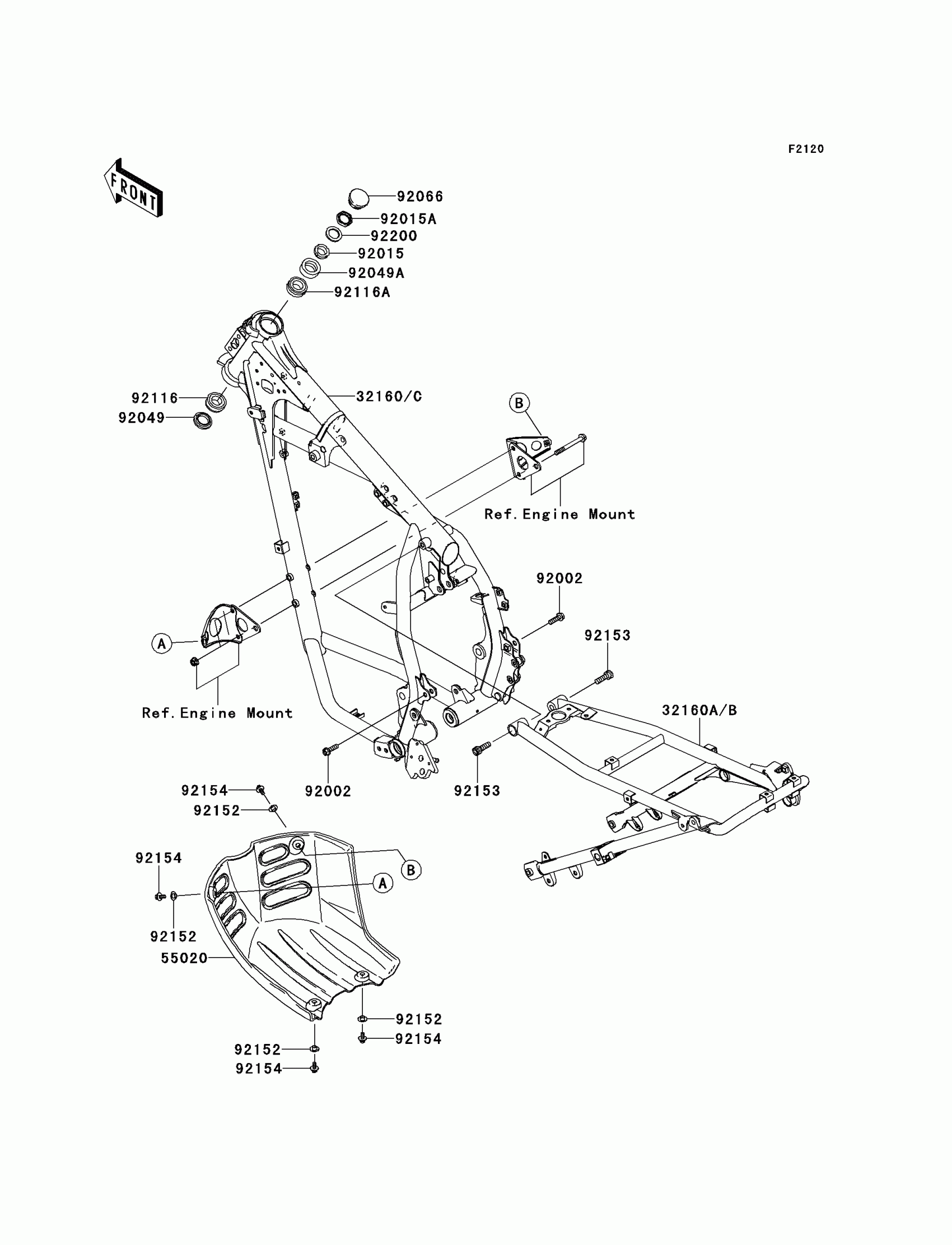

Kawasaki KLR650 New Edition Frame Diagram

Description

Price

55020

GUARD,ENGINE,F.BLACK

55020-0235-6Z

$166.84

92002

BOLT,FLANGED,8X28

92002-1971

$5.00

92015

NUT,25MM,T=12

92015-1546

$20.96

92015A

NUT,STEERING STEM,22MM

92015-1653

$16.69

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

$9.28

92049A

SEAL-OIL,STEERING STEM

92049-1214

$16.69

92066

PLUG

92066-1306

$5.46

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

$36.32

92116A

BEARING-ROLLER,HICAP 32005JR

92116-1052

$36.32

92152

COLLAR

92152-0427

$7.75

92153

BOLT,SOCKET,10X30

92153-1524

$7.75

92154

BOLT,6X16

92154-0391

$1.94

92200

WASHER,STEERING STEM

92200-0517

$7.60

32160

FRAME-COMP,MAIN,F.S.BLACK

32160-0495-18R

$1,474.67

32160A

FRAME-COMP,RR,F.S.BLACK

32160-0496-18R

$1,059.70

32160B

FRAME-COMP,RR,F.S.BLACK

32160-0497-18R

$1,059.70

32160C

FRAME-COMP,MAIN,F.S.BLACK

32160-0499-18R

$1,474.67
