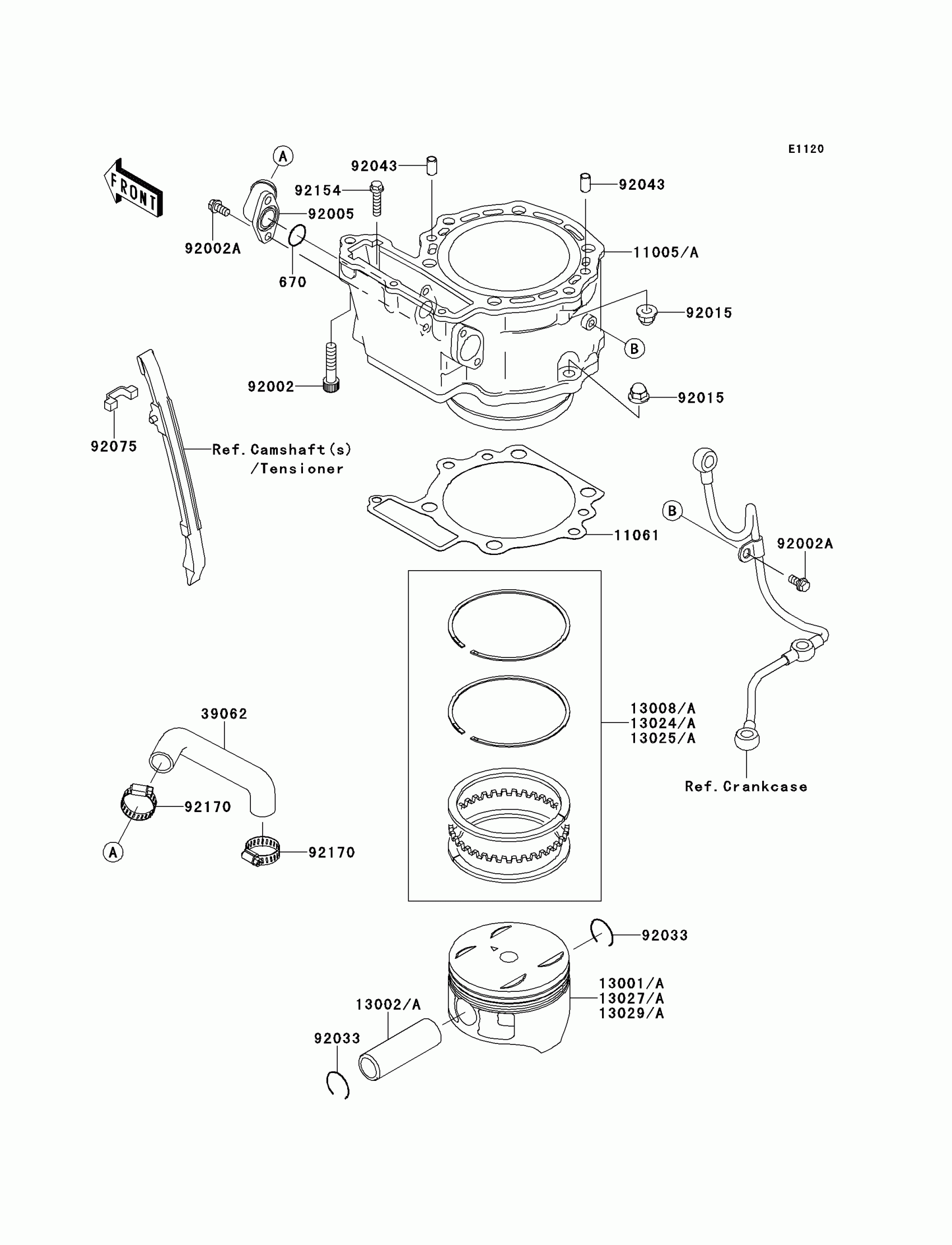

Kawasaki KLR650 New Edition Cylinder/Piston(s) Diagram

Description

Price

670

O RING,18MM

670B2018

$1.42

11005A

CYLINDER-ENGINE

11005-0584

$854.65

11061

GASKET,CYLINDER BASE

11061-0428

$14.49

13001A

PISTON-ENGINE

13001-0723

$192.40

13002

PIN-PISTON

13002-0707

$66.73

13008A

RING-SET-PISTON

13008-0554

$75.03

13024A

RING-SET-PISTON LL,O/S 1.00

13024-0552

$75.03

13025A

RING-SET-PISTON L,O/S 0.50

13025-0055

$75.03

13027A

PISTON-ENGINE LL,O/S 1.00

13027-0055

$196.01

13029A

PISTON-ENGINE L,O/S 0.50

13029-0707

$196.01

39062

HOSE-COOLING,W/P-CYLINDER

39062-0150

$30.76

92002

BOLT,SOCKET,8X35

92002-1409

$5.52

92002A

BOLT,6X12

92002-1569

Unavailable

92005

FITTING

92005-1122

$21.09

92015

NUT,CAP,8MM

92015-1982

$5.00

92033

RING-SNAP

92033-1226

$3.89

92043

PIN,6.2X8X14

92043-1263

$0.43

92075

DAMPER

92075-1968

$5.52

92154

BOLT,FLANGED,6X25

92154-1212

$3.02

92170

CLAMP,COOLING HOSE

92170-1033

$15.16
