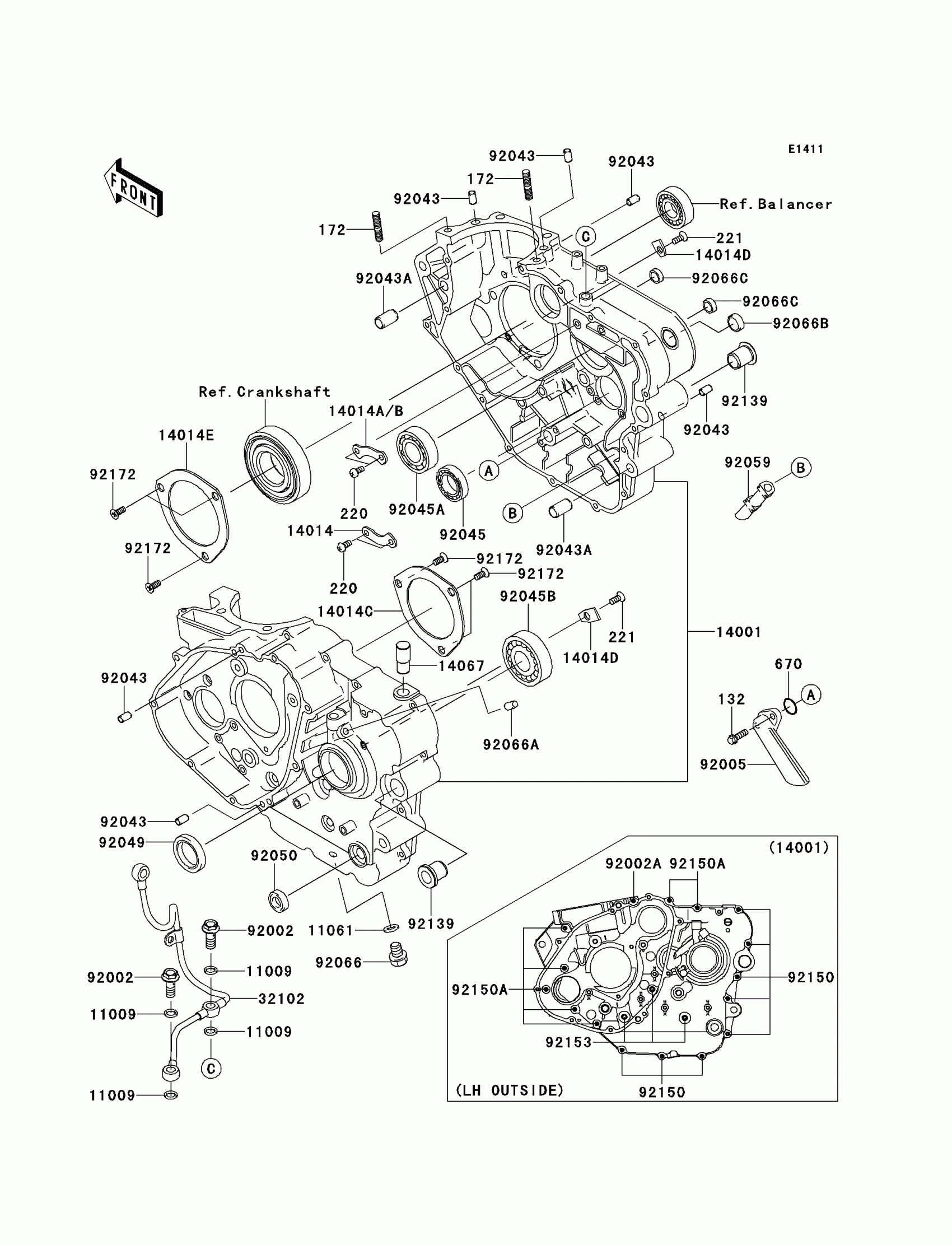

Kawasaki KLR650 New Edition Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$2.49

172

BOLT-STUD,8X22

172BA0822

$2.18

220

SCREW-PAN-CROS,6X12

220AA0612

$1.19

221

SCREW-CSK-CROS,6X12

221AA0612

$2.06

670

O RING,18MM

670D2018

$1.91

11009

GASKET,10X14.5X1.5

11009-1105

$6.51

11061

GASKET,12X22X2

11061-0417

$3.18

14001

SET-CRANKCASE

14001-5421

$1,032.54

14014

PLATE-POSITION

14014-0045

$8.30

14014B

PLATE-POSITION

14014-0562

$6.00

14014C

PLATE-POSITION

14014-1051

$35.74

14014D

PLATE-POSITION

14014-1057

$4.69

14014E

PLATE-POSITION

14014-1083

$35.74

14067

FITTING,BREATHER

14067-006

$21.09

32102

PIPE,CRANKCASE-HEAD

32102-1353

$109.18

92002

BOLT,BANJO,10X25

92002-1170

$9.51

92002A

BOLT,FLANGED,6X60

92002-1567

Unavailable

92005

FITTING

92005-1152

$28.59

92043

PIN,6.2X8X14

92043-1263

$0.43

92043A

PIN,11.5X14X14

92043-1279

$5.00

92045

BEARING-BALL,#6905

92045-036

$27.88

92045A

BEARING-BALL,TMB205

92045-1105

$26.30

92045B

BEARING-BALL,TM-SX0597LU

92045-1127

$43.34

92049

SEAL-OIL,TC32457

92049-1159

$8.60

92050

SEAL-OIL

92050-082

$8.58

92059

TUBE,BREATHER

92059-1833

$14.26

92066

PLUG,OIL DRAIN,12X15

92066-0767

$6.89

92066A

PLUG,OIL LINE,7.2X8

92066-1012

$6.51

92066B

PLUG,RCA207

92066-1264

$8.03

92066C

PLUG

92066-1282

$6.51

92139

BUSHING

92139-0292

$16.21

92150

BOLT,6X30

92150-1021

Unavailable

92150A

BOLT,6X50

92150-1968

$4.87

92153

BOLT,FLANGED-SMALL,8X80

92153-1323

$3.90

92172

SCREW,6X15

92172-0144

$2.02
