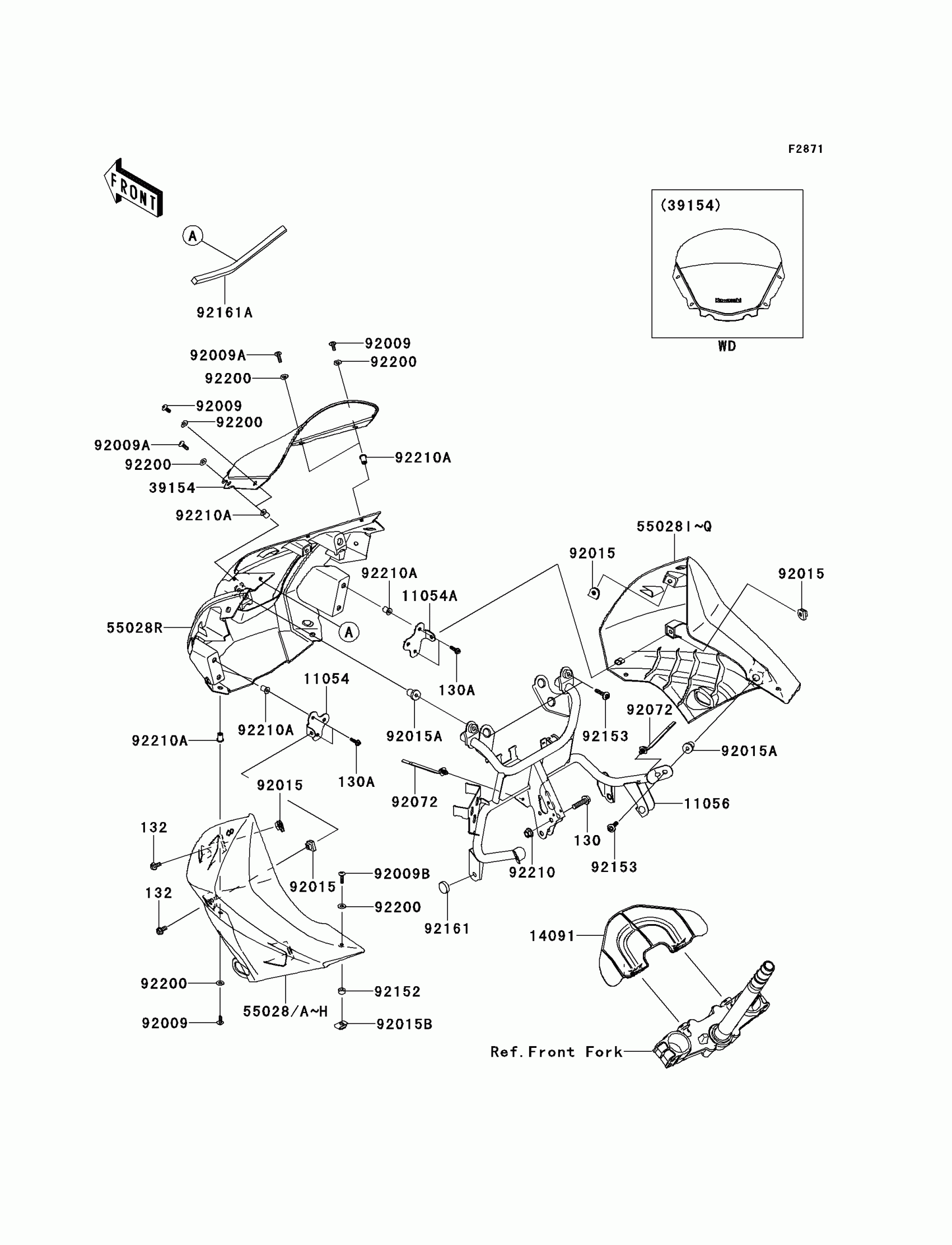

Kawasaki KLR650 New Edition Cowling Diagram
#
Description
Price
11054
BRACKET,UPP COWLING,LH
11054-0457
$10.68
11054A
BRACKET,UPP COWLING,RH
11054-0458
$10.68
11056
BRACKET,UPP COWLING
11056-0188
$160.78
14091
COVER,SOUNDPROOF
14091-0658
$30.68
39154
WINDSHIELD
39154-5036
$165.33
55028F
COWLING,UPP,LH,M.F.R.GRAYSTONE
55028-0111-35B
$227.45
55028H
COWLING,UPP,LH,C.L.GREEN
55028-0111-35P
$227.76
55028O
COWLING,UPP,RH,M.F.R.GRAYSTONE
55028-0112-35B
$227.45
55028Q
COWLING,UPP,RH,C.L.GREEN
55028-0112-35P
$227.76
55028R
COWLING,UPP,CNT,F.BLACK
55028-0201-21
$279.28
130
BOLT-FLANGED,8X30
130BA0830
$1.98
130A
BOLT-FLANGED,5X16
130BB0516
$2.06
132
BOLT-FLANGED-SMALL,6X14
132BB0614
$2.49
92009
SCREW,5X14
92009-1653
$3.96
92009A
SCREW,5X18
92009-1655
$4.31
92009B
SCREW,5X20,BLACK
92009-1656
$3.96
92015
NUT,6MM
92015-1602
$7.34
92015A
NUT,RUBBER,6MM
92015-1692
$7.34
92015B
NUT,5MM
92015-1710
$6.22
92072
BAND,OS170-FT7(BLACK)
92072-1414
$3.74
92152
COLLAR,5.6X12X5.7
92152-0618
$3.93
92153
BOLT,SOCKET,6X30
92153-1528
$3.39
92161
DAMPER
92161-0336
$5.65
92161A
DAMPER,UPP COWLING
92161-0536
$5.70
92200
WASHER,NYLON,5.3X11.5X0.5
92200-1480
$1.59
92210
NUT,FLANGED,8MM
92210-0304
$3.39
92210A
NUT,WELL,5MM
92210-0498
$7.29
55028E
COWLING,UPP,LH,P.S.WHITE
55028-0111-25Y
$227.76
55028N
COWLING,UPP,RH,P.S.WHITE
55028-0112-25Y
$227.76
