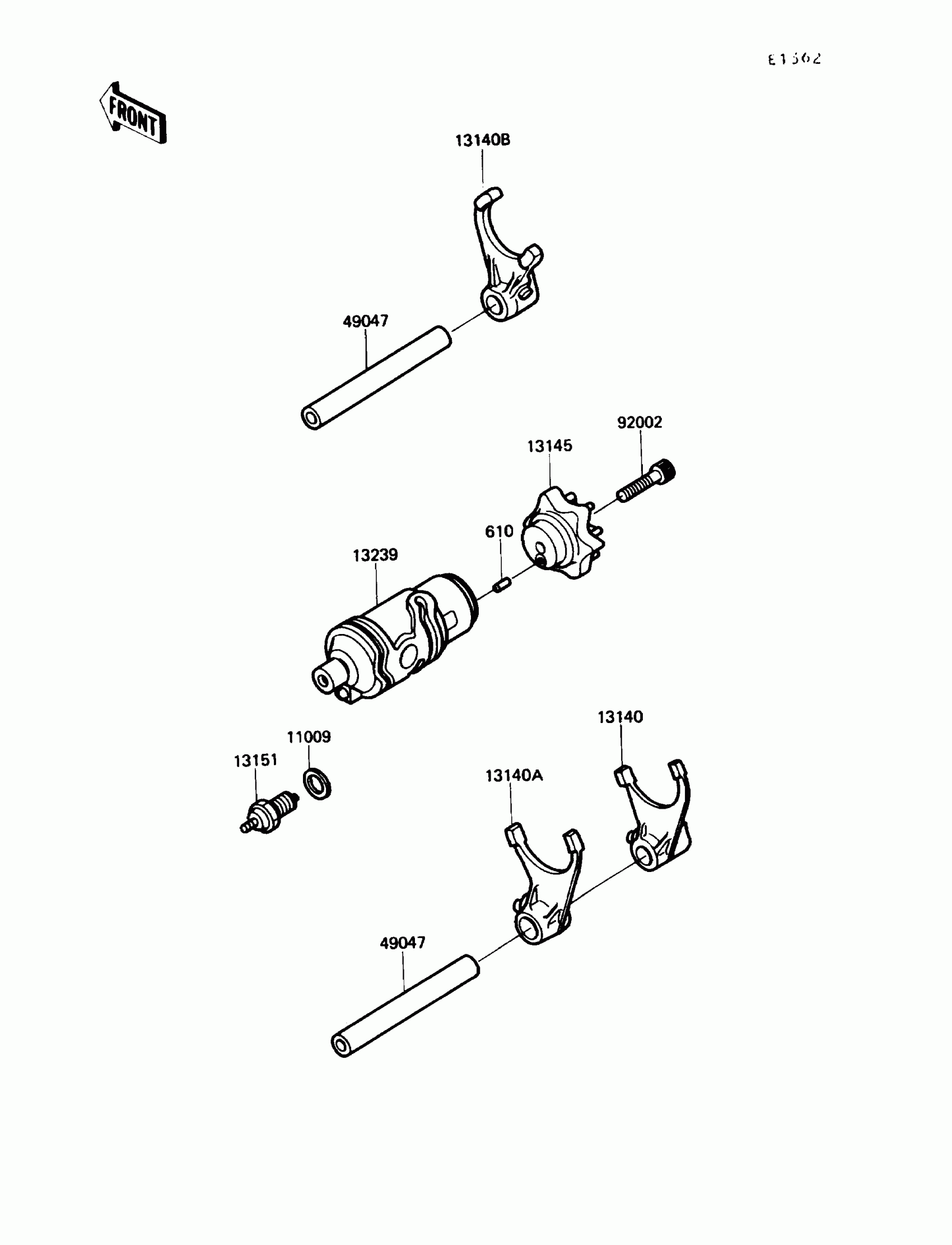

Kawasaki KLR650 Change Drum/Shift Fork Diagram

#

Description
Price

11009

GASKET,10.5X16X1

92065-058

$3.03

13140

FORK-SHIFT,LOW

13140-1023

$99.73

13140A

FORK-SHIFT,2ND&3RD

13140-1024

$99.73

13140B

FORK-SHIFT,4TH&TOP

13140-1025

Unavailable

13145

CAM-CHANGE DRUM

13145-1051

Unavailable

13151

SWITCH-COMP,NEUTRAL

13151-1007

Unavailable

13239

DRUM-ASSY-CHANGE

13239-1103

$180.94

49047

ROD-SHIFT,L=93.7

49047-1003

Unavailable

92002

BOLT,SOCKET,6X25

92002-1696

$1.43

610

ROLLER,4X10

610A0410

$3.29
