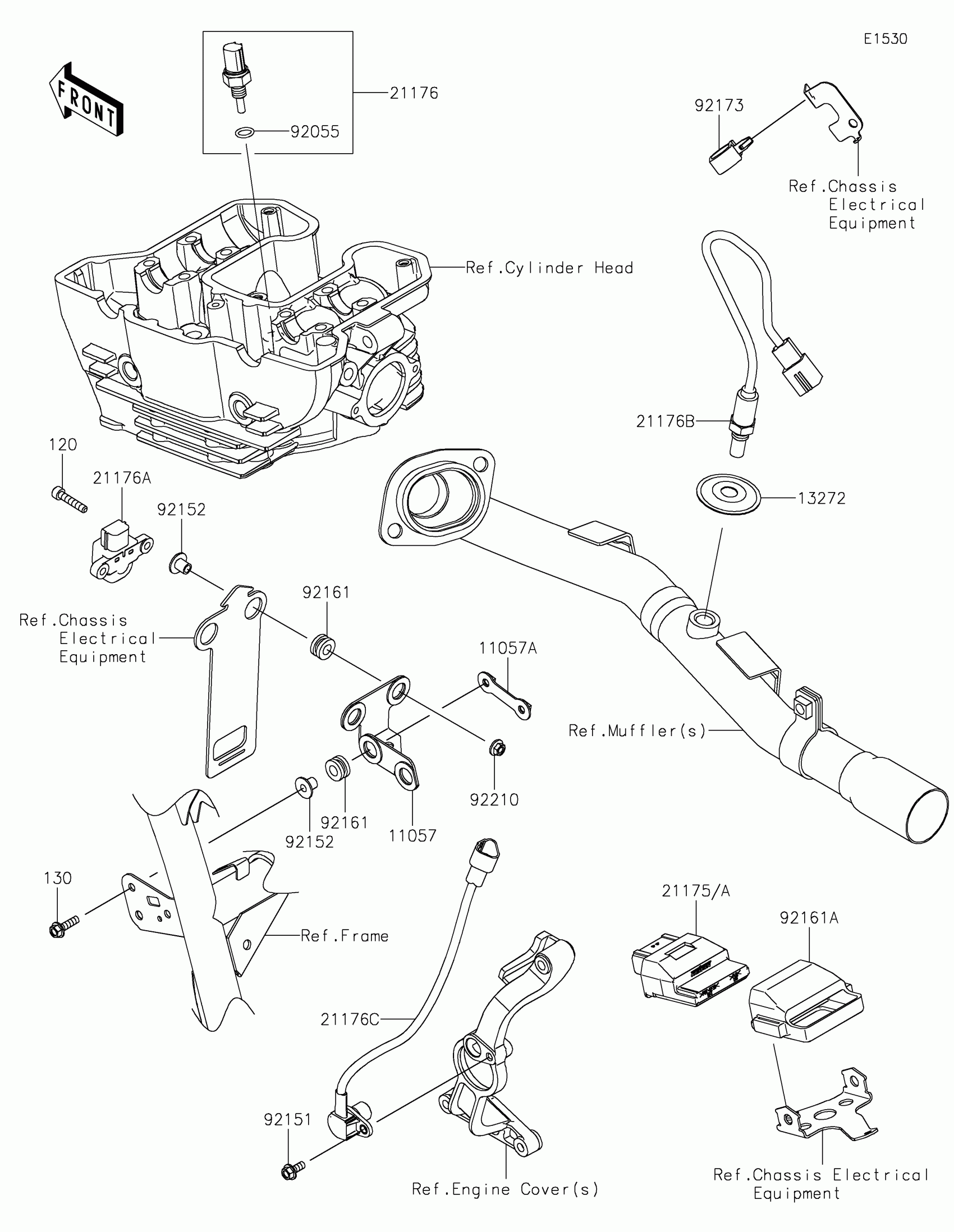

Kawasaki KLR650 Fuel Injection Diagram

Description

Price

11057

BRACKET,VEHICLE DOWN SENSOR

11057-7429

$3.04

11057A

BRACKET

11057-7434

$2.56

13272

PLATE,O2 SENSOR

13272-3888

$1.84

21175

CONTROL UNIT-ELECTRONIC

21175-1665

$380.28

21175A

CONTROL UNIT-ELECTRONIC

21175-1666

$380.28

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$86.97

21176B

SENSOR,OXYGEN

21176-0993

$235.01

21176C

SENSOR,SPEED SENSOR

21176-0996

$146.26

92055

RING-O,9.5X1.9

92055-0016

$8.89

92151

BOLT,FLANGED,5X12

92151-1305

$1.59

92152

COLLAR

92152-1592

$3.02

92161

DAMPER,8X16X8.6

92161-0685

$6.61

92161A

DAMPER,ECU

92161-2358

$7.29

92173

CLAMP

92173-2462

$1.84

92210

NUT,FLANGED,5MM

92210-0007

$2.70

120

BOLT-SOCKET,5X25

120CA0525

$4.71

130

BOLT-FLANGED,5X18

130BB0518

$2.03
