Description

Price

32002

FRAME-COMP,RR,SILVER NO.25

32002-1918-CE

$1,098.85

32002A

FRAME-COMP,RR,SILVER NO.25

32002-1923-CE

$1,098.85

32002B

FRAME-COMP,FR,SILVER NO.25

32002-1955-CE

Unavailable

55020

GUARD,ENGINE,BLACK

55020-1249-6Z

$235.98

92002

BOLT,SOCKET,8X30

92002-1844

Unavailable

92002A

BOLT,FLANGED,8X28

92002-1971

$5.00

92015

NUT,18MM

92015-1404

$23.49

92015A

NUT,25MM,T=12

92015-1546

$20.96

92022

WASHER,CLAW,18.5X30X2.3

92022-1555

$7.62

92027

COLLAR

92027-1794

$4.31

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

$9.28

92049A

SEAL-OIL,STEERING STEM

92049-1214

$16.69

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

$36.32

92116A

BEARING-ROLLER,HICAP 32005JR

92116-1052

$36.32

130

BOLT-FLANGED,6X12

130G0612

$1.69

130A

BOLT,FLANGED,6X14

130G0614

$1.17

410

W-PLAIN-S

410F1800

$5.21

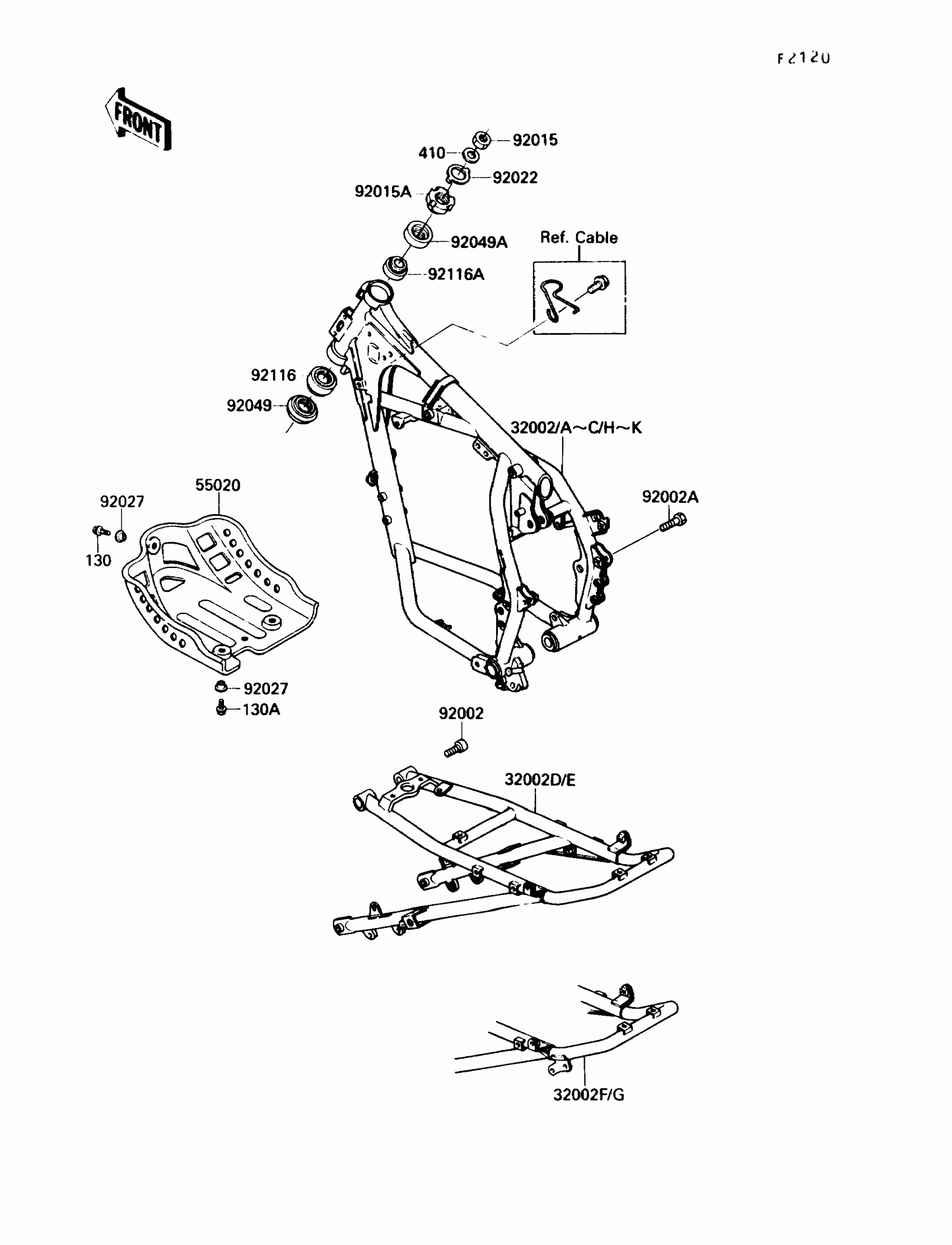

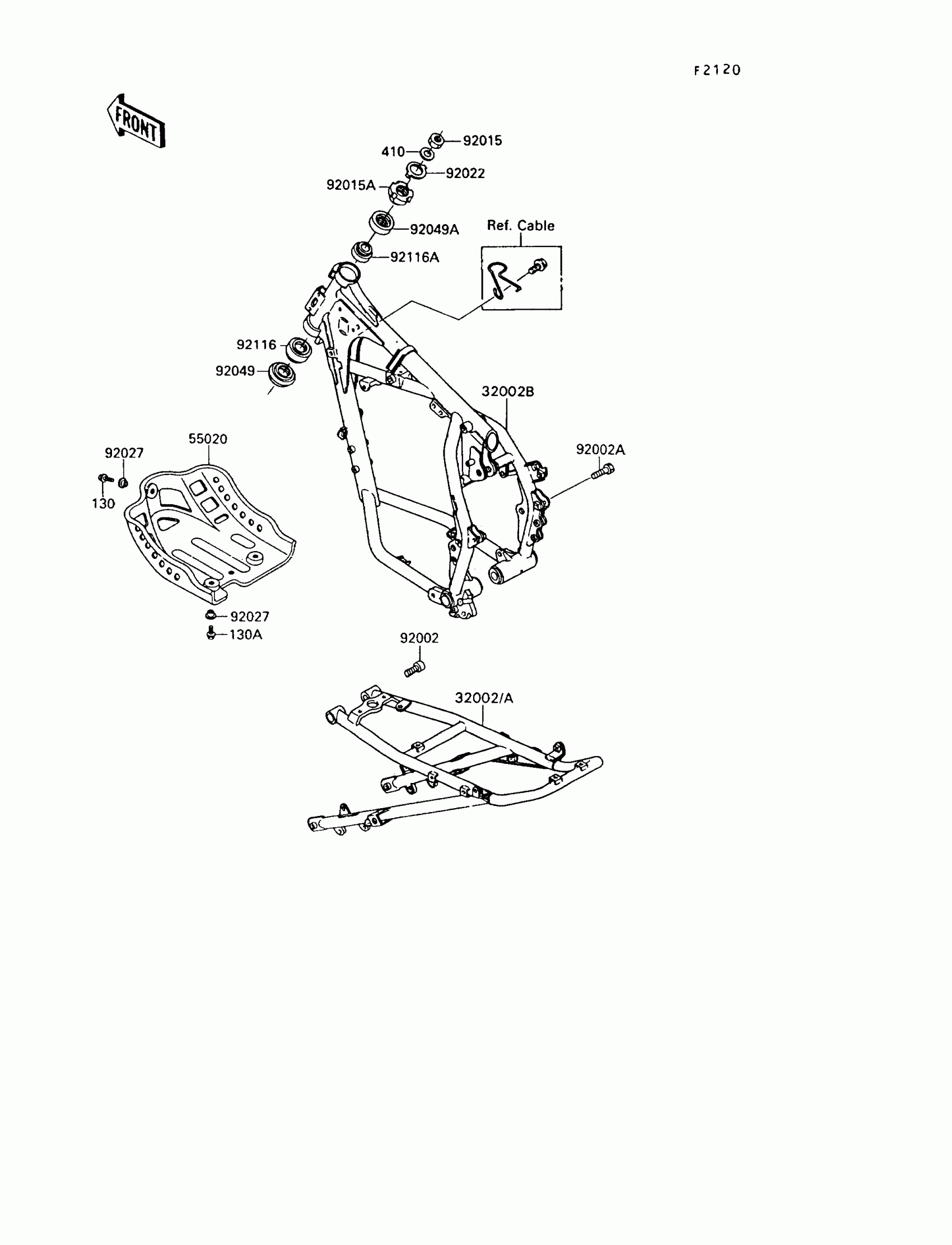

Kawasaki KLR650 Frame Diagram

FRAME-COMP,RR,SILVER NO.25

FRAME-COMP,RR,SILVER NO.25

FRAME-COMP,FR,SILVER NO.25

GUARD,ENGINE,BLACK

BOLT,SOCKET,8X30

BOLT,FLANGED,8X28

NUT,18MM

NUT,25MM,T=12

WASHER,CLAW,18.5X30X2.3

COLLAR

SEAL-OIL,XMHE36X52X4J

SEAL-OIL,STEERING STEM

BEARING-ROLLER,HR320/28XJ

BEARING-ROLLER,HICAP 32005JR

BOLT-FLANGED,6X12

BOLT,FLANGED,6X14

W-PLAIN-S
