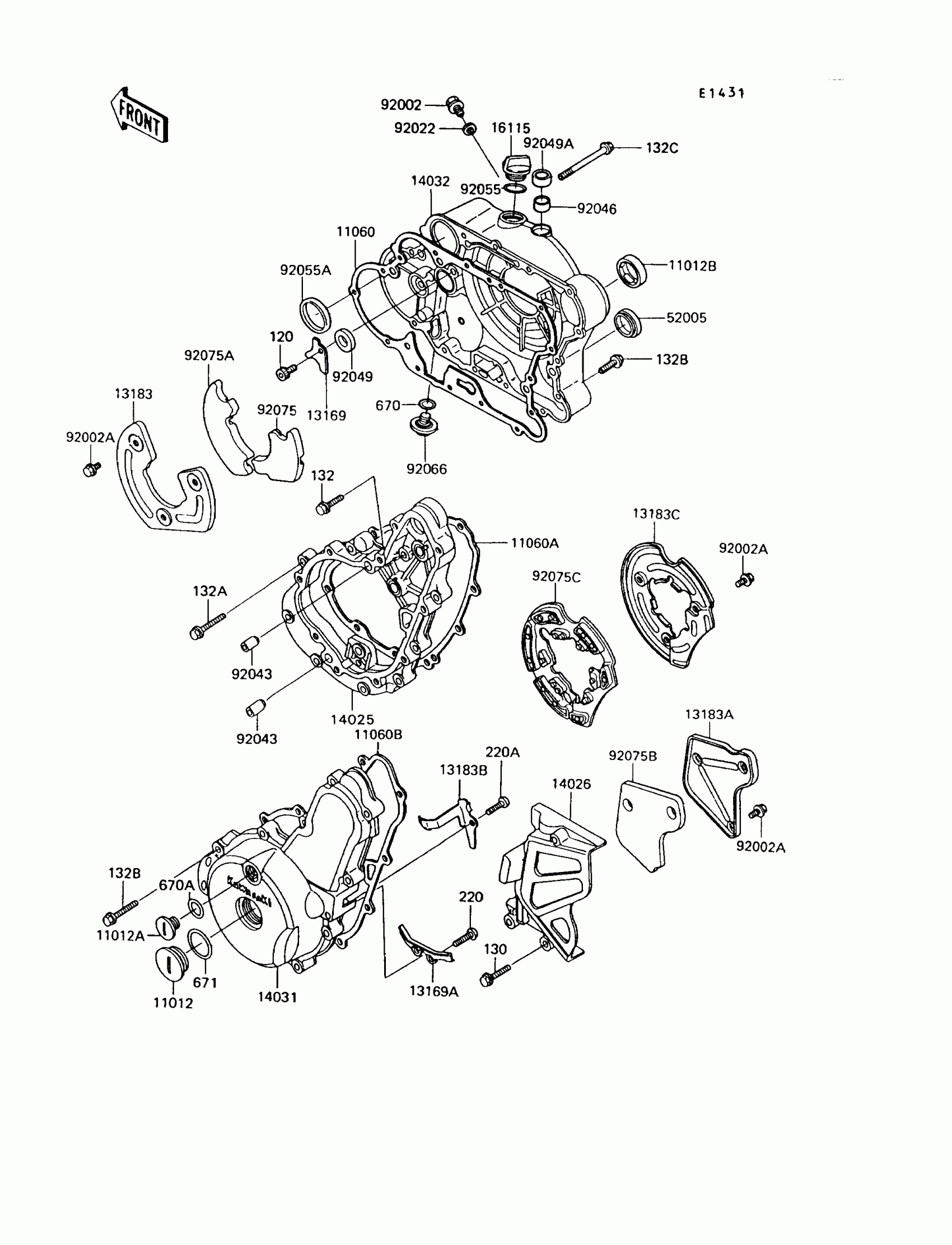

Kawasaki KLR650 Engine Cover(s) Diagram
#
11012
CAP
11012-1362
$8.79
11012A
CAP,TOP MARK
11012-1363
$6.51
11012B
CAP
11012-1567
$9.82
11060
GASKET,CLUTCH COVER
11060-1111
$36.66
11060A
GASKET,GENERATOR CASE COVER
11060-1112
Unavailable
11060B
GASKET,GENERATOR COVER
11060-1113
Unavailable
13169
PLATE,OIL SEAL
13169-1735
$7.62
13169A
PLATE,PULSING COIL LEAD
13169-1882
$8.86
13183
PLATE
13183-1122
Unavailable
13183A
PLATE
13183-1133
Unavailable
13183B
PLATE,GENERATOR
13183-1144
$9.45
13183C
PLATE
13183-1146
Unavailable
14025
COVER,GENERATOR CASE
14025-1990
Unavailable
14026
COVER-CHAIN
14026-1131
Unavailable
14031
COVER-GENERATOR
14031-1210
Unavailable
14032
COVER-CLUTCH
14032-1230
Unavailable
16115
CAP-OIL FILLER
16115-1009
$14.30
52005
GAUGE,OIL LEVEL
52005-1009
$18.40
92002
BOLT,FLANGED,6X9.5
92002-1356
$6.22
92002A
BOLT,6X8
92002-1944
$4.69
92022
WASHER,6.2X11X1
92022-304
$3.65
92043
PIN,6.2X8X14
92043-1263
$0.43
92046
BEARING-NEEDLE,HK1210
92046-1010
Unavailable
92049
SEAL-OIL,SCY 15X30X7
92049-1158
$25.27
92049A
SEAL-OIL,TB12205.5
92049-1271
$9.28
92055
RING-O,31.5X2.6
92055-049
$4.31
92055A
RING-O,62.6X66X3.1
92055-1221
$8.86
92066
PLUG,DRAIN
92066-1156
$9.20
92075
DAMPER
92075-1939
$13.51
92075A
DAMPER
92075-1940
$14.45
92075B
DAMPER
92075-1943
Unavailable
92075C
DAMPER
92075-1959
Unavailable
120
BOLT-SOCKET,6X10
120P0610
$1.60
130
BOLT-FLANGED,6X25
130J0625
$2.62
132
BOLT-FLANGED-SMALL,6X20
132J0620
$3.64
132A
BOLT-FLANGED-SMALL,6X25
132J0625
$2.62
132B
BOLT-FLANGED-SMALL,6X30
132J0630
$3.84
132C
BOLT-FLANGED-SMALL
132J0680
$5.55
220
SCREW PAN HEAD 5X10
220B0510
$0.69
220A
SCREW PAN HEAD 6X12
220B0612
Unavailable
670
O RING,11MM
670B2011
$1.28
670A
O RING,18MM
670B2018
$1.42
671
O RING,40MM
671B2540
$6.22
