Description

Price

11005

CYLINDER-ENGINE

11005-1511

Unavailable

11007

LINER-CYLINDER

11007-1093

Unavailable

11060

GASKET,CYLINDER BASE

11060-1110

$13.72

13001

PISTON-ENGINE,STD

13001-1284

Unavailable

13002

PIN-PISTON

13002-1069

Unavailable

13008

RING-SET-PISTON,STD

13008-1081

Unavailable

13024

RING-SET-PISTON LL,O/S 1.00

13024-1071

Unavailable

13025

RING-SET-PISTON L,O/S 0.50

13025-1078

Unavailable

13027

PISTON-ENGINE LL,O/S 1.00

13027-1153

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-1176

Unavailable

39062

HOSE-COOLING,PUMP-CYLINDER

39062-1216

$24.61

92002

BOLT,SOCKET,8X35

92002-1409

$5.52

92005

FITTING

92005-1122

$21.09

92015

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92033

RING-SNAP

92033-1226

$3.89

92043

PIN,6.2X8X14

92043-1263

$0.43

92055

RING-O

92055-1368

$16.35

92075

DAMPER

92075-1968

$5.52

92170

CLAMP,COOLING HOSE

92170-1033

$15.16

132

BOLT-FLANGED-SMALL

132G0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

670

O RING,18MM

670B2018

$1.42

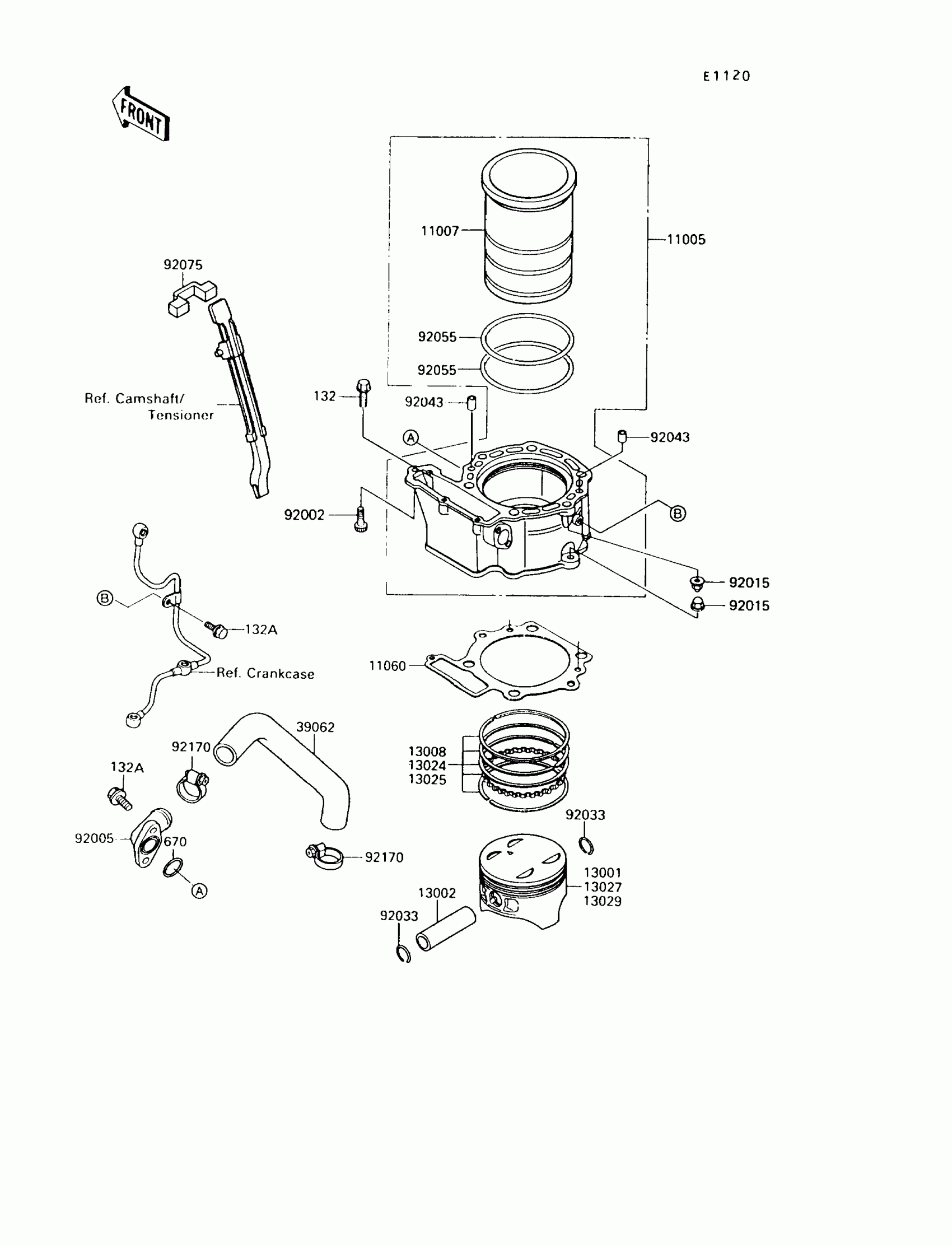

Kawasaki KLR650 Cylinder/Piston(s) Diagram

CYLINDER-ENGINE

LINER-CYLINDER

GASKET,CYLINDER BASE

PISTON-ENGINE,STD

PIN-PISTON

RING-SET-PISTON,STD

RING-SET-PISTON LL,O/S 1.00

RING-SET-PISTON L,O/S 0.50

PISTON-ENGINE LL,O/S 1.00

PISTON-ENGINE L,O/S 0.50

HOSE-COOLING,PUMP-CYLINDER

BOLT,SOCKET,8X35

FITTING

NUT,CAP,8MM,BLACK

RING-SNAP

PIN,6.2X8X14

RING-O

DAMPER

CLAMP,COOLING HOSE

BOLT-FLANGED-SMALL

BOLT-FLANGED-SMALL,6X12

O RING,18MM
