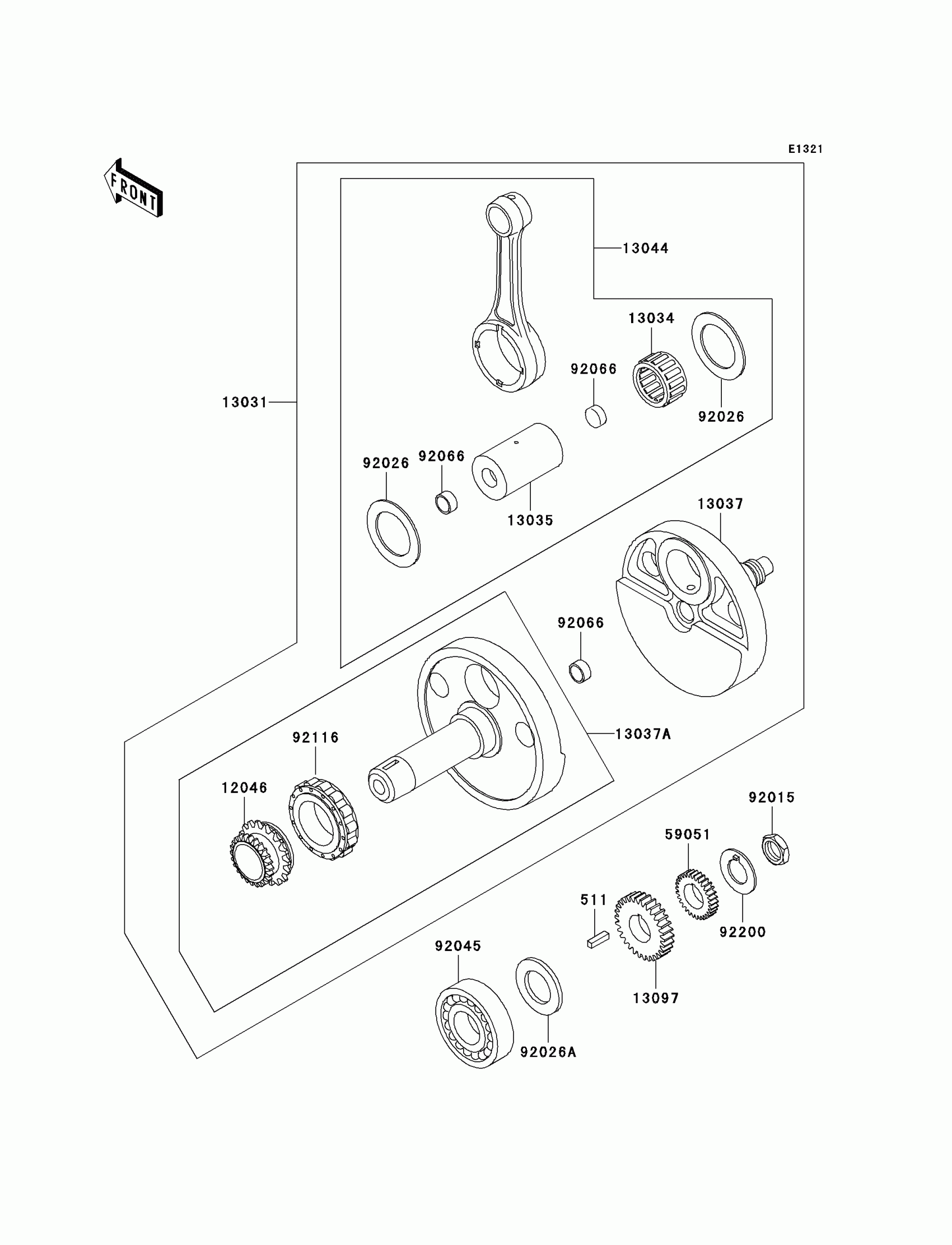

Kawasaki KLR650 Crankshaft(-KL650AE032205) Diagram

Description

Price

511

KEY-SUNK

511A0520

$2.70

12046

SPROCKET,CAM&BALANCER

12046-1070

Unavailable

13031

CRANKSHAFT-COMP

13031-1276

Unavailable

13034

BEARING-BIG END

13034-1084

$80.35

13035

PIN-CRANK

13035-1066

$81.44

13037

CRANKSHAFT,RH

13037-1351

Unavailable

13037A

CRANKSHAFT,LH

13037-5077

Unavailable

13044

SET-CONNECTING ROD

13044-5073

$319.68

13097

GEAR-PRIMARY SPUR,33T

13097-1333

$70.83

59051

GEAR-SPUR,27T

59051-1145

$56.36

92015

NUT,22MM

92015-1890

$14.23

92026

SPACER,40X60X1.5

92026-1279

$19.27

92026A

SPACER,30X50X4

92026-1280

$20.51

92045

BEARING-BALL,TM-SX08A50C3

92045-1187

Unavailable

92066

PLUG

92066-1154

$4.65

92116

BEARING-ROLLER,L40-11C3

92116-1064

$169.90

92200

WASHER,CLAW

92200-1157

$6.16
