Description

Price

13087

HUB-CLUTCH

13087-1052

Unavailable

13088

PLATE-FRICTION

13088-040

$12.57

13089

PLATE-CLUTCH,T=2.0

13089-1068

$12.80

13091

HOLDER,CLUTCH CABLE

13091-1257

Unavailable

13095

HOUSING-COMP-CLUTCH

13095-1157

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-1074

Unavailable

13187

PLATE-CLUTCH OPERATING

13187-1012

Unavailable

46102

ROD,CLUTCH

46102-1030

$29.92

92001

BOLT,FLANGED,6X18

92001-1066

$6.22

92015

NUT,20MM

92015-1555

$13.08

92022

WASHER,20.3X36X2.3

92022-1116

$8.58

92022A

WASHER,25.5X52.6X2

92022-1476

$10.14

92026

SPACER,25.1X38X4

92026-1206

$20.99

92027

COLLAR,25X30X29.2

92027-1684

$19.38

92045

BEARING-BALL,6001C3ML01

92045-1235

$16.25

92144

SPRING,CLUTCH

92144-1151

$9.03

180

BOLT-UPSET-WS

180J0612

$4.02

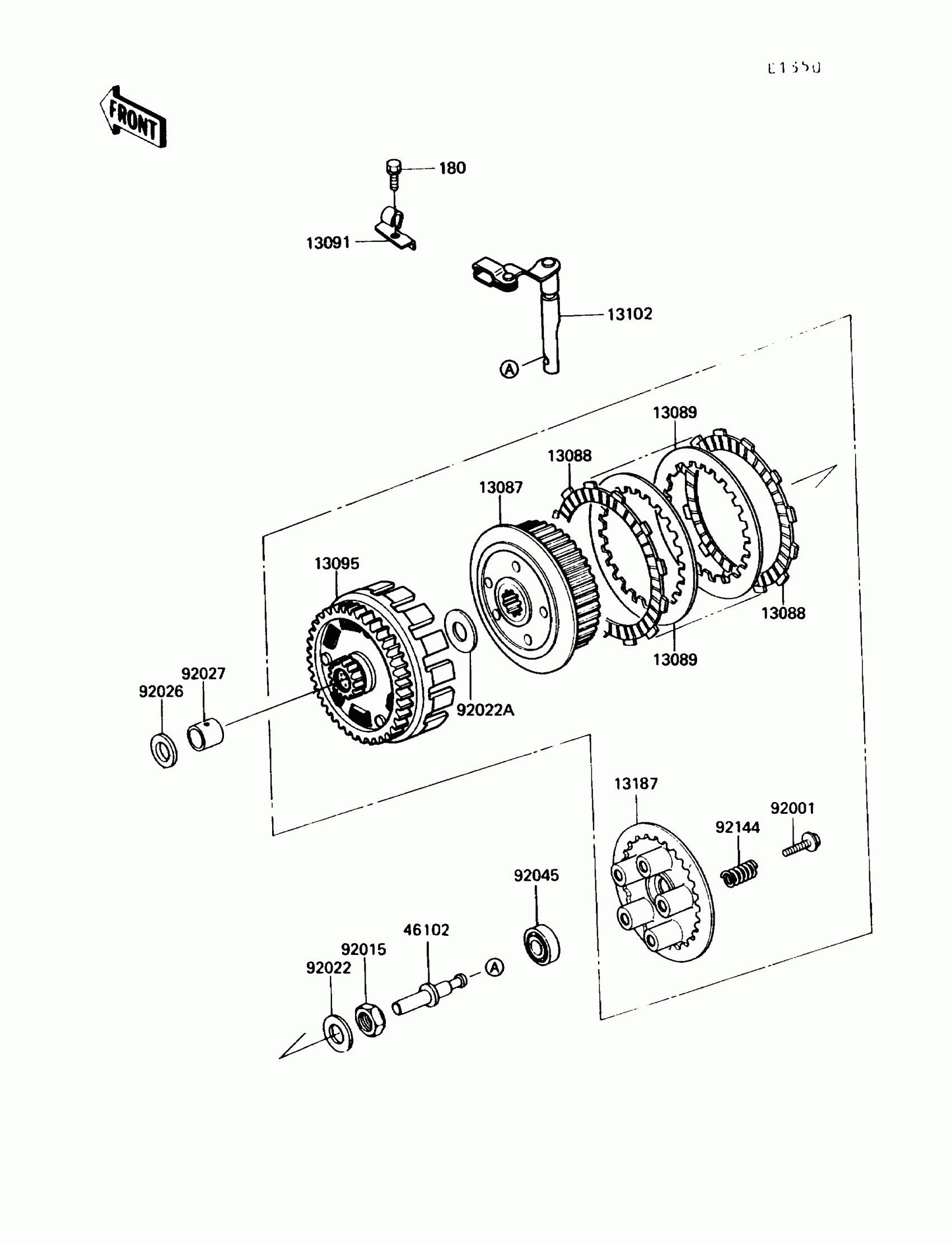

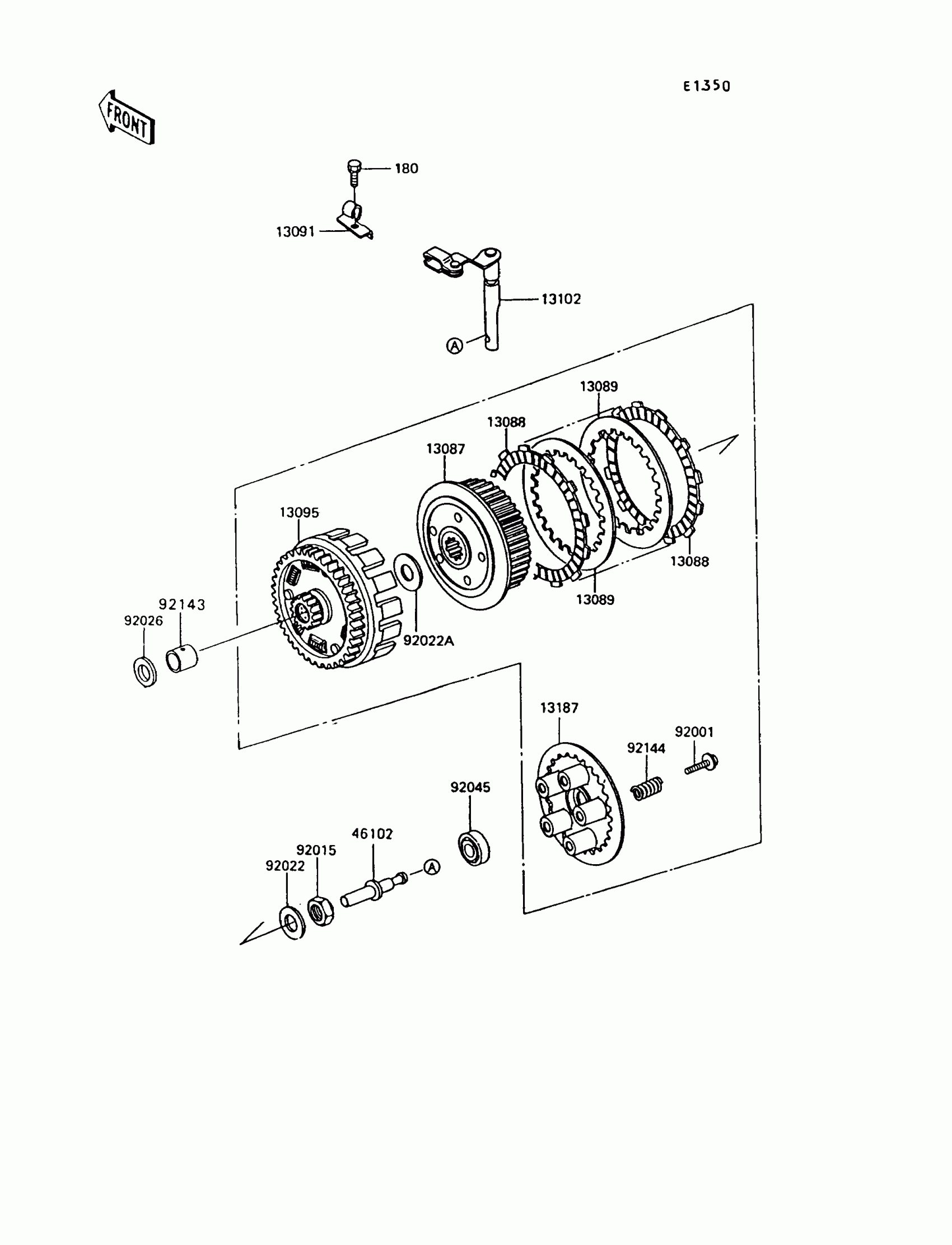

Kawasaki KLR650 Clutch Diagram

HUB-CLUTCH

PLATE-FRICTION

PLATE-CLUTCH,T=2.0

HOLDER,CLUTCH CABLE

HOUSING-COMP-CLUTCH

RELEASE-COMP-CLUTCH

PLATE-CLUTCH OPERATING

ROD,CLUTCH

BOLT,FLANGED,6X18

NUT,20MM

WASHER,20.3X36X2.3

WASHER,25.5X52.6X2

SPACER,25.1X38X4

COLLAR,25X30X29.2

BEARING-BALL,6001C3ML01

SPRING,CLUTCH

BOLT-UPSET-WS
