2017 Kawasaki KLR650 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2017 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

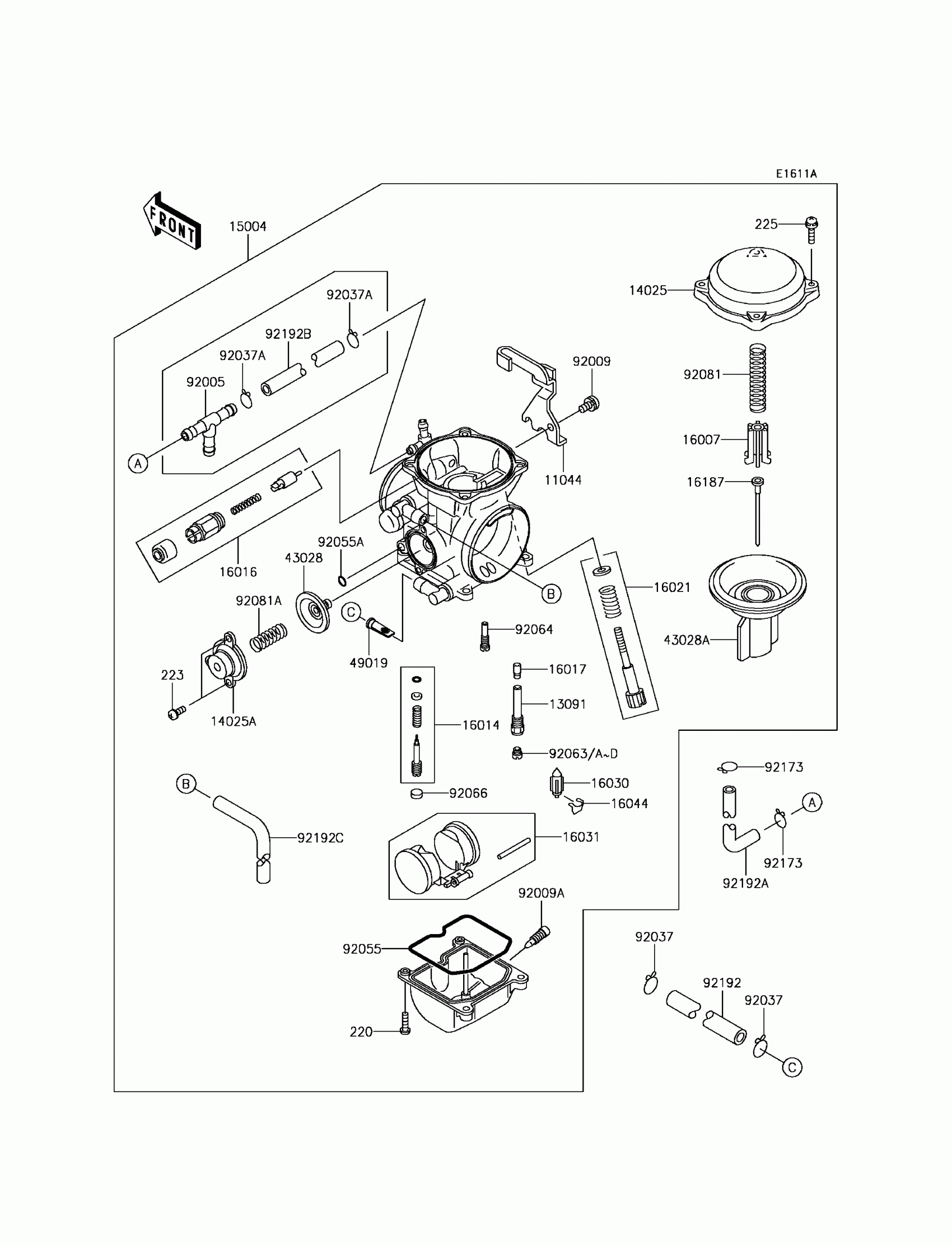

2017 Kawasaki KLR650 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11044

1

$60.78

In stock

13091

HOLDER,NEEDLE JET

13091-1425

1

$26.89

In stock

14025

1

$79.30

In stock

14025A

COVER,AIR CUT VALVE

14025-1903

1

$59.59

In stock

15004

1

$791.89

In stock

16007

1

$19.49

In stock

16014

SCREW-PILOT AIR

16014-1083

1

$21.44

In stock

16016

PLUNGER

16016-1087

1

$80.64

In stock

16017

JET-NEEDLE,#6

16017-0055

1

$49.03

In stock

16021

SCREW-THROTTLE STOP

16021-1201

1

$47.83

In stock

16030

VALVE-FLOAT

16030-1057

1

$42.75

In stock

16031

FLOAT

16031-1077

1

$48.44

In stock

16044

CLAMP,FLOAT VALVE

16044-007

1

$6.30

In stock

16187

NEEDLE-JET,N6NJ

16187-0275

1

$37.62

In stock

43028

1

$81.59

In stock

43028A

DIAPHRAGM,VALVE

43028-1062

1

$200.91

In stock

49019

FILTER-FUEL

49019-1097

1

$7.33

In stock

92005

FITTING,FUEL,T-TYPE

92005-1112

1
Out of stock

92009

SCREW,5X10

92009-1365

1
Out of stock

92009A

SCREW,DRAIN,M6X0.75

92009-1551

1
Out of stock

92037

CLAMP,12.5MM

92037-1271

1

$1.80

In stock

92037A

CLAMP,TUBE

92037-1477

1

$3.43

In stock

92055

1

$13.70

In stock

92055A

RING-O

92055-1245

1

$4.42

In stock

92063

JET-MAIN,#140

92063-1013

1

$11.16

In stock

92063A

JET-MAIN,#142

92063-1016

1

$13.39

In stock

92063B

JET-MAIN,#145

92063-1017

1

$11.16

In stock

92063C

JET-MAIN,#148

92063-1324

1

$13.39

In stock

92063D

JET-MAIN,#150

92063-1330

1

$13.39

In stock

92064

JET-PILOT,#40

92064-1108

1

$13.38

In stock

92066

1

$4.01

In stock

92081

1

$26.00

In stock

92081A

1

$12.05

In stock

92173

CLAMP

92173-1190

1

$2.10

In stock

92192

TUBE,FUEL,6.2X13.2X170

92192-0453

1
Out of stock

92192A

TUBE,5X9X40&20

92192-0480

1
Out of stock

92192B

TUBE,L=70

92192-0588

1
Out of stock

92192C

TUBE,L=360

92192-0589

1
Out of stock

220

1

$3.65

In stock

223

SCREW-PAN-WS-CROS,4X8

223C0408

1
Out of stock

225

1

$3.88

In stock
