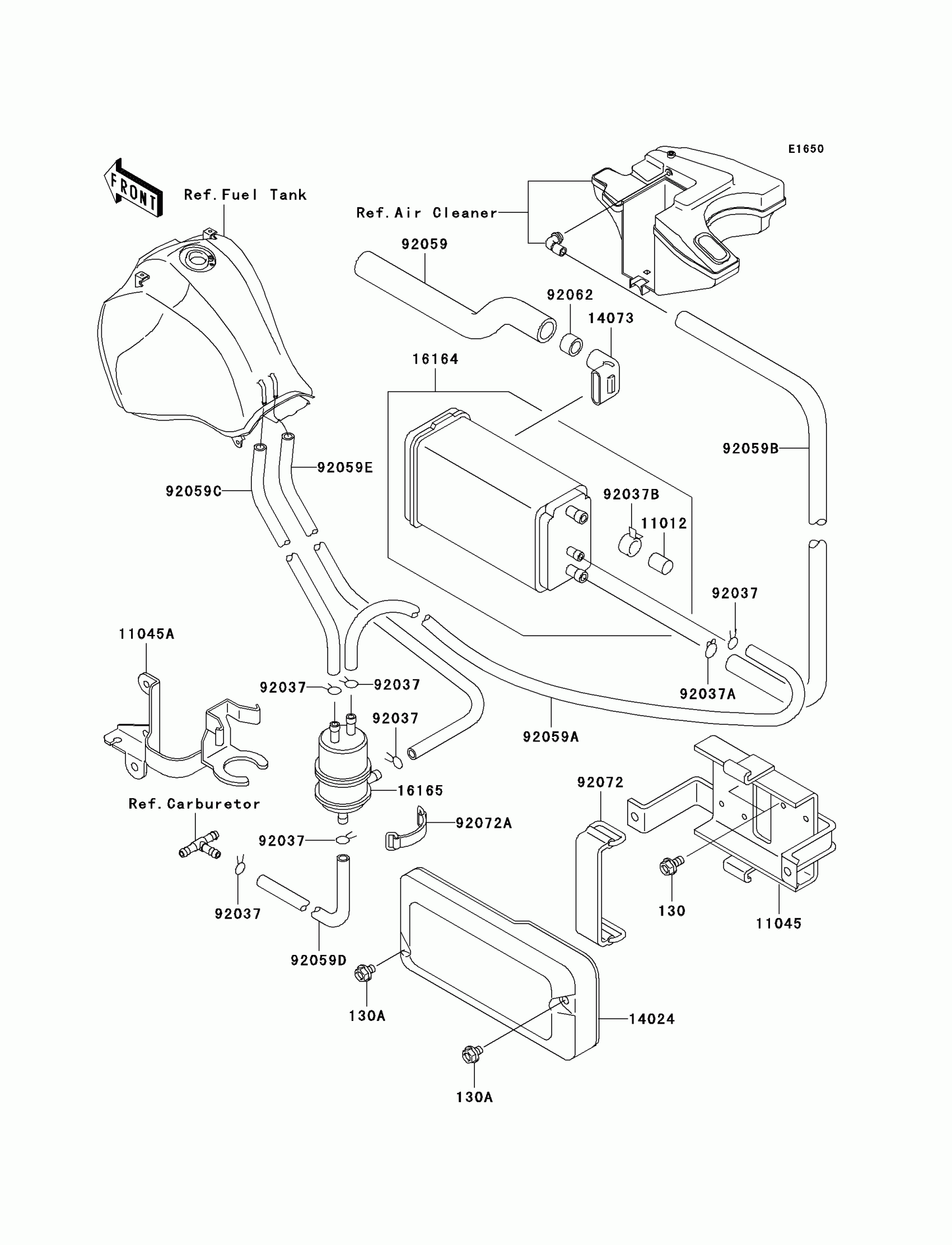

Kawasaki KLR650 Fuel Evaporative System(CA) Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.31

11045

BRACKET,CANISTER

11045-1416

$48.28

11045A

BRACKET,SEPARATOR

11045-1417

$40.06

14024

COVER,CANISTER

14024-1401

$38.58

14073

DUCT,CANISTER

14073-1219

$16.84

16164

CANISTER

16164-1054

$132.79

16165

SEPARATOR

16165-1001

$79.83

92037

CLAMP,TUBE

92037-072

$5.51

92037A

CLAMP-HOSE

92037-1104

$1.09

92037B

CLAMP,CANISTER

92037-1512

$5.71

92059

TUBE,14X20X200

92059-1800

$19.07

92059A

TUBE,5X9X890,BLUE

92059-1801

$32.75

92059B

TUBE,7X12X770,GREEN

92059-1802

$34.92

92059C

TUBE,5X9X300,RED

92059-1803

$32.75

92059D

TUBE,4X9X310,WHITE

92059-1804

$14.40

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED,6X8

130L0608

Unavailable

92059E

TUBE,5X9X400,BLUE

92059-1805

$32.75

92062

NOZZLE,CANISTER

92062-1070

$10.64

92072

BAND,L=90

92072-045

$14.14

92072A

BAND,L=50

92072-1419

$12.21
