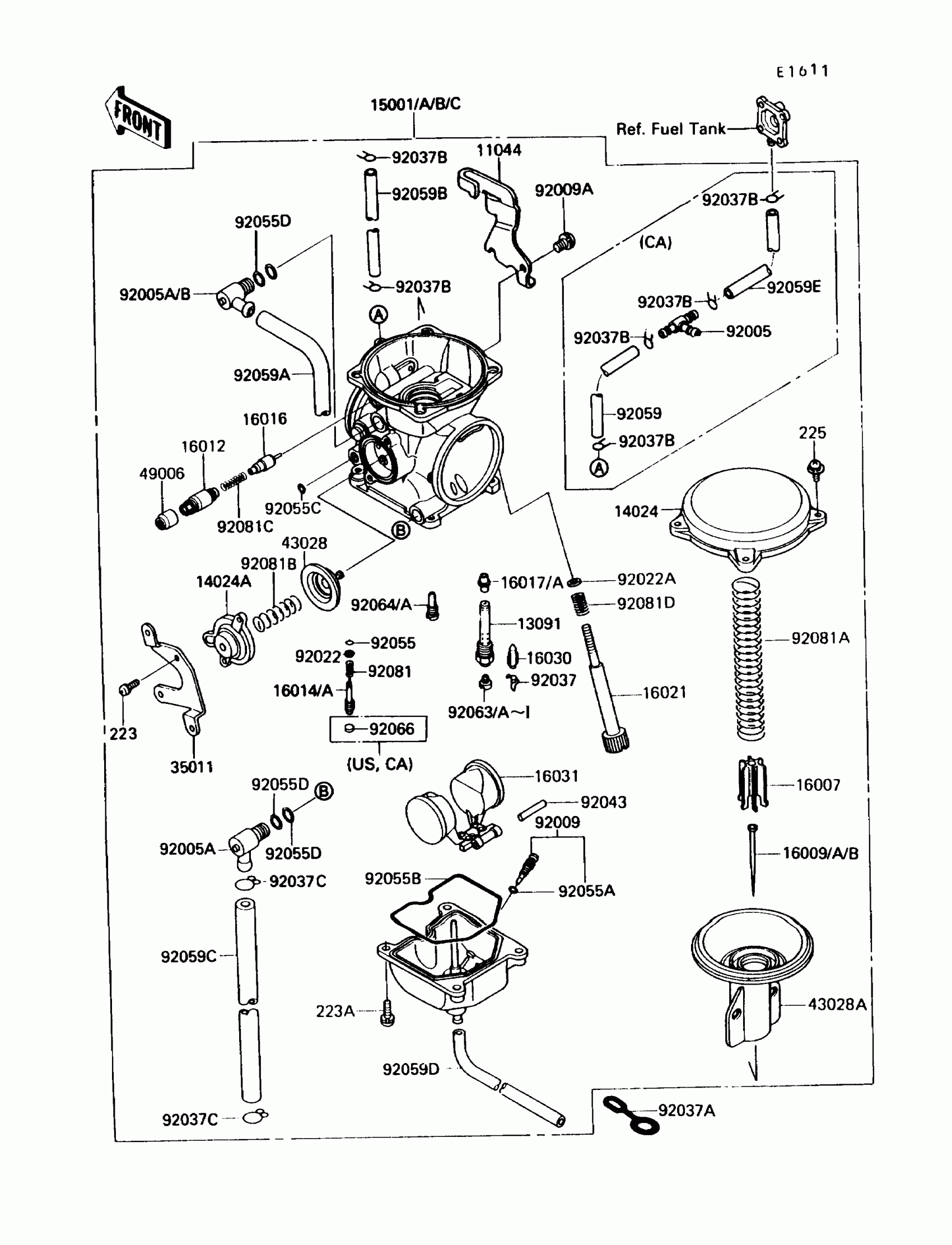

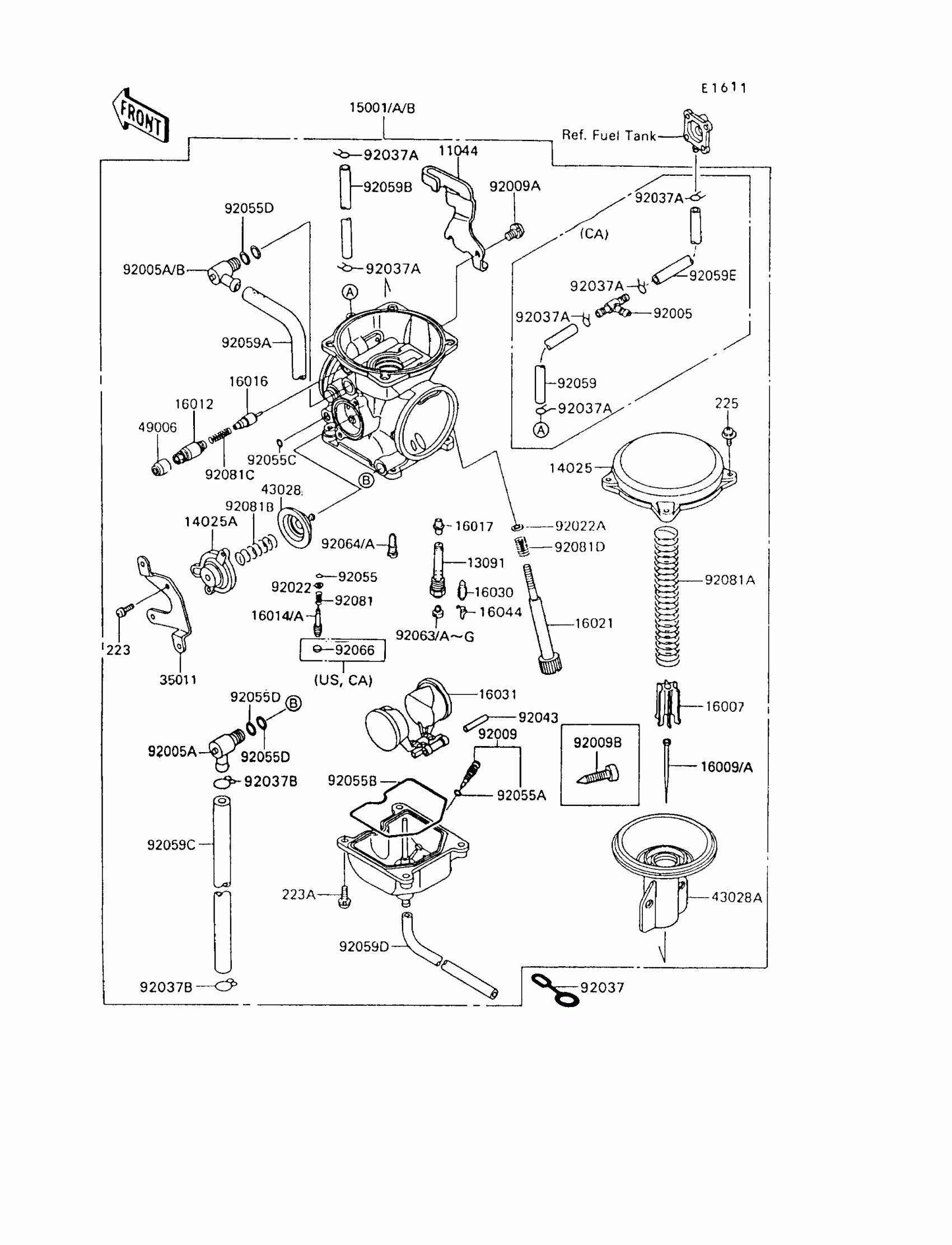

Kawasaki KLR650 Carburetor Diagram
#
11044
BRACKET,THROTTLE CABLE
11044-1353
$59.62
13091
HOLDER,NEEDLE JET
13091-1425
$29.68
14025
COVER,MIXING CHAMBER
14025-1890
$77.81
14025A
COVER,AIR CUT VALVE
14025-1903
$58.45
15001
CARBURETOR-ASSY
15001-1327
$677.82
15001A
CARBURETOR-ASSY
15001-1368
$617.10
15001B
CARBURETOR-ASSY
15001-1473
Unavailable
16007
SEAT-SPRING,DIAPHRAGM VALVE
16007-1113
$20.77
16009
NEEDLE-JET,N31R
16009-1344
$37.51
16009A
NEEDLE-JET,N74C
16009-1537
Unavailable
16012
CAP-STARTER PLUNGER
16012-1055
$27.48
16014
SCREW-PILOT AIR
16014-1053
$23.25
16014A
SCREW-PILOT AIR
16014-1061
$28.34
16016
PLUNGER
16016-1057
$55.84
16017
JET-NEEDLE,#6
16017-1254
Unavailable
16021
SCREW-THROTTLE STOP
16021-1109
$43.67
16030
VALVE-FLOAT
16030-1057
$47.13
16031
FLOAT
16031-1056
$53.59
16044
CLAMP,FLOAT VALVE
16044-007
$7.91
35011
STAY,AIR CUT VALVE
35011-1232
$37.45
43028
DIAPHRAGM,5.9MM,AIR CUT VALVE
43028-1053
Unavailable
43028A
DIAPHRAGM,VALVE
43028-1062
$210.38
49006
BOOT,STARTER PLUNGER
49006-1165
$10.00
92005
FITTING,FUEL,T-TYPE
92005-1112
$14.10
92005A
FITTING,L-TYPE
92005-1120
$28.64
92005A
FITTING,L-TYPE
92005-1120
$28.64
92005B
FITTING,L-TYPE
92005-1144
$37.40
92009
SCREW,DRAIN,M6X1.0
92009-1095
$14.92
92009A
SCREW,5X10
92009-1365
$7.34
92009B
SCREW,DRAIN,M6X0.75
92009-1551
$9.91
92022
WASHER,PLAIN
92022-1003
$4.31
92022A
WASHER,THROTTLE STOP SCREW
92022-1587
$5.00
92037
CLAMP,OVER FLOW PIPE
92037-134
$11.50
92037A
CLAMP,TUBE
92037-1477
$4.31
92037A
CLAMP,TUBE
92037-1477
$4.31
92037B
CLAMP,TUBE
92037-1531
$5.52
92043
PIN,FLOAT
92043-1207
$11.14
92055
RING-O,PILOT ADJUST
92055-1002
$4.31
92055A
RING-O
92055-1053
$4.69
92055B
RING-O,FLOAT CHAMBER
92055-1222
$17.44
92055C
RING-O
92055-1245
$5.57
92055D
RING-O
92055-1246
$4.50
92059
TUBE,5X9X120
92059-1713
$25.03
92059A
TUBE,6.5X9.5X430
92059-1727
$30.56
92059B
TUBE,5X9X220
92059-1836
$25.03
92059C
TUBE,6.5X11.5X170
92059-1837
$33.38
92059D
TUBE,3.5X6.5X390
92059-1838
Unavailable
92059E
TUBE,5X9X100
92059-1839
$8.34
92063
JET-MAIN,#140
92063-1013
$14.10
92063A
JET-MAIN,#142
92063-1016
$14.10
92063B
JET-MAIN,#145
92063-1017
$14.10
92063C
JET-MAIN,#145
92063-1017
$14.10
92063D
JET-MAIN,#148
92063-1324
$14.10
92063E
JET-MAIN,#148
92063-1324
$14.10
92063F
JET-MAIN,#150
92063-1330
$14.10
92063G
JET-MAIN,#152
92063-1331
$14.79
92064
JET-PILOT,#38
92064-1050
$19.04
92064A
JET-PILOT,#40
92064-1108
$17.03
92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
$5.05
92081
SPRING,PILOT ADJUST SCREW
92081-1002
$5.46
92081A
SPRING,DIAPHRAGM VALVE
92081-1718
$27.69
92081B
SPRING,AIR CUT VALVE
92081-1719
$12.62
92081C
SPRING,PLUNGER
92081-1720
$10.19
92081D
SPRING,THROTTLE STOP SCREW
92081-1721
$12.96
223
SCREW-PAN-WS-CROS,4X10
223C0410
$0.68
223A
SCREW-PAN-WS-CROS,4X16
223C0416
$4.12
225
SCREW-PAN-WSP-CROS,4X18
225C0418
$4.01
