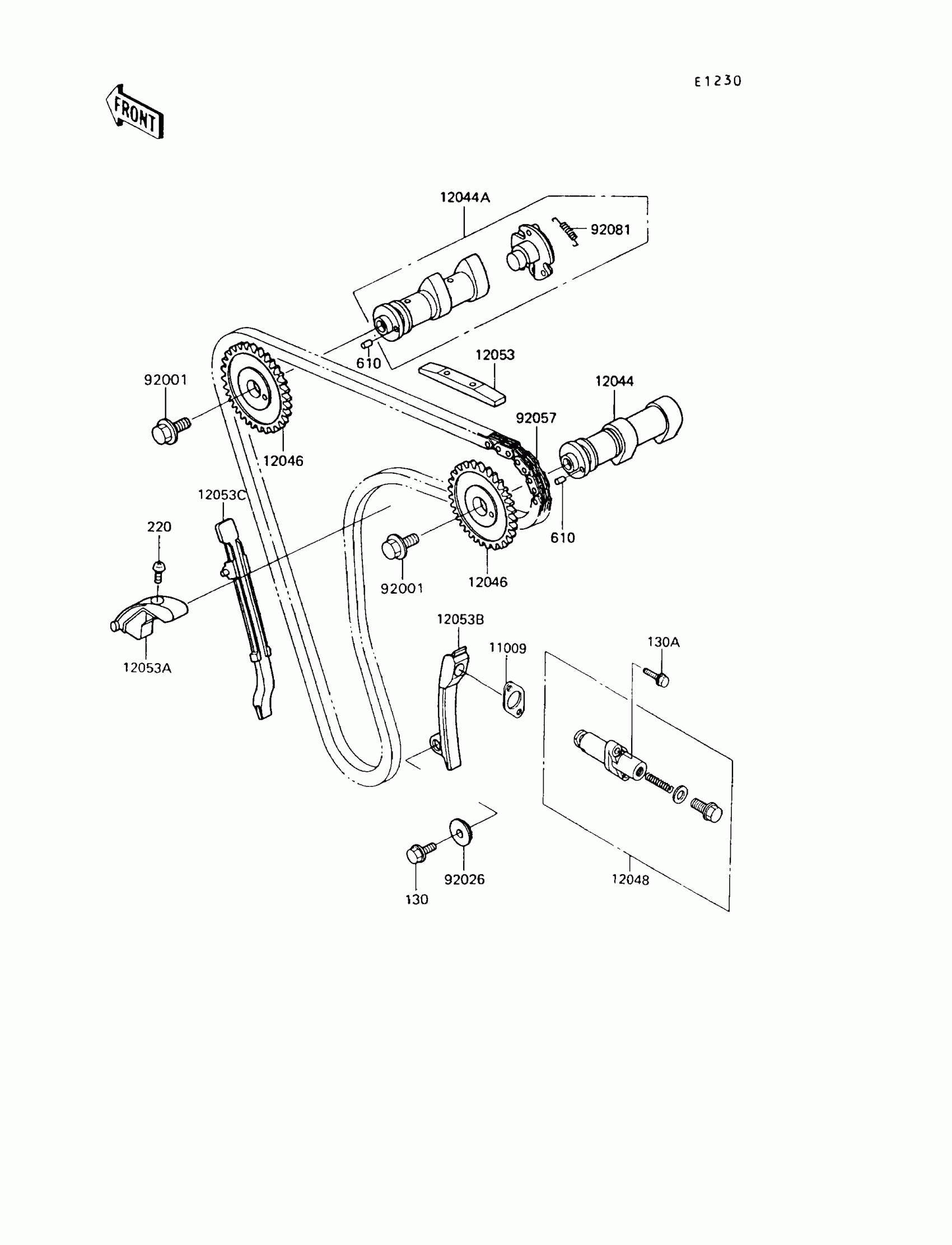

Kawasaki KLR650 Camshaft(s)/Tensioner Diagram

Description

Price

11009

GASKET,TENSIONER

11009-1858

$4.61

12044

CAMSHAFT-VALVE,INTAKE

12044-1114

Unavailable

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1197

Unavailable

12046

SPROCKET,CAMSHAFT,48T

12046-1062

Unavailable

12048

TENSIONER-ASSY

12048-1086

$146.79

12053

GUIDE-CHAIN,UPP

12053-1107

$19.45

12053A

GUIDE-CHAIN,LWR

12053-1134

$21.09

12053B

GUIDE-CHAIN,RR

12053-1222

$77.85

12053C

GUIDE-CHAIN,FR

12053-1223

$44.98

92001

BOLT,10X23

92001-1859

$9.91

92026

SPACER

92026-1146

$8.58

92057

CHAIN,CAM,75RH2015-174L

92057-1226

$149.49

92081

SPRING,DECOMPRESSOR

92081-1626

$4.96

130

BOLT-FLANGED,8X25

130G0825

$2.89

130A

BOLT-FLANGED,6X25

130J0625

$2.62

220

SCREW-PAN-CROS,6X14

220B0614

$1.48

610

ROLLER,4X10

610A0410

$4.31
