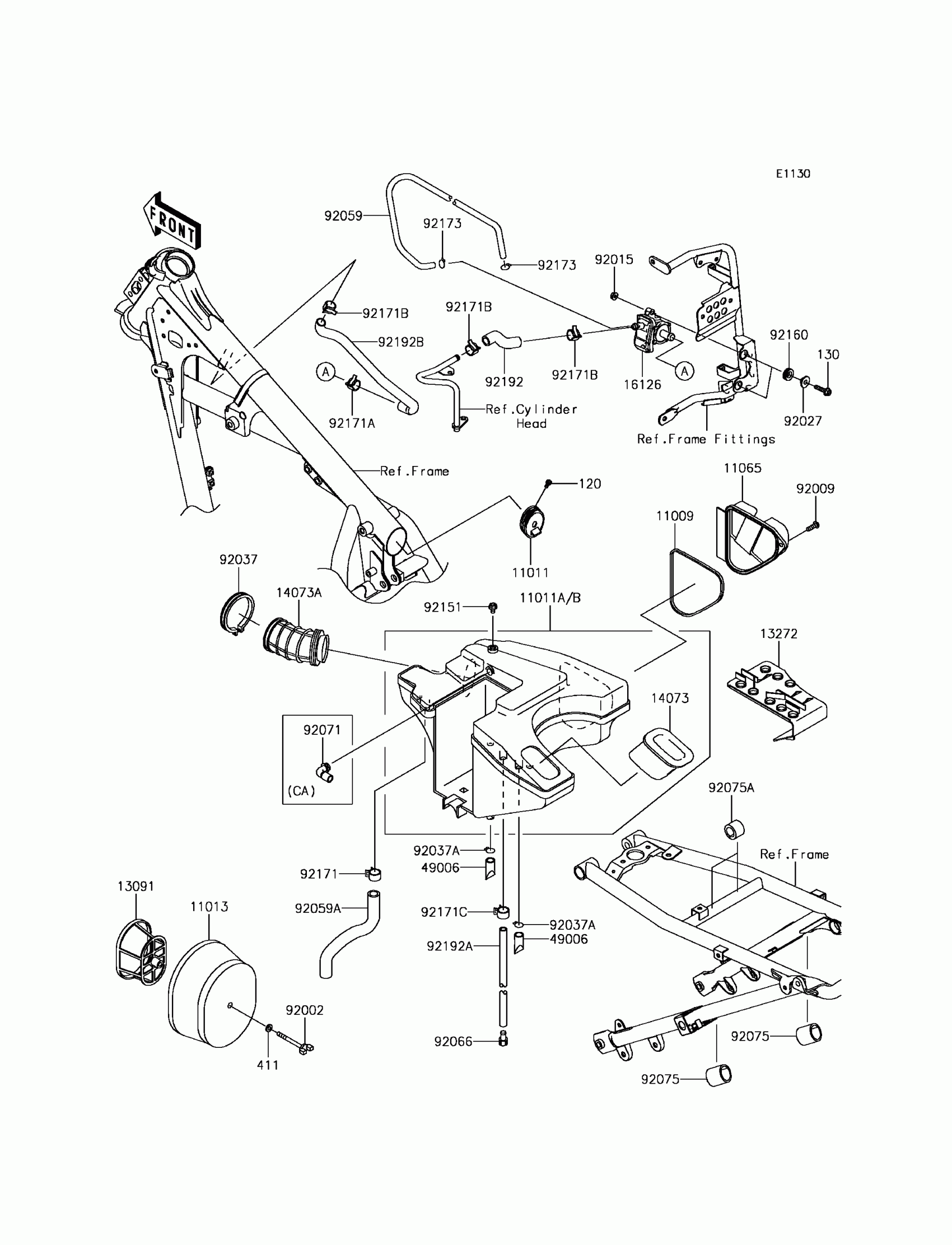

Kawasaki KLR650 Air Cleaner Diagram

#

Description
Price

120

BOLT-SOCKET,5X8

120CA0508

$2.33

130

BOLT-FLANGED,6X25

130BA0625

$1.20

411

WASHER-PLAIN,6MM

411AA0600

$2.92

11009

GASKET

11009-1649

$12.15

11011

CASE-AIR FILTER

11011-0095

$21.13

11013

ELEMENT-AIR FILTER

11013-1152

$25.29

11065

CAP,AIR FILTER

11065-1133

$24.44

13091

HOLDER

13091-1473

$29.14

13272

PLATE

13272-0598

$40.81

14073

DUCT

14073-0119

$32.44

14073A

DUCT

14073-1288

$32.00

16126

VALVE,2ND AIR

16126-0026

$113.04

49006

BOOT

49006-1211

$6.63

92002

BOLT

92002-1904

$9.91

92009

SCREW

92009-1460

$3.21

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92027

COLLAR,L=7.4

92027-1848

$4.69

92037

CLAMP

92037-1859

$8.66

92037A

CLAMP,14.5MM

92037-1900

$4.87

92059

TUBE,4X9X550,WHITE

92059-1760

$19.45

92059A

TUBE

92059-1774

$32.25

92066

PLUG,DRAIN,8.5X15

92066-0127

$8.37

92075

DAMPER,25X31X30

92075-1906

$6.57

92075A

DAMPER,18X27X20

92075-1907

$5.98

92151

BOLT,6X10

92151-1344

$2.46

92160

DAMPER

92160-1278

$4.39

92171

CLAMP

92171-0329

$8.89

92171A

CLAMP,16MM

92171-0976

$3.42

92171B

CLAMP,15MM

92171-1600

$9.76

92171C

CLAMP,12MM

92171-1870

$6.63

92173

CLAMP

92173-1190

$2.55

92192

TUBE,ASV-HEAD,YELLOW

92192-0323

$121.47

92192A

TUBE,8X12X380

92192-0883

$13.61

92192B

TUBE,FRAME-ASV,PINK

92192-0905

$25.40

11011A

CASE-AIR FILTER

11011-0159

$260.61

11011B

CASE-AIR FILTER

11011-0160

$205.93

92071

GROMMET,AIR FILTER

92071-1147

$21.80
