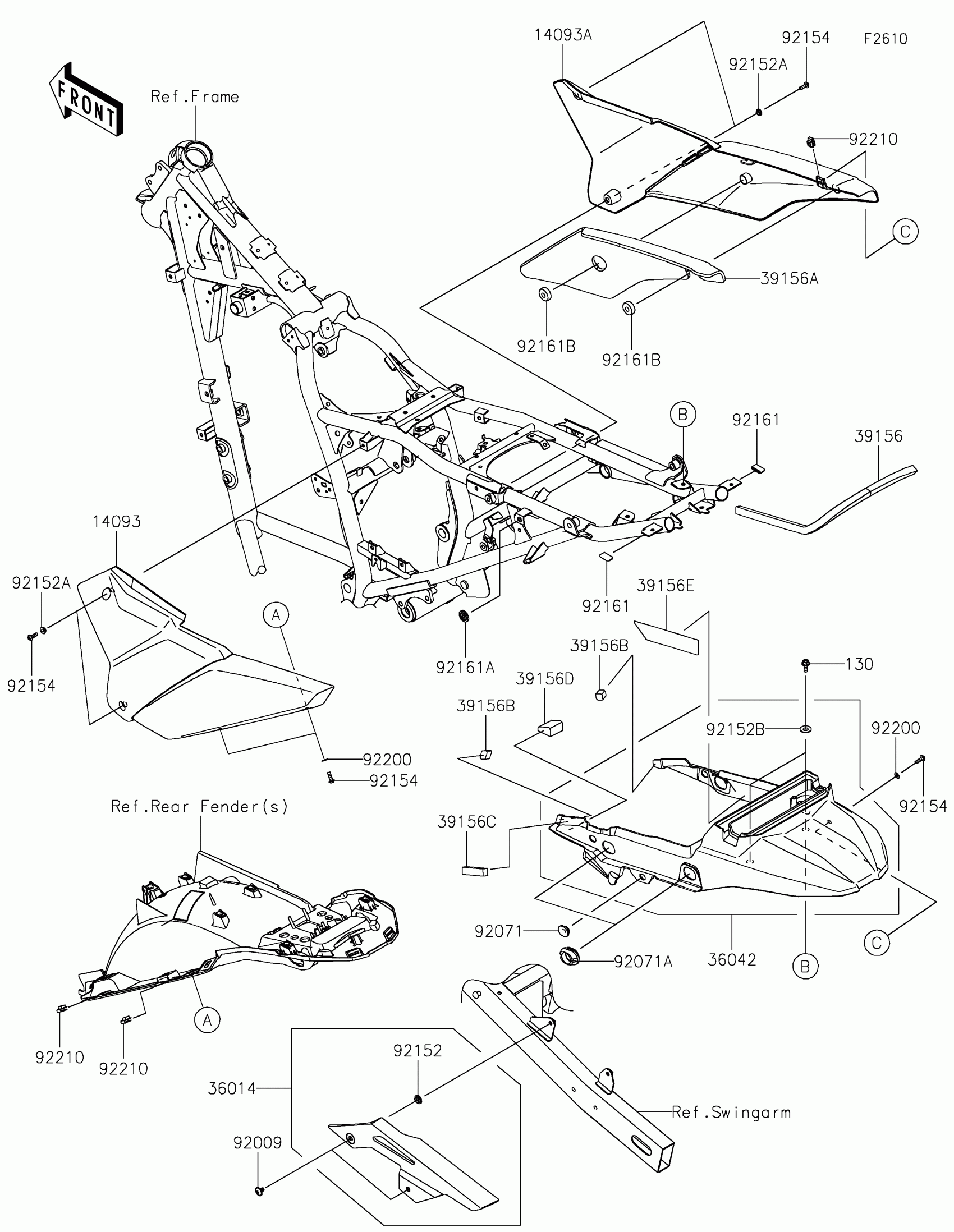

Kawasaki KLR650 Adventure ABS Side Covers/Chain Cover Diagram

Description

Price

14093

COVER,SIDE,LH,BLACK

14093-1275-6Z

$115.66

14093A

COVER,SIDE,RH,BLACK

14093-1276-6Z

$129.24

36014

CASE-CHAIN

36014-0044

$17.48

36042

COVER-TAIL,BLACK

36042-0015-6Z

$276.30

39156

PAD,10X13X440

39156-2663

$10.53

39156A

PAD,SIDE COVER,RH

39156-2682

$53.13

39156B

PAD

39156-2750

$1.47

39156C

PAD,10X13X62

39156-2763

$2.00

39156D

PAD

39156-2764

$6.82

39156E

PAD,TAIL COVER

39156-2780

$6.55

92009

SCREW,6X10

92009-1729

$0.22

92071

GROMMET,20X24X7.5

92071-0766

$1.41

92071A

GROMMET,26.4X42.4X15.8

92071-0772

$2.68

92152

COLLAR,8.8X11.2X4

92152-0909

$5.65

92152A

COLLAR

92152-2903

$3.86

92152B

COLLAR

92152-2907

$4.32

92154

BOLT,SOCKET,5X16

92154-0182

$2.55

92161

DAMPER,12X23

92161-1367

$1.19

92161A

DAMPER,8X22X10

92161-1685

$0.88

92161B

DAMPER

92161-2090

$5.11

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86

92210

NUT,PLATE,5MM

92210-0935

$1.97

130

BOLT-FLANGED,6X16

130BA0616

$1.20
