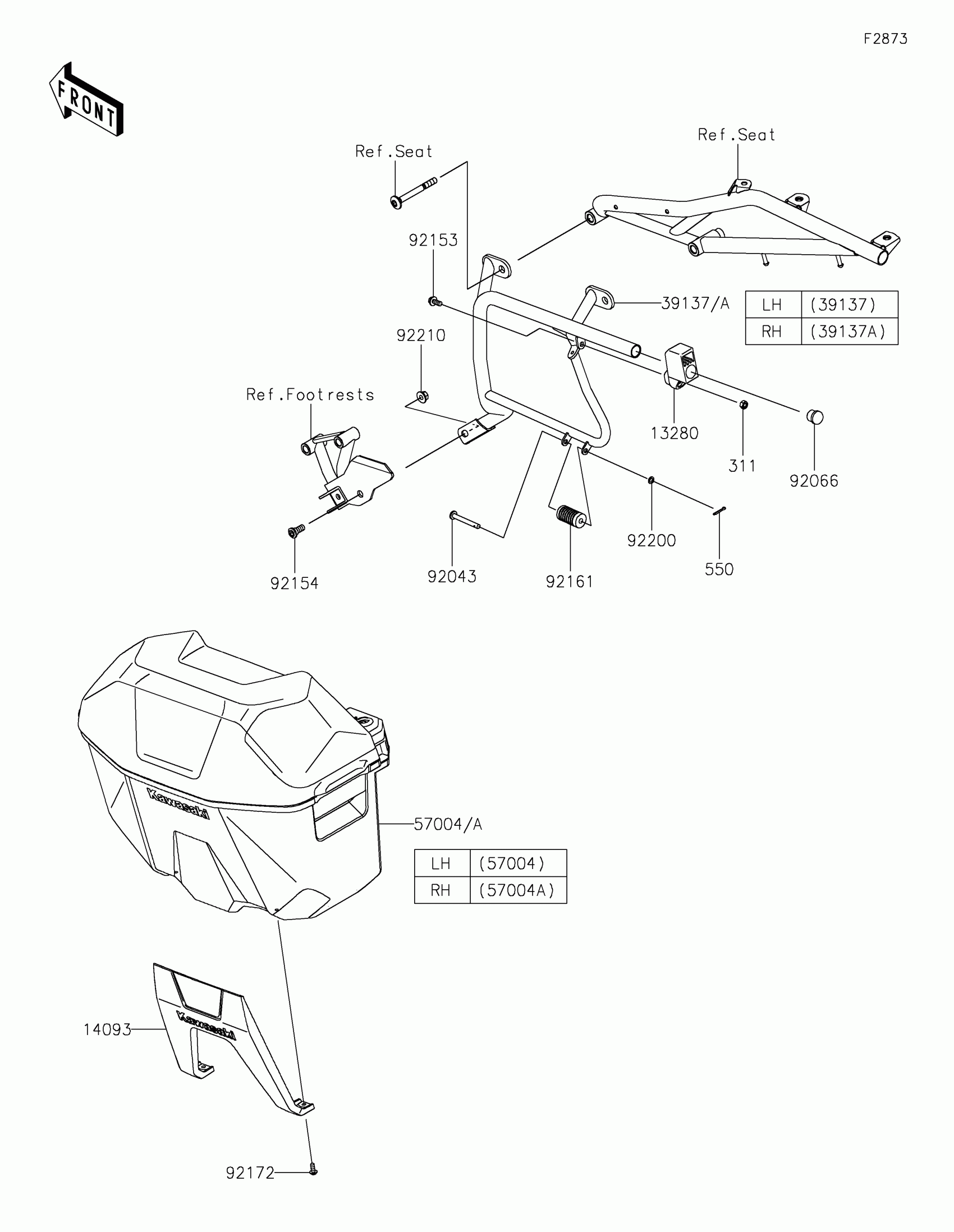

Kawasaki KLR650 Adventure ABS Saddlebags Diagram

Description

Price

13280

HOLDER,PANNIER

13280-1314

$37.40

14093

COVER,PANNIER,M.P.SILVER

14093-1068-GU

$165.33

39137

STAY-COMP,LH

39137-0738

$76.56

39137A

STAY-COMP,RH

39137-0739

$76.56

57004

BAG-ASSY,PANNIER,LH

57004-0023

$338.98

57004A

BAG-ASSY,PANNIER,RH

57004-0024

$350.67

92043

PIN,6X44.5

92043-1110

$5.11

92066

PLUG

92066-1484

Unavailable

92153

BOLT,FLANGED,6X14

92153-1571

$2.15

92154

BOLT,SOCKET8X20

92154-1711

$1.97

92161

DAMPER

92161-2401

$7.71

92172

SCREW,SOCKET,5X14

92172-0823

$0.85

92200

WASHER,6.2X10X1

92200-1465

$1.59

92210

NUT,FLANGED,8MM

92210-0304

$3.39

311

NUT-HEX,6MM

311BA0600

$2.23

550

PIN-COTTER,2.0X15

550AA2015

$1.12
