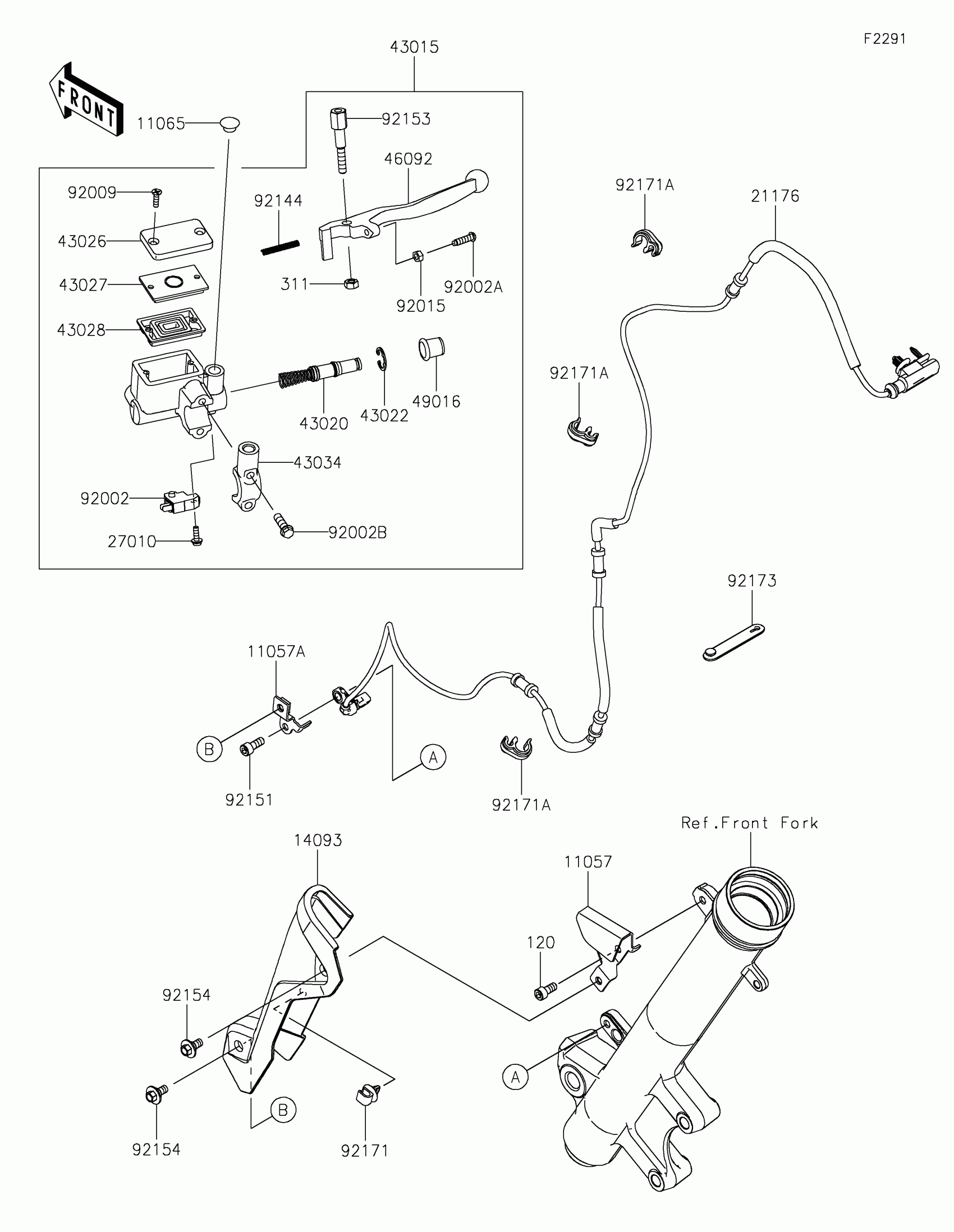

Kawasaki KLR650 Adventure ABS Front Master Cylinder Diagram

Description

Price

11057

BRACKET,ABS SENSOR COVER

11057-4375

$4.36

11057A

BRACKET,SPEED SENSOR

11057-4376

$4.36

11065

CAP,DUMMY

11065-0921

$5.60

14093

COVER,ABS SENSOR

14093-0863

$5.03

21176

SENSOR,SPEED,FR

21176-0994

$265.60

27010

SWITCH,BRAKE

27010-0762

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0788

$306.54

43020

PISTON-COMP-BRAKE

43020-1104

$52.21

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1082

$20.87

43027

PLATE-DIAPHRAGM

43027-1057

$4.13

43028

DIAPHRAGM

43028-1061

$16.18

43034

HOLDER-BRAKE

43034-0145

$19.45

46092

LEVER-GRIP,FRONT BRAKE

46092-1175

$21.91

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

BOLT,SCREW,4X12

92002-1323

$3.92

92002A

BOLT,ADJUST

92002-1893

$7.45

92002B

BOLT

92002-1894

$5.52

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,ADJUST

92015-1642

$3.92

92144

SPRING,RETURN

92144-1103

$9.43

92151

BOLT

92151-1166

$2.26

92153

BOLT,LEVER SET

92153-0790

$19.22

92154

BOLT,FLANGED,6X9

92154-0546

$3.74

92171

CLAMP

92171-0640

$3.90

92171A

CLAMP,BRAKE HOSE

92171-1819

$5.54

92173

CLAMP

92173-2199

$1.48

120

BOLT-SOCKET,6X14

120CA0614

$4.10

311

NUT-HEX,6MM

311BB0600

$1.04
