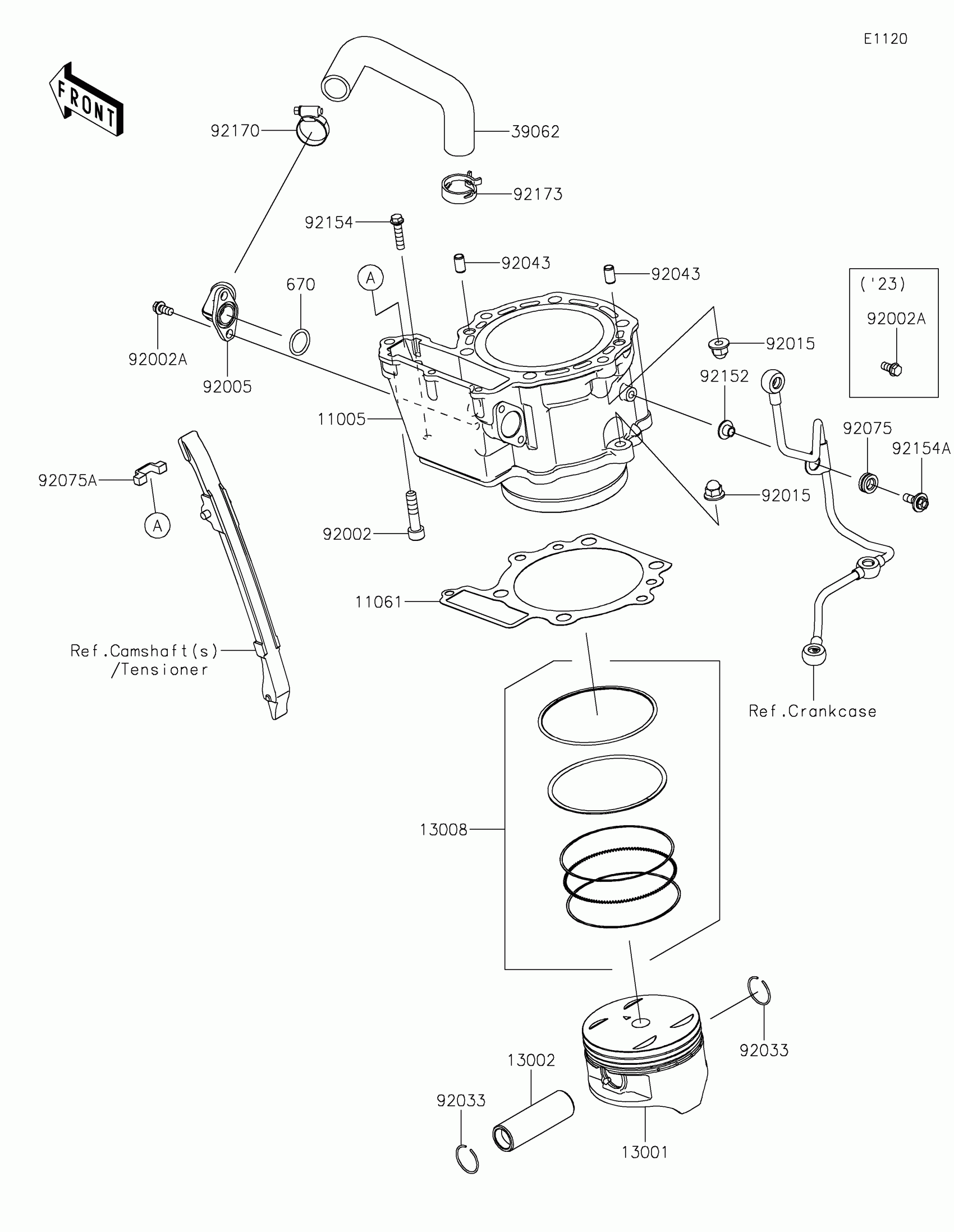

Kawasaki KLR650 Adventure ABS Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-0736

$1,033.28

11061

GASKET,CYLINDER BASE

11061-0428

$14.49

13001

PISTON-ENGINE

13001-0723

$192.40

13002

PIN-PISTON

13002-0707

$66.73

13008

RING-SET-PISTON

13008-0595

$59.08

39062

HOSE-COOLING,W/P-CYLINDER

39062-0150

$30.76

92002

BOLT,SOCKET,8X35

92002-1409

$5.52

92002A

BOLT,6X12

92002-1569

Unavailable

92005

FITTING

92005-0784

$21.09

92015

NUT,CAP,8MM

92015-1982

$5.00

92033

RING-SNAP

92033-1226

$3.89

92043

PIN,6.2X8X14

92043-1263

$0.43

92075

DAMPER

92075-1947

$7.33

92075A

DAMPER

92075-1968

$5.52

92152

COLLAR,6.3X8.3X7.6

92152-2133

$4.65

92154

BOLT,FLANGED,6X25

92154-1212

$3.02

92154A

BOLT,FLANGED,6X18

92154-3994

$0.88

92170

CLAMP,COOLING HOSE

92170-1033

$15.16

92173

CLAMP

92173-2459

$3.27

670

O RING,18MM

670B2018

$1.42
