2025 Kawasaki KLR650 Adventure ABS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

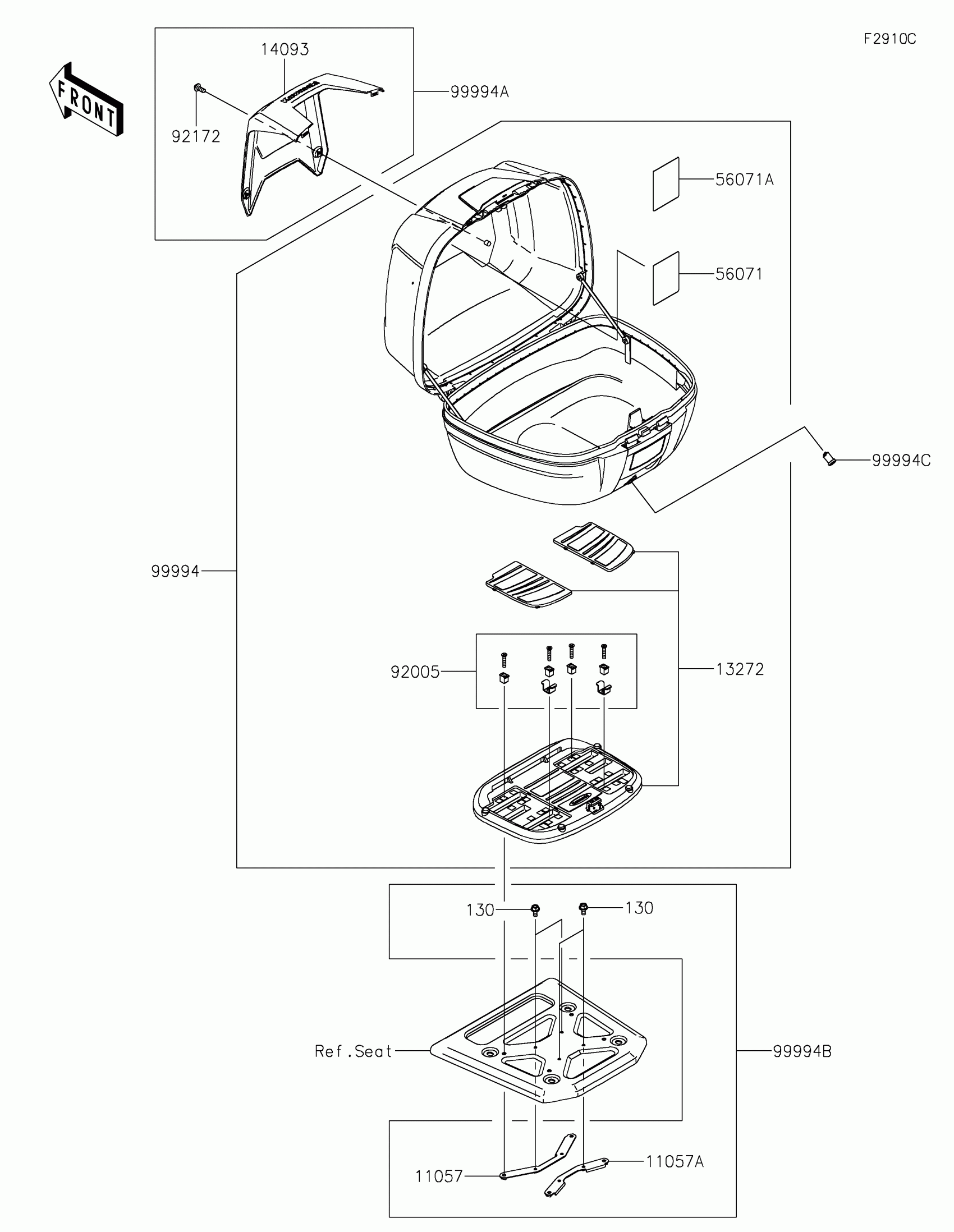

2025 Kawasaki KLR650 Adventure ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-7099

1
Out of stock

11057A

BRACKET

11057-7100

1
Out of stock

13272

PLATE,TOPCASE BASE

13272-3743

1
Out of stock

14093

COVER,TOPCASE,M.P.SILVER

14093-1067-GU

1
Out of stock

56071

LABEL-WARNING,MAX LOAD

56071-0940

1
Out of stock

56071A

LABEL-WARNING,PICTOGRAM

56071-1043

1
Out of stock

92005

FITTING

92005-1428

1
Out of stock

92172

SCREW,SOCKET,5X14

92172-0823

1
Out of stock

99994

TOPCASE

99994-1493

1
Out of stock

99994A

PANEL-TOPCASE,M.P.SILVER

99994-1494-GU

1
Out of stock

99994B

FITTING-TOPCASE

99994-1495

1
Out of stock

99994C

ROTOR(INNER GROOVE)

99994-1496

1
Out of stock

130

BOLT-FLANGED,5X10

130BA0510

1

$1.47

In stock
