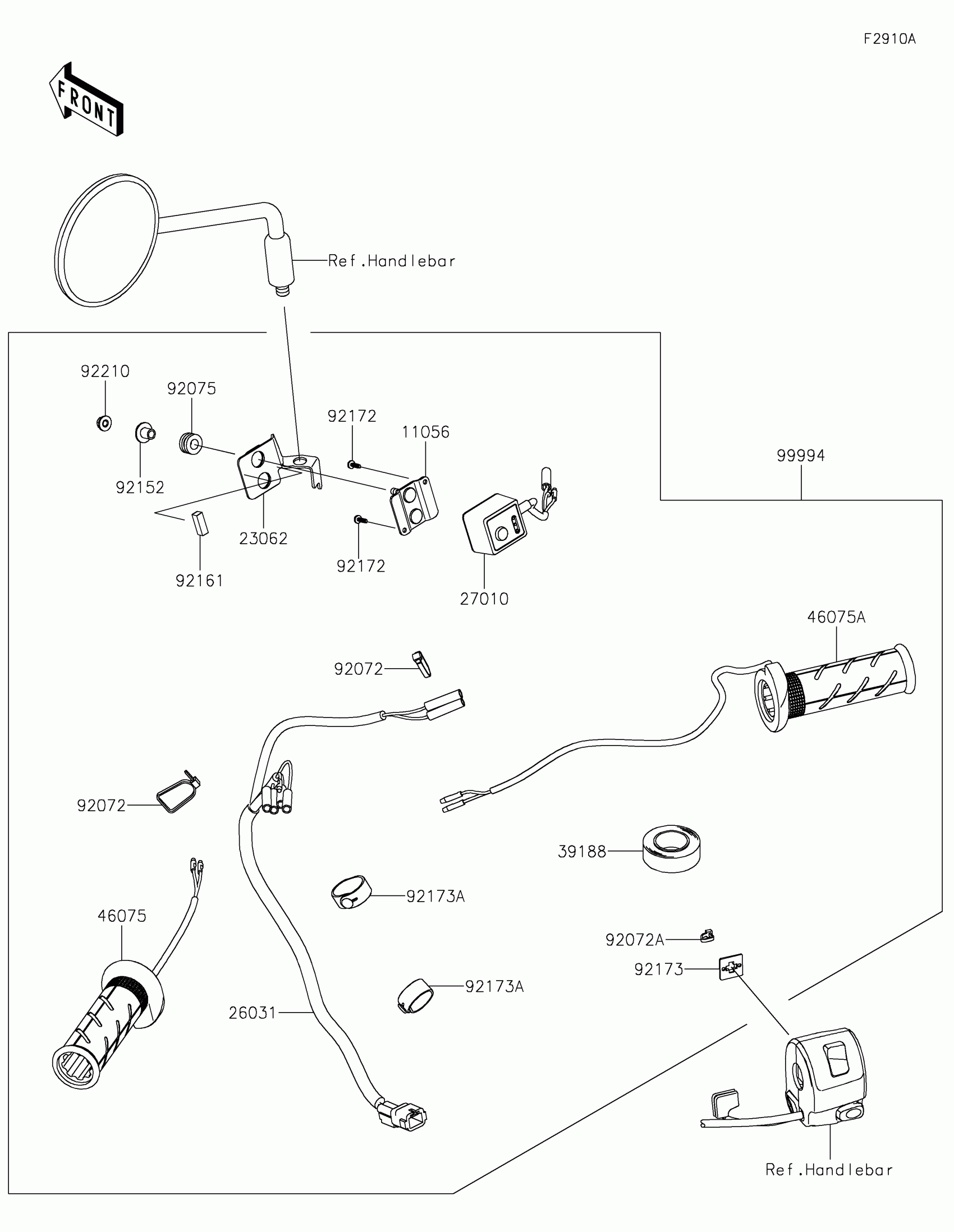

Kawasaki KLR650 Adventure ABS Accessory(Grip Heater) Diagram

Description

Price

11056

BRACKET

11056-7296

$35.53

23062

BRACKET-COMP

23062-1325

$5.69

26031

HARNESS

26031-3876

$40.41

27010

SWITCH,HEATED-GRIP,HONDA-ACCES

27010-0126

$237.69

39188

TAPE,HARNESS

39188-0006

$10.12

46075

GRIP,HEATER,LH

46075-0599

$121.77

46075A

GRIP,HEATER,RH

46075-0600

$121.77

92072

BAND,L=152

92072-3874

Unavailable

92072A

BAND,L=100

92072-3875

$3.71

92075

DAMPER

92075-1912

$5.07

92152

COLLAR

92152-0134

$7.54

92161

DAMPER

92161-1756

$1.88

92172

SCREW,TAPPING,3X10

92172-0351

$1.17

92173

CLAMP

92173-0812

$1.88

92173A

CLAMP

92173-2194

$1.56

92210

NUT,FLANGED,5MM

92210-0007

$2.20

99994

GRIP HEATER

99994-1501

$243.62
