Description

Price

11009

GASKET,TAIL LAMP

11009-1371

$13.57

11009A

GASKET,LICENSE PLATE LAMP

11009-1372

$4.65

11036

BRACKET,LICENSE PLATE

11036-1040

Unavailable

11043

BRACKET,LICENSE PLATE LAMP

11043-1497

Unavailable

23008

SOCKET-ASSY,LICENSE PLATE LAMP

23008-1205

$20.12

23016

LAMP-ASSY,LICENSE PLATE

23016-1057

$72.93

23025

LAMP-TAIL

23025-1103

$121.68

23026

LENS,TAIL LAMP

23026-1053

$45.43

23026A

LENS,LAMP

23026-1054

$9.28

23027

BODY-COMP-TAIL-LAMP

23027-1052

$121.68

92001

BOLT,UPSET-WP,6X22

92001-1774

$3.65

92002

BOLT,6X16

92002-1124

Unavailable

92009

SCREW,TAPPING,4X20

92009-1297

$4.18

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92027

COLLAR 6.8X10X10.5

92027-120

$5.00

92069

BULB,12V 27/8W

92069-059

$8.12

92069A

BULB,12V 8W

92069-1012

$5.18

92075

DAMPER,CASE

92075-222

$7.34

220

SCREW PAN HEAD 4X10

220B0410

$2.30

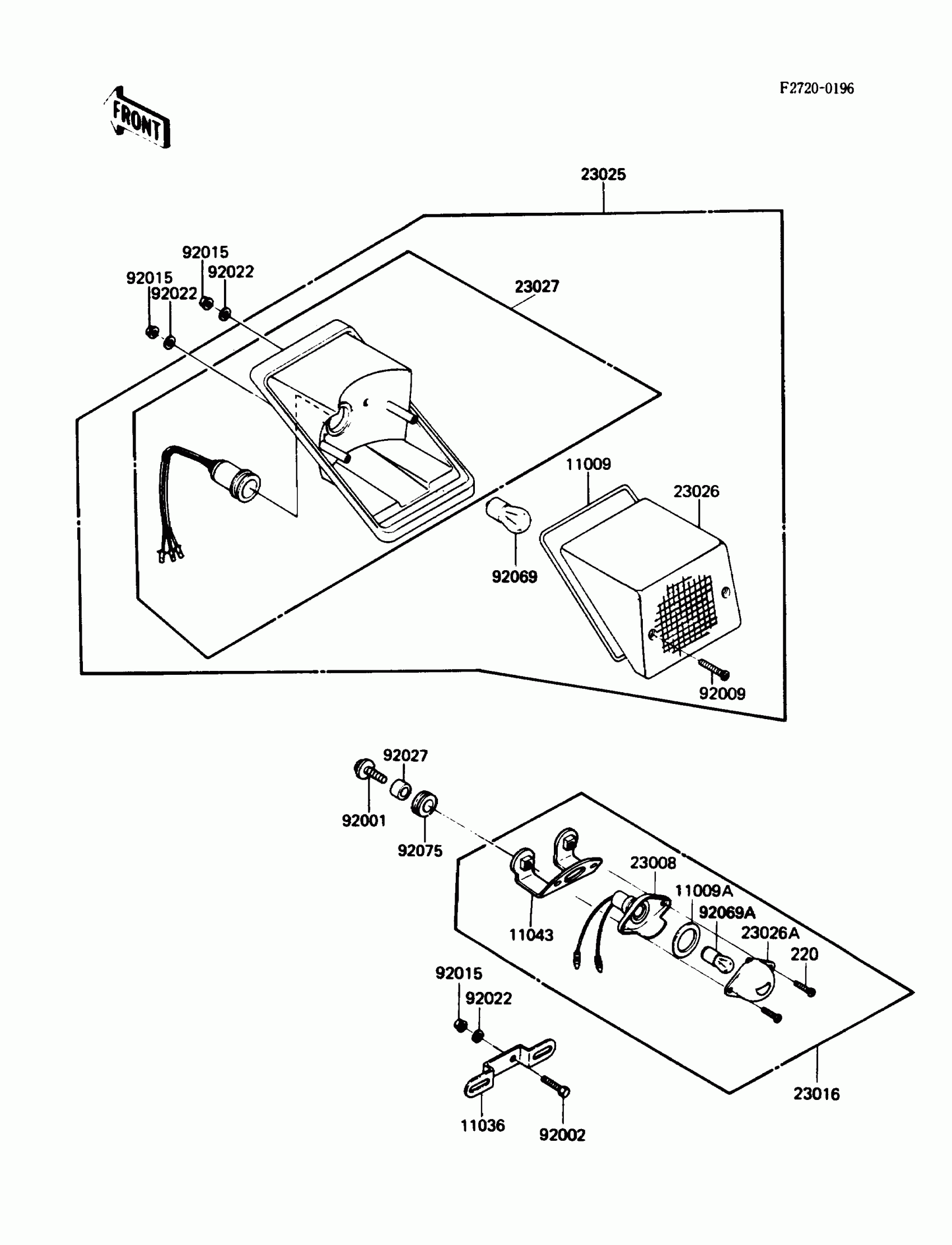

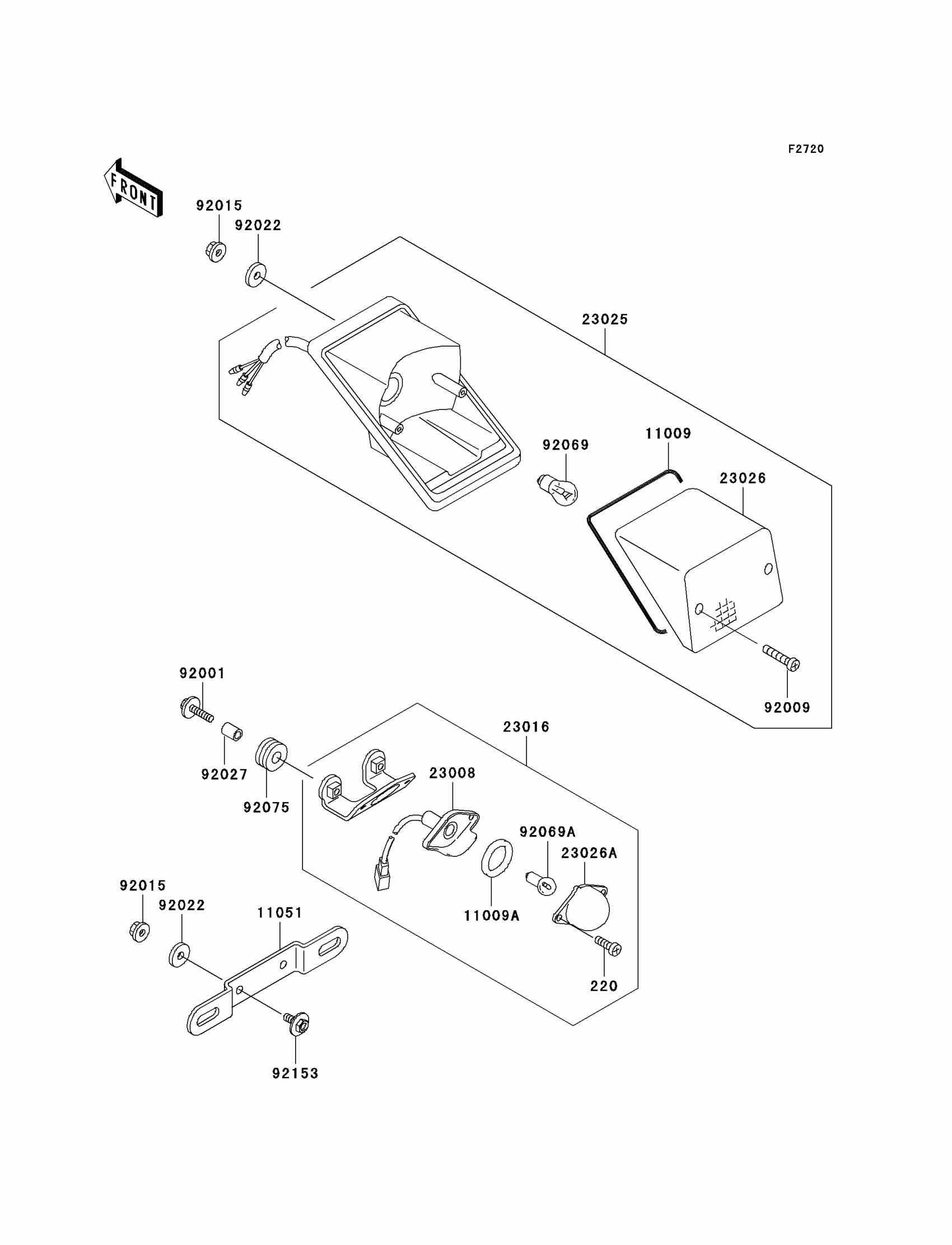

Kawasaki KLR250 Taillight(s) Diagram

GASKET,TAIL LAMP

GASKET,LICENSE PLATE LAMP

BRACKET,LICENSE PLATE

BRACKET,LICENSE PLATE LAMP

SOCKET-ASSY,LICENSE PLATE LAMP

LAMP-ASSY,LICENSE PLATE

LAMP-TAIL

LENS,TAIL LAMP

LENS,LAMP

BODY-COMP-TAIL-LAMP

BOLT,UPSET-WP,6X22

BOLT,6X16

SCREW,TAPPING,4X20

NUT,FLANGED,6MM

WASHER,6.5X20X1.6

COLLAR 6.8X10X10.5

BULB,12V 27/8W

BULB,12V 8W

DAMPER,CASE

SCREW PAN HEAD 4X10
