Description

Price

11009

GASKET,EXHAUST PIPE

11009-1428

Unavailable

11009A

GASKET,6.2X11.5X1.5

11009-1451

Unavailable

11009B

GASKET,EXHAUST PIPE CONNECTING

11009-1634

Unavailable

18002

BODY-COMP-MUFFLER

18002-1540

Unavailable

18002A

BODY-COMP-MUFFLER

18002-1740

$617.71

18018

PLATE-HEAT GUARD

18018-1055

$36.51

18049

PIPE-EXHAUST

18049-1461

$167.01

18069

HOLDER-EXHAUST PIPE

18069-1058

$49.26

49099

BAFFLE-PIPE MUFFLER

49099-1219

$97.19

49106

COVER-MUFFLER

49106-1052

$52.38

49107

COVER-EXHAUST PIPE

49107-1057

$72.14

92009

SCREW,6X6.7

92009-1054

$3.16

92015

NUT

92015-1331

Unavailable

92015A

NUT,8MM

92015-1402

$4.69

92037

CLAMP

92037-1604

$21.00

92075

DAMPER RUBB MAIN STND

92075-005

$4.31

130

BOLT-FLANGED,8X30

130J0830

$4.15

130A

BOLT-FLANGED,8X40

130J0840

$4.37

220

SCREW PAN HEAD 6X10

220B0610

$3.14

223

SCREW-PAN-WS-CROS

223C0610

$4.12

461

WASHER SPRING 6MM

461F0600

$0.69

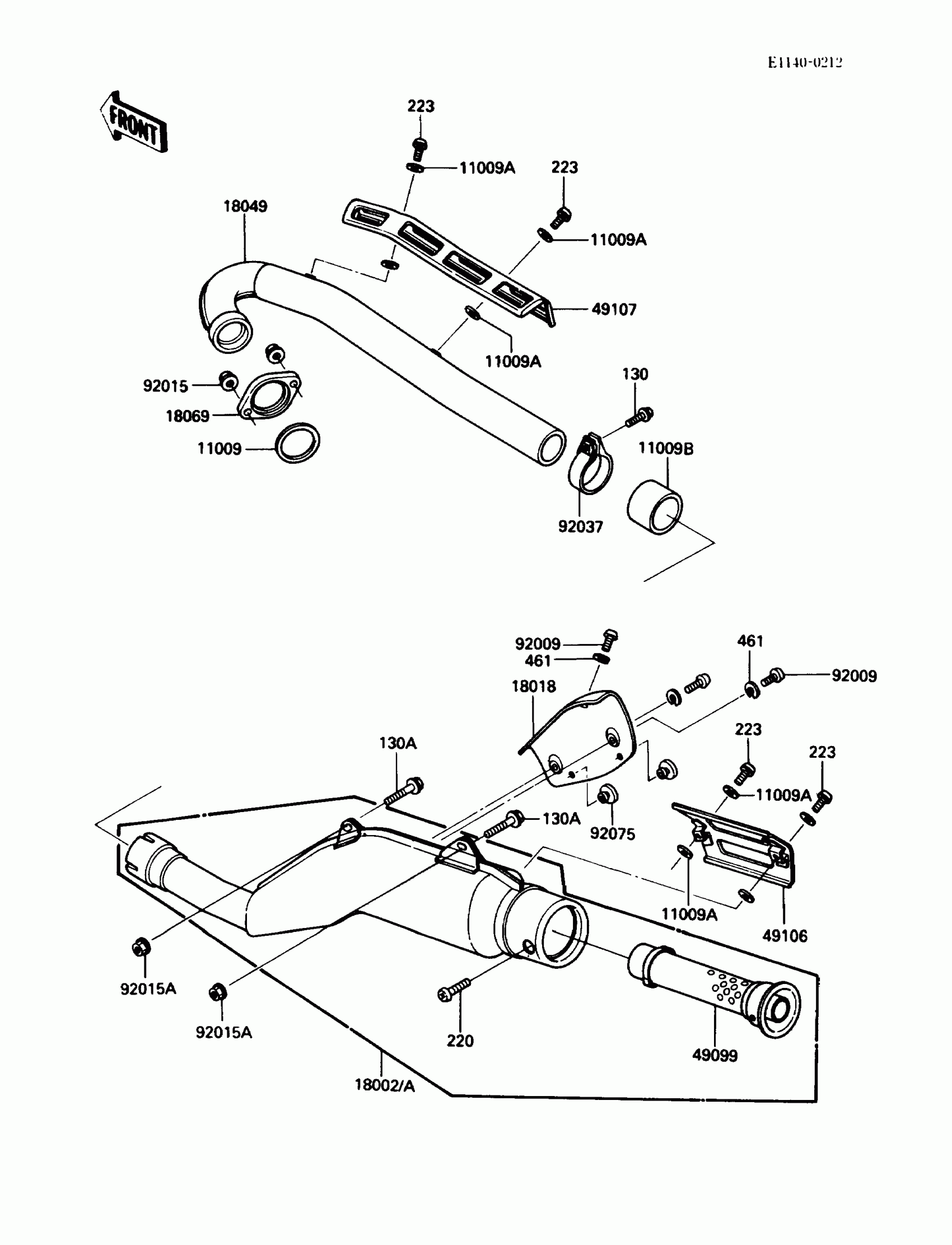

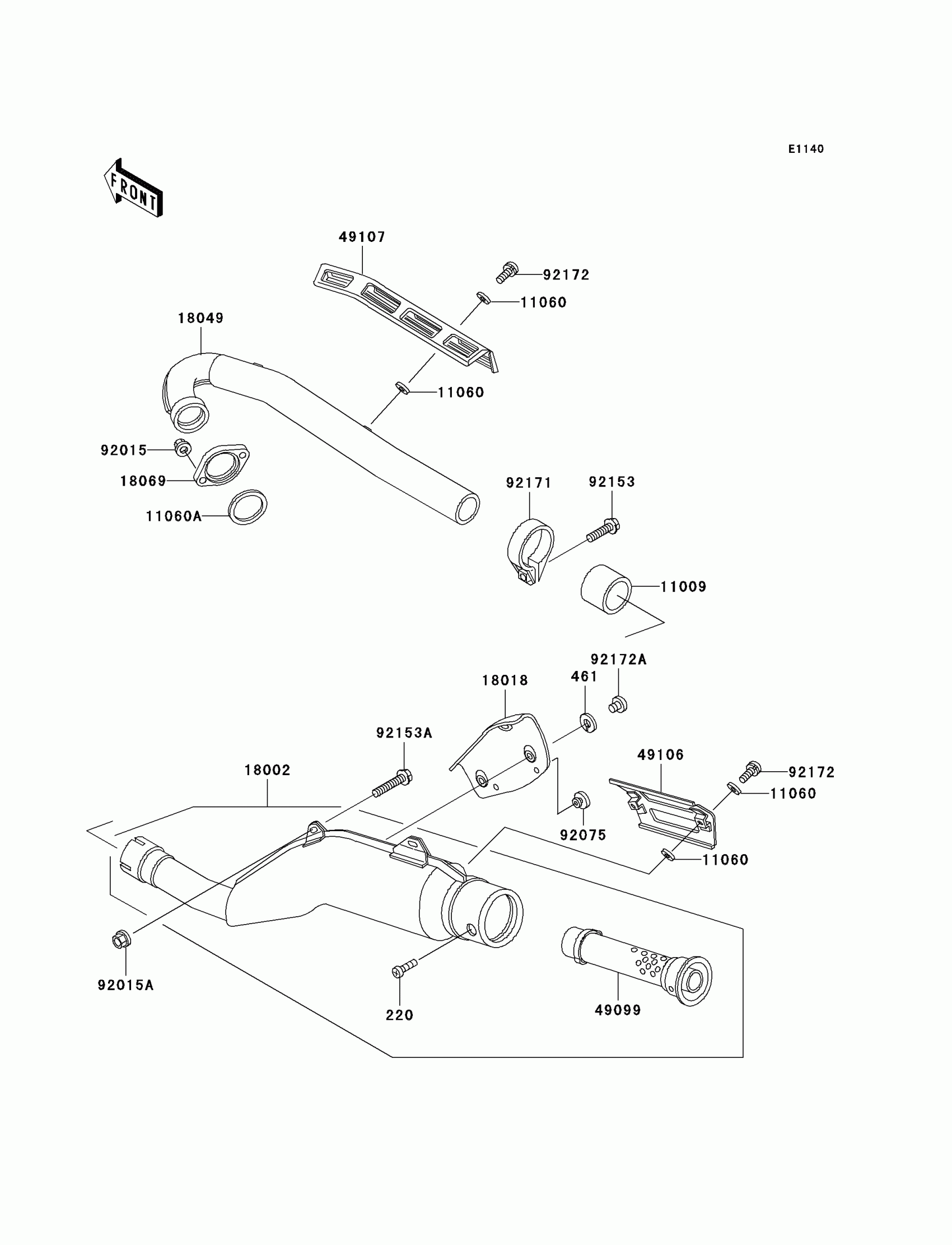

Kawasaki KLR250 Muffler(s) Diagram

GASKET,EXHAUST PIPE

GASKET,6.2X11.5X1.5

GASKET,EXHAUST PIPE CONNECTING

BODY-COMP-MUFFLER

BODY-COMP-MUFFLER

PLATE-HEAT GUARD

PIPE-EXHAUST

HOLDER-EXHAUST PIPE

BAFFLE-PIPE MUFFLER

COVER-MUFFLER

COVER-EXHAUST PIPE

SCREW,6X6.7

NUT

NUT,8MM

CLAMP

DAMPER RUBB MAIN STND

BOLT-FLANGED,8X30

BOLT-FLANGED,8X40

SCREW PAN HEAD 6X10

SCREW-PAN-WS-CROS

WASHER SPRING 6MM
