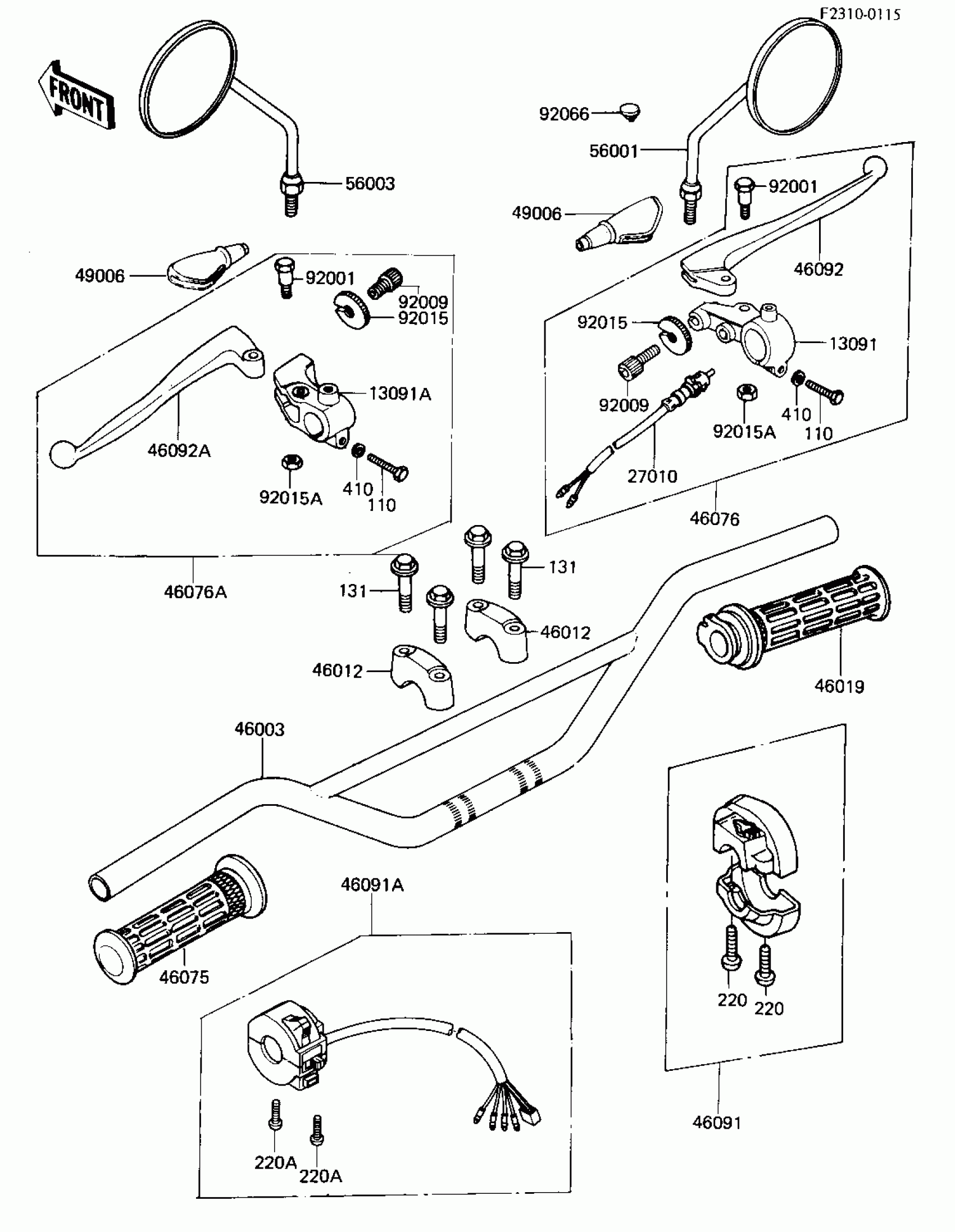

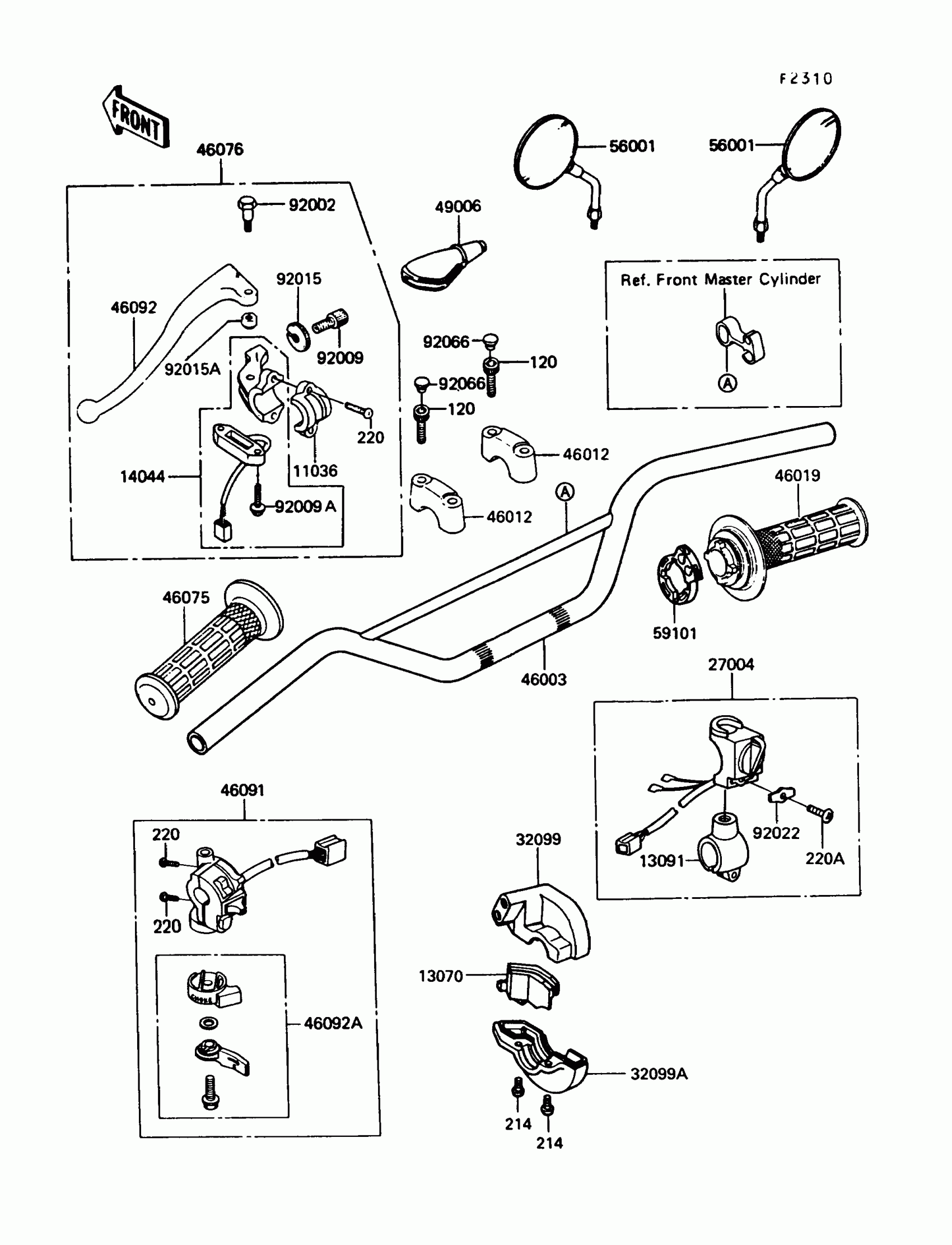

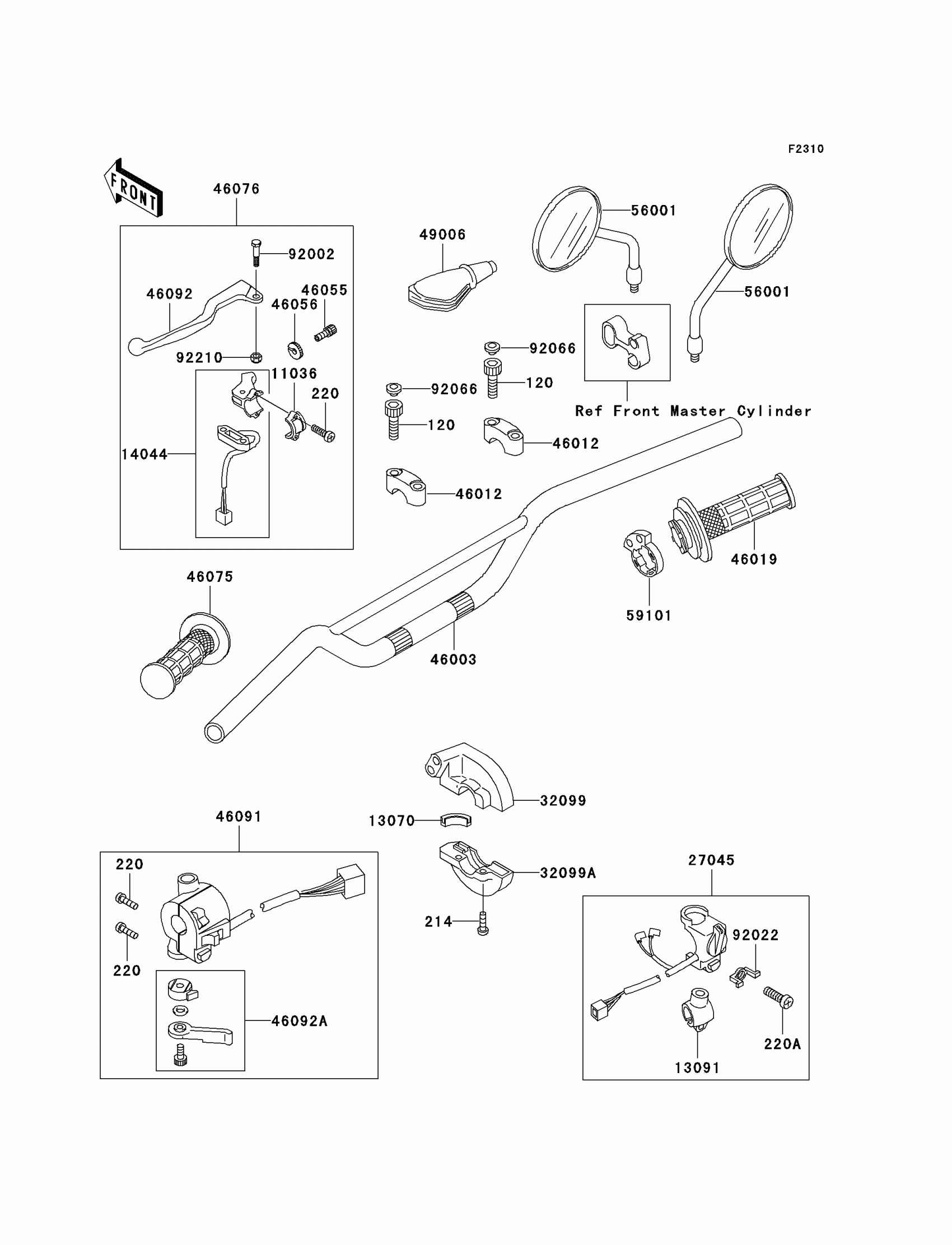

Kawasaki KLR250 Handlebar Diagram
#
Description
Price
11036
BRACKET-A,LEVER HOLDER
11036-1297
Unavailable
13070
GUIDE,THROTTLE PEACE
13070-1131
$9.13
13091
HOLDER,ENGINE STOP SWITCH
13091-1255
$73.59
14044
HOLDER-CABLE,CLUTCH
14044-1052
$75.60
27004
SWITCH-ASSY,ENGINE STOP
27004-1056
$88.91
32099
CASE,THROTTLE,UPP
32099-1072
$34.47
32099A
CASE,THROTTLE,LWR
32099-1073
$34.47
46003
HANDLE
46003-1174
$119.97
46012
HOLDER-HANDLE,UPP
46012-1102
$28.76
46019
GRIP-ASSY,THROTTLE
46019-1054
$35.69
46075
GRIP,LH
46075-1051
$26.90
46076
LEVER-ASSY-GRIP,CLUTCH
46076-1129
$50.83
46091
HOUSING-ASSY-CONTROL,LH
46091-1309
$203.52
46092
LEVER-GRIP,CLUTCH
46092-1111
Unavailable
46092A
LEVER-GRIP,CHOKE
46092-1123
$18.08
49006
BOOT,LEVER HOLDER
49006-1099
$19.04
56001
MIRROR-ASSY
56001-1204
$51.09
59101
REEL,THROTTLE
59101-1106
$15.74
92002
BOLT,LEVER SET
92002-1475
$8.21
92009
SCREW,CABLE ADJUST,8MM
46055-009
$19.07
92009A
SCREW,TAPPING
92009-1336
Unavailable
92015
NUT,CABLE ADJUST
46056-006
$8.94
92015A
NUT,LOCK,6MM,BLACK
92015-1191
Unavailable
92022
WASHER,ENGINE STOP SWITCH
92022-1474
$22.14
92066
PLUG
92066-1216
$4.65
120
BOLT-SOCKET,8X30
120S0830
$4.37
214
SCREW-PAN+-,5X18
214C0518
$3.69
220
SCREW-PAN-CROS
220C0514
$1.81
220A
SCREW-PAN-CROS, 6X20
220C0620
$1.47
