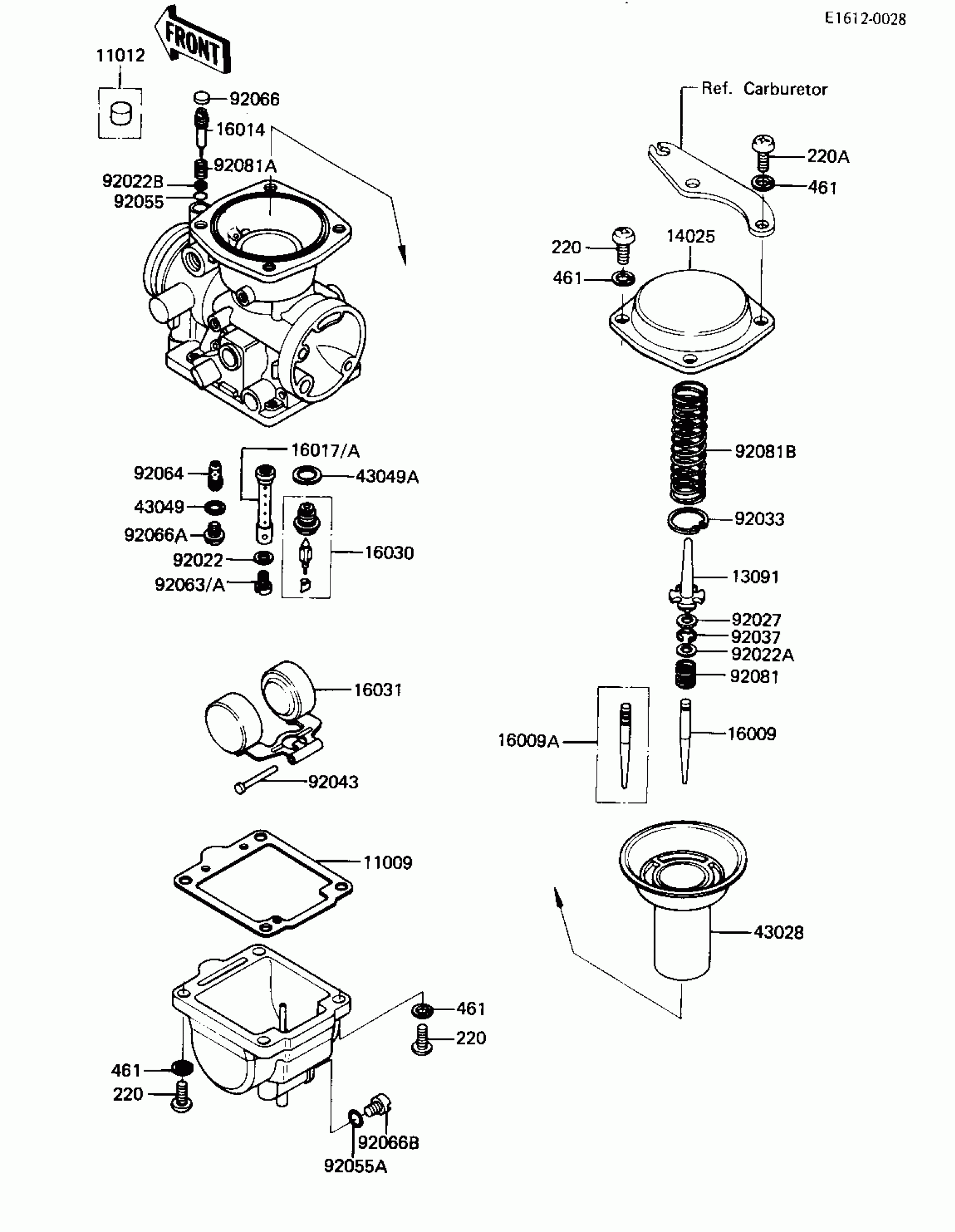

Kawasaki KLR250 CARBURETOR PARTS Diagram

#

Description
Price

1

COVER,DIAPHRAGM

14025-1216

Unavailable

2

DIAPHRAGM ASSY,CARBU

43028-1020

$339.50

3

SPRING,DIAPHRAGM

92081-1230

$21.07

4

HOLDER,JET NEEDLE

13091-1026

Unavailable

5

CIRCLIP

92033-1009

Unavailable

6

RING,JET NEEDLE

92027-1115

Unavailable

7

CLAMP,E-TYPE

16008-014

$9.34

8

WASHER,JET NEEDLE

92022-1123

Unavailable

9

SPRING,JET NEEDLE

92081-1126

$8.19

10

JET NEEDLE,#5FN45

16009-1072

$23.27

10-1

JET NEEDLE,#5FN46

16009-1073

$24.63

10-1

JET NEEDLE,5FN48

16009-1080

$30.68

11

GASKET,FLOAT CHAMBER

11009-1184

Unavailable

12

PILOT JET,#A42.5

92064-1029

$22.90

13

PACKING

43049-1009

$3.75

14

PLUG,

92066-1058

$2.68

15

MAIN JET,#A137.5

92063-1087

Unavailable

15

MAIN JET NO 135R

92063-104

Unavailable

16

WASHER,MAIN JET

16034-001

$3.57

17

NEEDLE JET #AY-2

16017-1068

$32.51

17

NEEDLE JET,#Y-8

16017-1078

$33.95

18

FLOAT,

16031-1012

Unavailable

19

PACKING,FLOAT VALVE

43049-1014

Unavailable

20

PIN,FLOAT

16032-008

$5.95

21

FLOAT VALVE ASSY

16030-1012

$78.96

22

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$4.01

22-1

CAP THROTTLE ADJUSTER

16037-002

Unavailable

23

UNAVAILABLE IN PRICE BOOK

214B0516A

Unavailable

24

WASHER SPRING 5MM

461F0500

Unavailable

25

SCREW,PILOT AIR ADJST

16014-1027

Unavailable

26

SCREW-PAN-CROS

220B0514

Unavailable

27

WASHER SPRING 5MM

461F0500

Unavailable

28

SPRING,PILOT SCREW

92081-1216

Unavailable

29

WASHER,ADJUST SCREW

92022-1187

$5.42

30

RING-O,ADJUST SCREW

92055-1078

$4.45

31

"0" RING,DRAIN PLUG

92055-1093

$7.49

32

PLUG,DRAIN

92066-1070

$9.10
