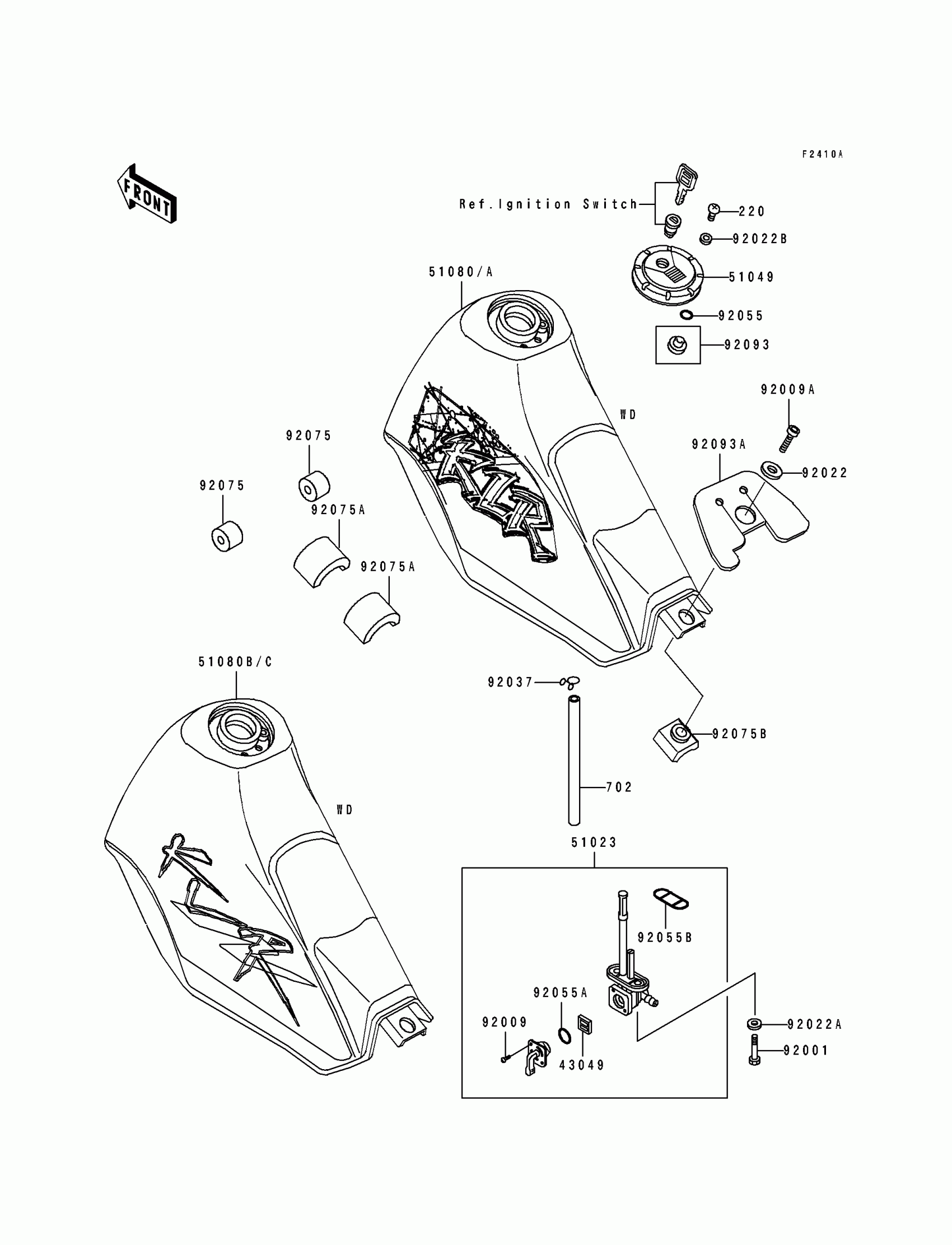

Kawasaki KLR250 Fuel Tank(KL250-D11/D12/D13/D14) Diagram

Description

Price

43049

PACKING,FUEL TAP LEVER

43049-1017

$5.54

51023

TAP-ASSY,FUEL

51023-1112

$132.70

51049

CAP-TANK,FUEL

51049-1077

$110.78

51080B

TANK-COMP-FUEL,F.B.GREEN

51080-5347-5X

$672.91

51080C

TANK-COMP-FUEL,F.B.GREEN

51080-5348-5X

Unavailable

92001

BOLT,6X20

92001-1091

$2.99

92009

SCREW,3X5

92009-1123

$0.54

92009A

SCREW,6X8

92009-1294

Unavailable

92022

WASHER,6.2X38X1.2

92022-1659

$4.61

92022A

WASHER-PLAIN

92022-183

$2.99

92022B

WASHER,5.1X10X1.0

92022-1977

$2.76

92037

CLAMP

92037-1610

$1.42

92055

RING-O

92055-1023

$2.99

92055A

RING-O,FUEL TAP LEVER

92055-1111

$3.81

92055B

RING-O,FUEL TAP PACKING

92055-1112

$3.81

92075

DAMPER,FUEL TANK

92075-125

$4.67

92075A

DAMPER,FUEL TANK

92075-1382

$25.64

92075B

DAMPER,FUEL TANK

92075-1638

Unavailable

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92093A

SEAL,FUEL TANK

92093-1182

$29.90

220

SCREW-PAN-CROS,5X10

220D0510

Unavailable

702

TUBE-RUBBER,5X750

702A05750

$21.78
