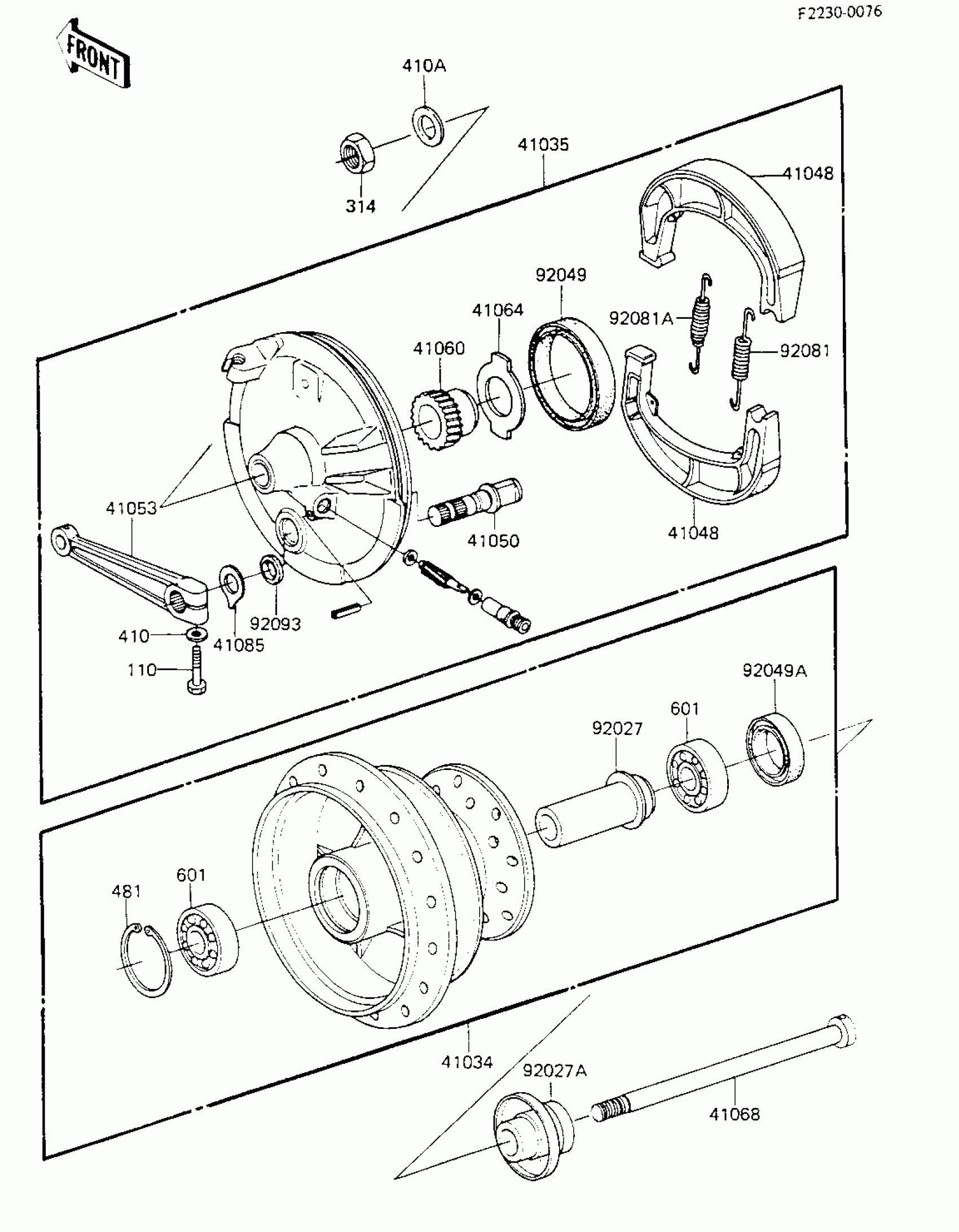

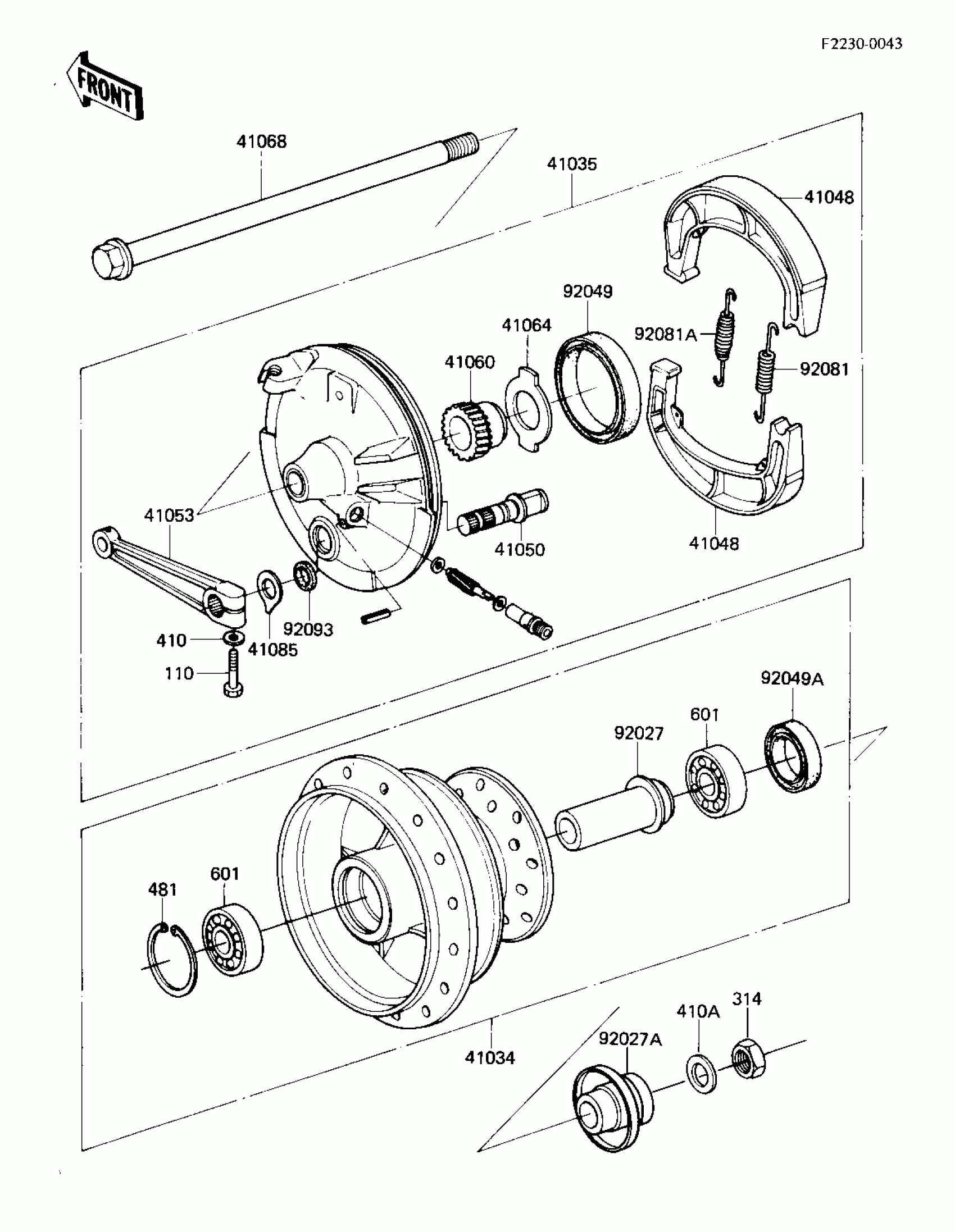

Kawasaki KLR250 FRONT HUB/BRAKE Diagram

#

Description
Price

41034

DRUM-ASSY,FR BRK

41034-1014

$207.84

41035

PANEL-ASY,FR BRK

41035-1045

$230.88

41048

SHOE,BRAKE

41048-015

Unavailable

41050

CAM,BRAKE,FRONT

41050-1010

$19.61

41053

LEVER,BRAKE FRONT

41053-1012

$55.38

41060

GEAR,SPEEDOMETER,24T

41060-1017

$10.66

41064

RECIEVER-SPEED GEAR

41064-006

$8.46

41068

AXLE,REAR

41068-1037

$72.88

41085

INDICATOR,BRAKE SHOE

41085-1003

$12.36

92027

COLLAR,FR BRAKE DRUM

92027-1097

$15.39

92027A

COLLAR,FRONT AXLE

92027-1098

Unavailable

92049

OIL SEAL F BRK PANEL

92050-010

$20.51

92049A

OIL SEAL,FR BK DRUM

92050-059

$19.25

92081

SPRING,BRAKE SHOE

92081-1766

$6.13

92081A

SPRING,BRAKE SHOE

92081-1550

$9.20

92093

SEAL,BRAKE CAM

41051-001

$3.25

110

BOLT-UPSET

112G0625

Unavailable

314

NUT-HEX-FINE

314B1200

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

410A

WASHER-PLAIN-SMALL,12MM

410B1200

Unavailable

481

CIRCLIP-TYPE-C,37MM

481J3700

$2.04

601

BEARING BALL #6301

601B6301

Unavailable
