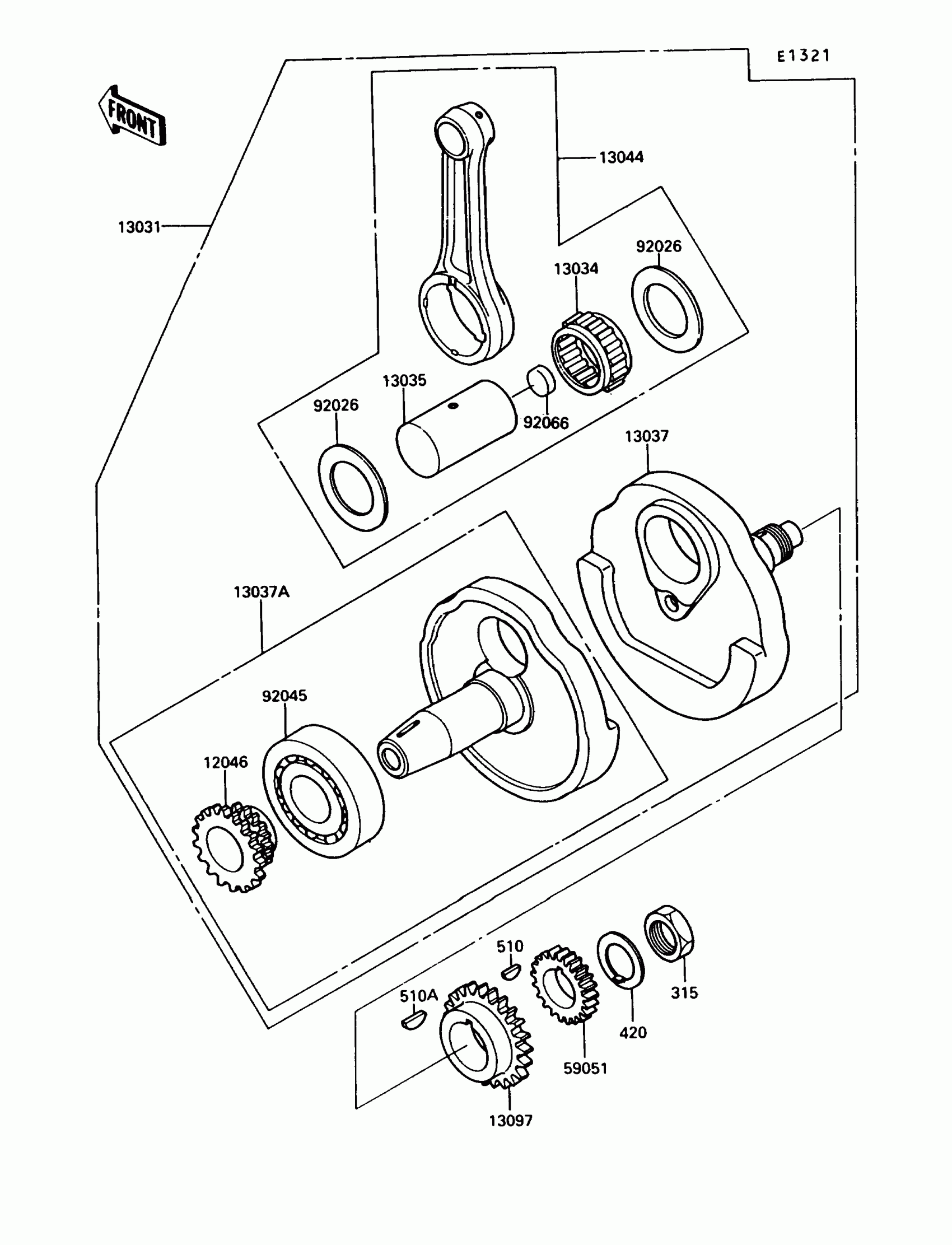

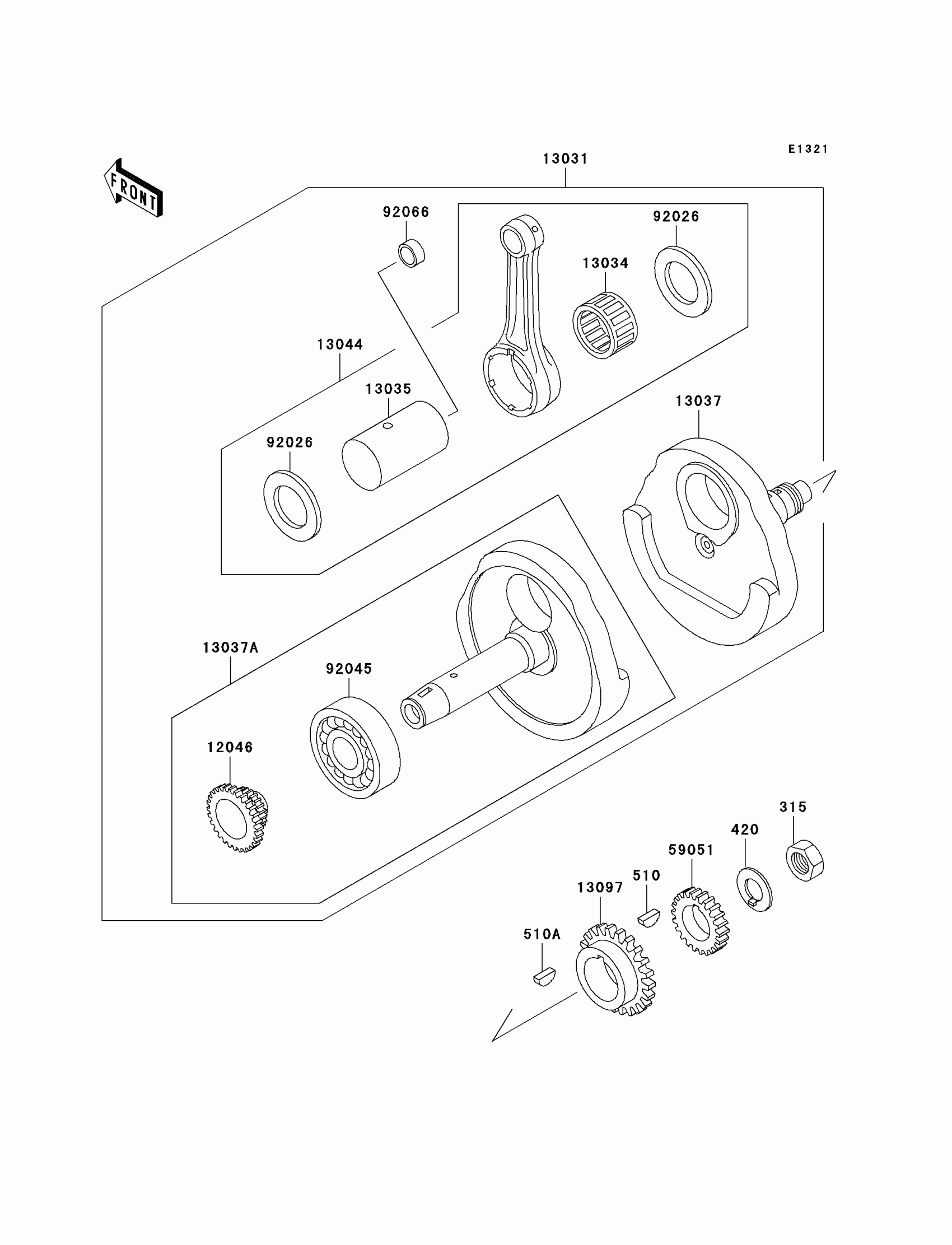

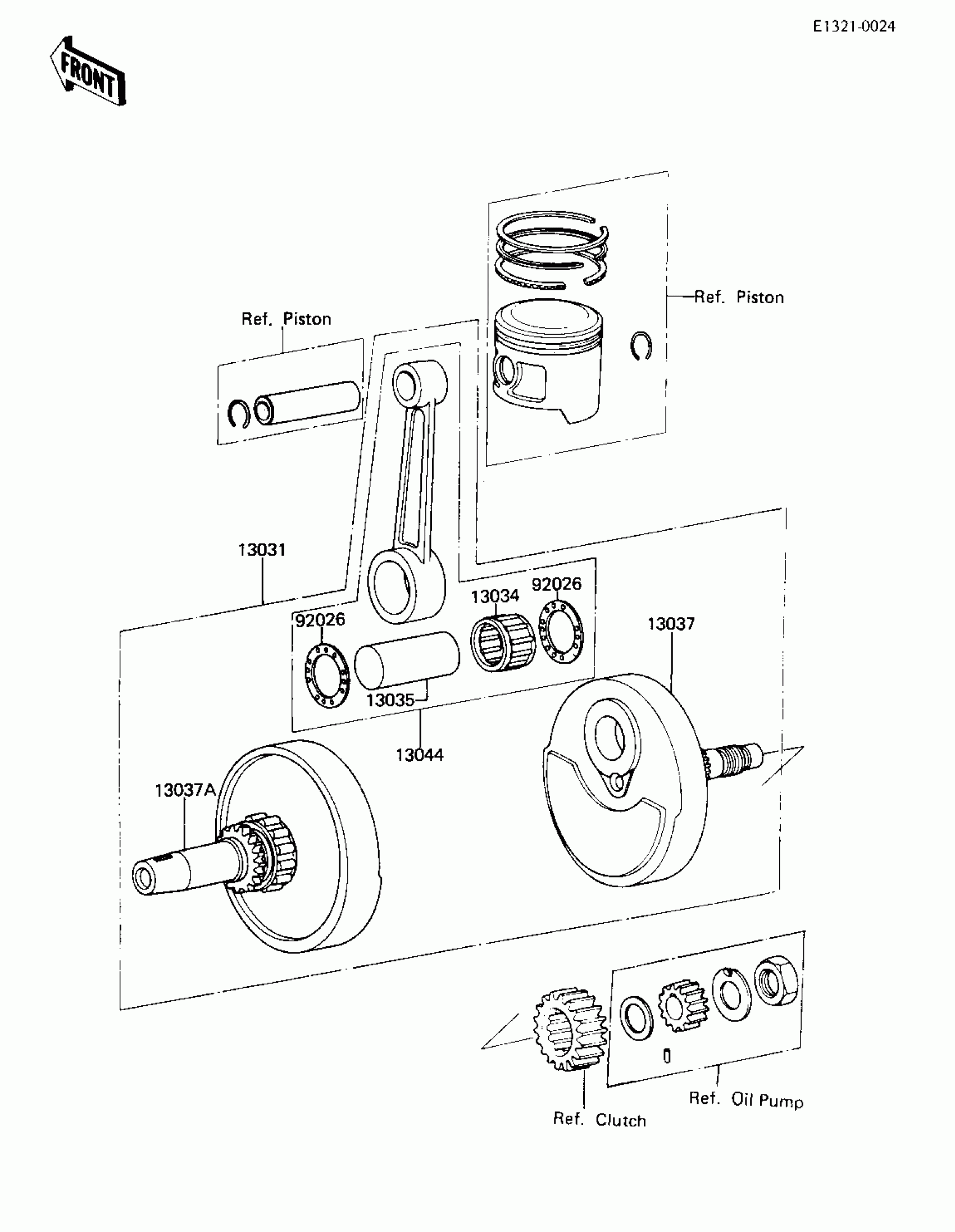

Kawasaki KLR250 Crankshaft Diagram

Description

Price

315

NUT-HEX-FINE,16MM

315B1600

Unavailable

420

WASHER-CLAW,16MM

420B1611

$3.59

510

KEY-WOODRUFF

510A3100

$2.70

510A

WOODRUFF KEY

510A5100

$2.70

12046

SPROCKET,CAM&BALANCER

12046-1064

Unavailable

13031

CRANKSHAFT-COMP

13031-1281

$753.69

13034

BEARING-BIG END

13034-1085

$43.64

13035

PIN-CRANK

13035-1069

$68.03

13037

CRANKSHAFT,RH

13037-1226

$460.07

13037A

CRANKSHAFT,LH

13037-5040

$472.40

13044

SET-CONNECTING ROD

13044-5075

$186.02

13097

GEAR-PRIMARY SPUR,23T

13097-1118

$83.85

59051

GEAR-SPUR,OIL PUMP,18T

59051-1122

$41.89

92026

SPACER,32.2X51.5X1.2

92026-1348

$13.08

92045

BEARING-BALL

92045-1172

$48.87

92066

PLUG

92066-1249

$4.65
