- KLR®650 TRAVELER
Rear Master Cylinder

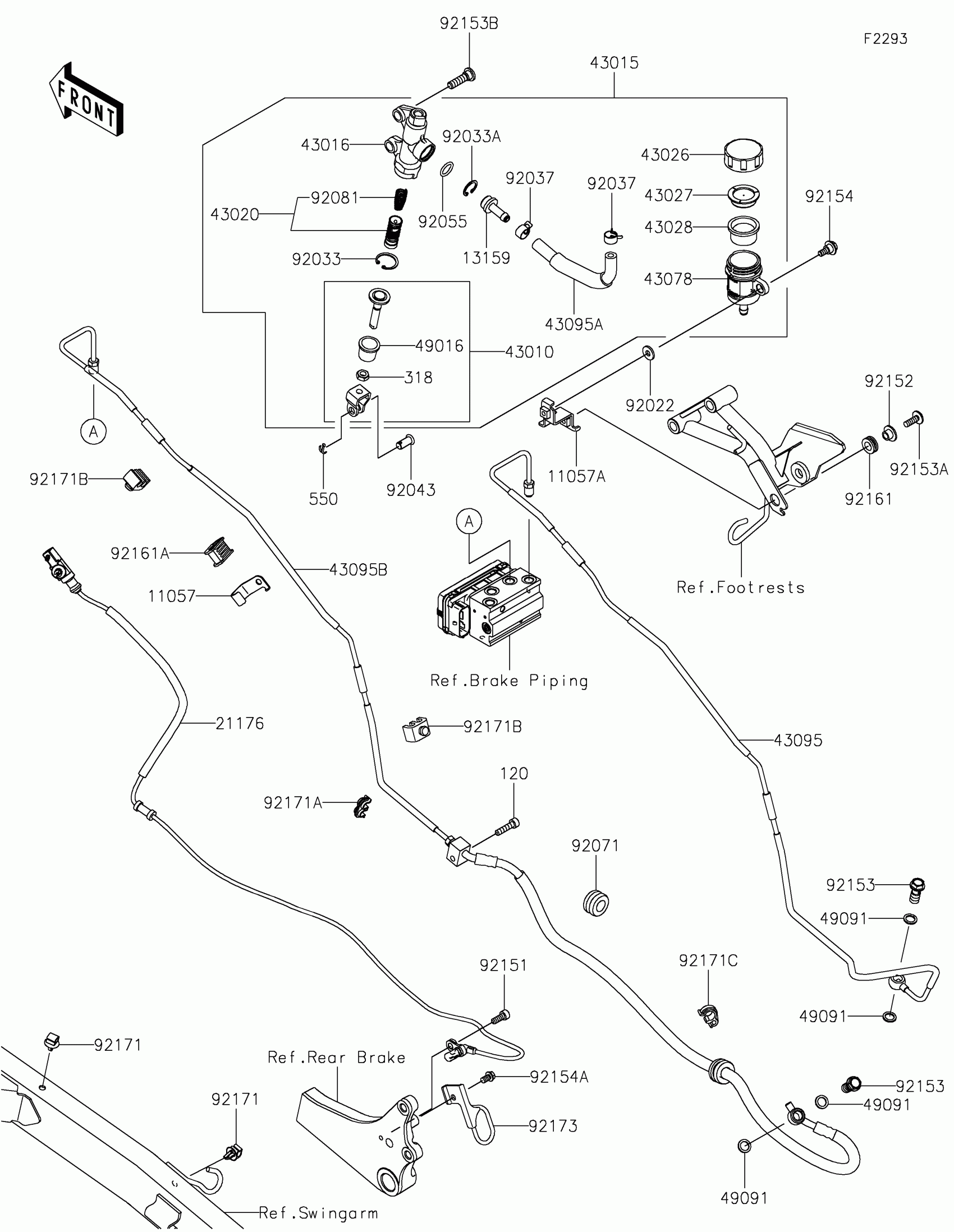

Kawasaki KLR®650 TRAVELER Rear Master Cylinder Diagram
#
11057
BRACKET,BRAKE HOSE
11057-4377
$2.80
11057A
BRACKET,RR MASTER CYLINDER
11057-4396
$6.77
13159
CONNECTOR
13159-1065
$7.26
21176
SENSOR,SPEED,RR
21176-0995
$259.40
43010
ROD-ASSY-BRAKE
43010-0031
$65.92
43015
CYLINDER-ASSY-MASTER,RR
43015-0777
$409.35
43016
CYLINDER-MASTER,RR
43016-1208
$153.65
43020
PISTON-COMP-BRAKE
43020-1057
$65.22
43026
CAP-BRAKE
43026-0009
$37.51
43027
PLATE-DIAPHRAGM
43027-1053
$5.67
43028
DIAPHRAGM
43028-1065
$19.09
43078
RESERVOIR
43078-0060
$32.45
43095
HOSE-BRAKE,RR M/C-ABS UNIT
43095-1758
$146.41
43095A
HOSE-BRAKE
43095-1762
$22.62
43095B
HOSE-BRAKE,ABS UNIT-RR CALIPER
43095-1860
$257.27
49016
COVER-SEAL,BRAKE PISTON
49016-1103
$13.37
49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
$2.15
92022
WASHER,6.5X16X2
92022-1565
$3.92
92033
RING-SNAP,20.9X24.6X1.2
92033-0079
$7.78
92033A
RING-SNAP,20.5MM
92033-1186
$4.96
92037
CLAMP
92037-1710
$9.91
92043
PIN,8X17
92043-0104
$3.90
92055
RING-O,14.8X2.4
92055-0741
$3.71
92071
GROMMET,12.2X26X16
92071-0785
$2.15
92081
SPRING,MASTER CYLINDER
92081-1737
$12.23
92151
BOLT
92151-1166
$2.26
92152
COLLAR
92152-2770
$3.86
92153
BOLT,OIL,L=23
92153-0627
$5.48
92153A
BOLT,6X18
92153-0816
$2.15
92153B
BOLT,SOCKET,8X30
92153-1624
$3.90
92154
BOLT
92154-0929
$3.71
92154A
BOLT,FLANGED,6X10
92154-0950
$2.67
92161
DAMPER,10X18X6.5
92161-2091
$2.44
92161A
DAMPER
92161-2387
$2.80
92171
CLAMP
92171-0640
$3.90
92171A
CLAMP
92171-0817
$4.65
92171B
CLAMP
92171-0818
$4.41
92171C
CLAMP,BRAKE HOSE
92171-1819
$5.54
92173
CLAMP
92173-2454
$11.16
120
BOLT-SOCKET,6X25
120CB0625
$2.62
318
NUT-HEX-SMALL,8MM
318BA0800
$1.34
550
PIN-COTTER,2.0X15
550AA2015
$1.12
