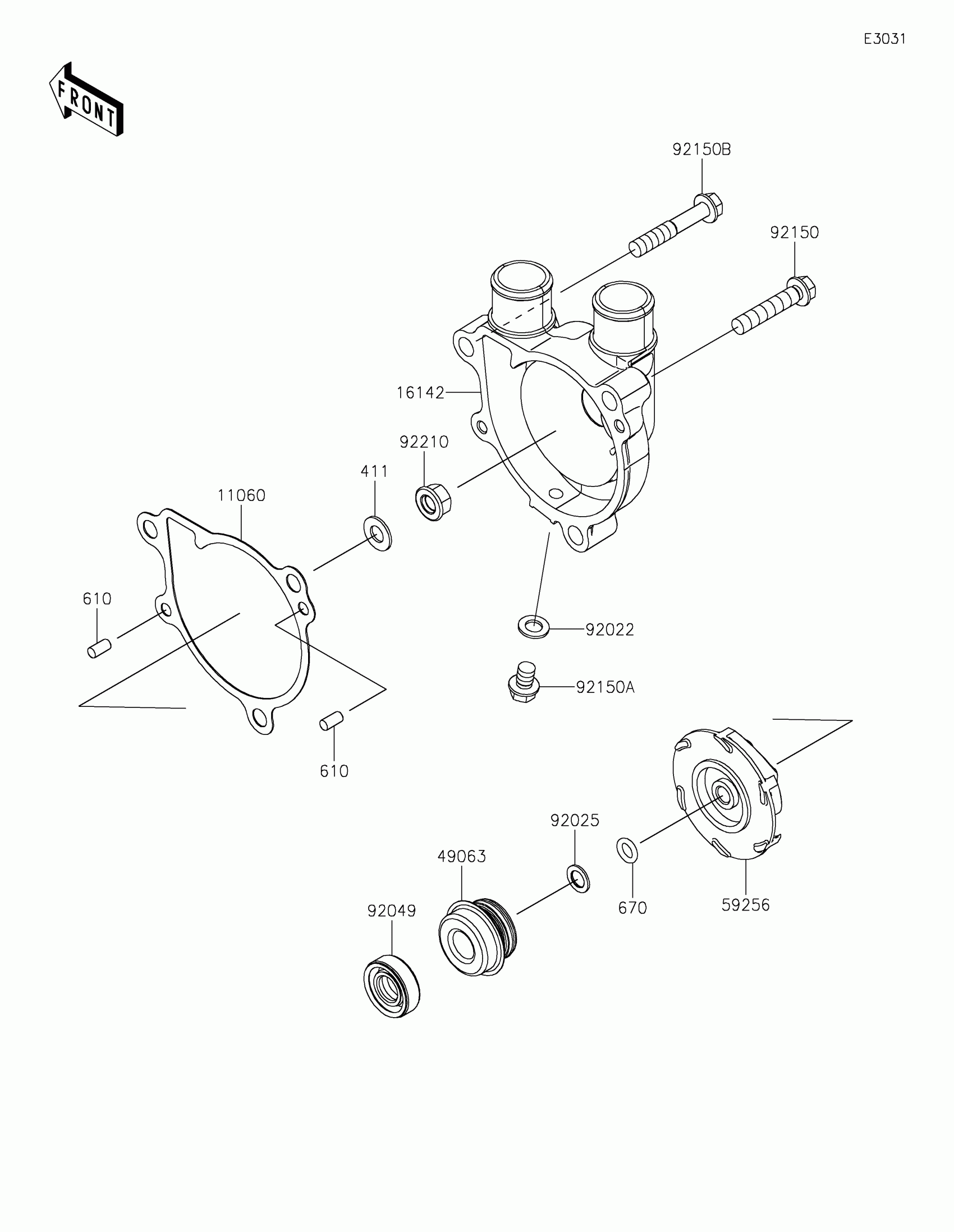

Kawasaki KLR®650 Traveler ABS Water Pump Diagram

Description

Price

11060

GASKET,WATER PUMP COVER

11060-1114

$8.03

16142

COVER-PUMP

16142-0067

$111.59

49063

SEAL-MECHANICAL

49063-0002

$16.68

59256

IMPELLER

59256-1055

$30.63

92022

WASHER,6.2X11X1

92022-304

$3.65

92025

SHIM,T=0.8

92025-1503

$3.21

92049

SEAL-OIL,SC10227

92049-1157

$9.28

92150

BOLT,6X30

92150-1021

Unavailable

92150A

BOLT,6X8

92150-1966

$3.92

92150B

BOLT,6X35

92150-1967

$4.31

92210

NUT,FLANGED,6MM

92210-0630

$2.00

411

WASHER-PLAIN,6MM

411AB0600

$1.18

610

ROLLER,4X8

610A0408

$4.31

670

O RING,6MM

670B1506

$1.28
