Description

Price

13127

SHAFT-TRANSMISSION INPUT,15T

13127-0711

$221.83

13128

SHAFT-TRANSMISSION OUTPUT

13128-0727

$217.64

13144

SPROCKET-OUTPUT,15T

13144-0597

$55.51

13262

GEAR,INPUT 2ND,18T

13262-1489

$85.34

13262A

GEAR,INPUT 4TH,22T

13262-1491

$119.08

13262B

GEAR,INPUT TOP,24T

13262-1492

$126.17

13262C

GEAR,OUTPUT LOW,34T

13262-1493

$130.23

13262D

GEAR,OUTPUT 2ND,26T

13262-1494

$128.52

13262E

GEAR,OUTPUT 3RD,25T

13262-1495

$128.52

13262F

GEAR,OUTPUT 4TH,21T

13262-1618

$122.19

13262G

GEAR,OUTPUT TOP,19T

13262-1619

$125.00

13262H

GEAR,INPUT 3RD,22T

13262-1620

$70.88

92022

WASHER,20.3X30X0.7,STEEL

92022-1026

$6.15

92022A

WASHER,20.5X30X1,STEEL

92022-112

$8.86

92022B

WASHER,TOOTHED,25.3X29.5X0.5

92022-1482

$4.69

92022C

WASHER,25.3X30X0.5

92022-159

$8.58

92022D

WASHER,25.3X32X0.5

92022-225

$5.52

92022E

WASHER,20.5X25.5X0.5

92022-252

$6.22

92024

WASHER,TOOTHED,22.5X31X0.5

92024-038

$6.22

92027

COLLAR,25X32X15.3

92027-1800

$28.72

92028

BUSHING,26X35X14

92028-131

$38.06

92033

RING-SNAP,24MM

92033-026

$8.79

92033A

RING-SNAP,18MM

92033-029

$9.82

92046

BEARING-NEEDLE,KT202614

92046-1170

$18.16

92055

RING-O,21.5X1.5

92055-0196

$4.45

92143

COLLAR,25X32X3.0

92143-1721

$10.65

92200

WASHER

92200-0851

$5.98

92200A

WASHER,2ND GEAR

92200-1170

$4.31

92210

NUT,M20

92210-0605

$33.52

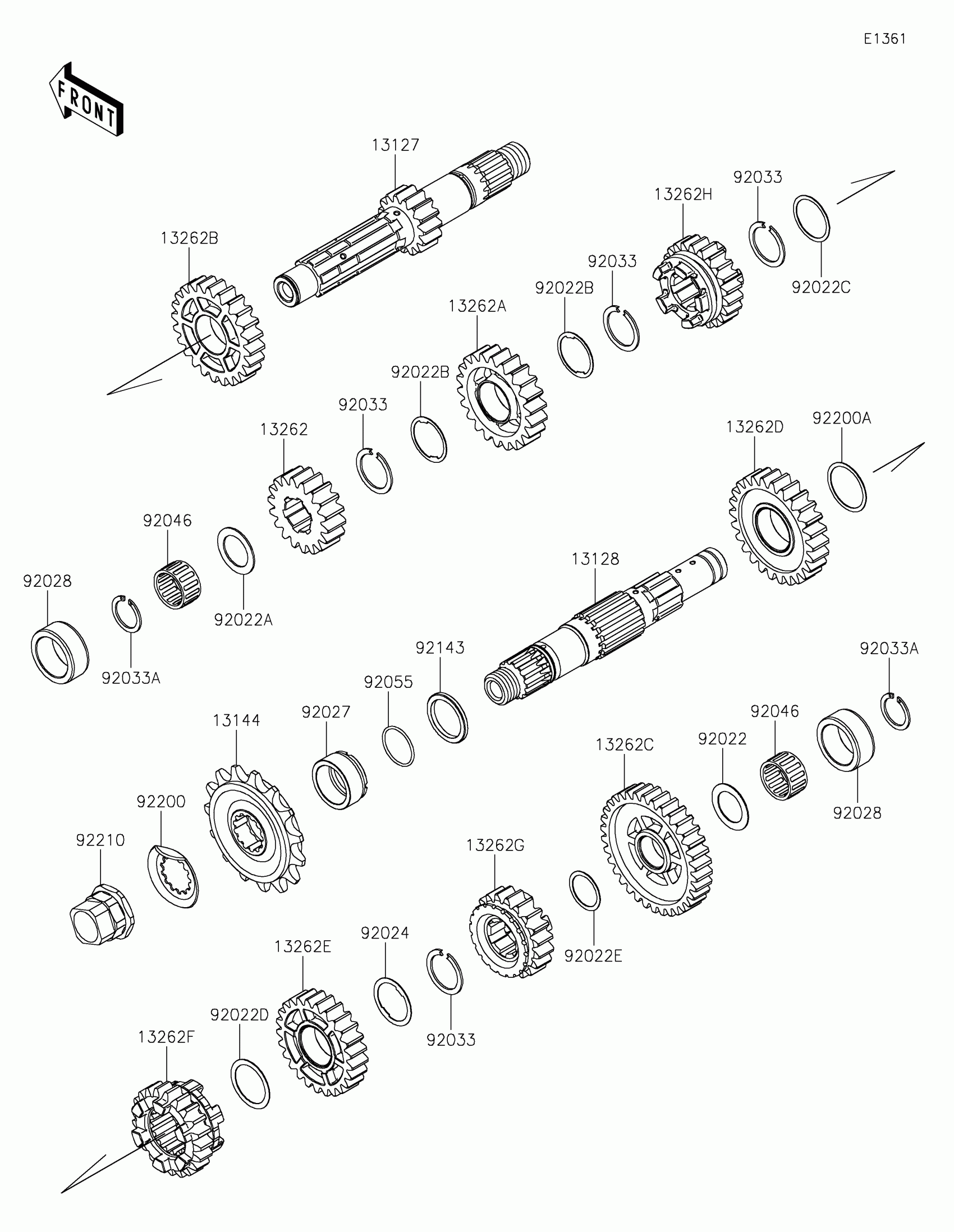

Kawasaki KLR®650 Traveler ABS Transmission Diagram
