Description

Price

13107

SHAFT,IDLER

13107-1135

$18.57

13194

CLUTCH-ONEWAY

13194-1089

$109.28

13216

GEAR-COMP,ONEWAY CLUTCH

13216-0044

$401.16

13280

HOLDER

13280-0710

$14.49

14093

COVER

14093-0199

$18.77

16073

INSULATOR

16073-0053

$11.93

21039

BRUSH,CARBON

21039-0004

$117.72

21040

SPRING-BRUSH

21040-0003

$9.79

21163

STARTER-ELECTRIC

21163-0790

$435.57

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.96

26011

WIRE-LEAD,STARTER

26011-1938

$34.35

27010

SWITCH,MAGNETIC

27010-0948

$135.58

39076

LIMITER,STARTER IDLE GEAR

39076-0021

$214.48

42034

COUPLING

42034-1094

$135.66

59051

GEAR-SPUR,20T & 37T

59051-1133

$115.66

92002

BOLT,FLANGED,6X25

92002-1086

$5.52

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,10.2X20X0.5

92022-1649

$4.31

92026

SPACER

92026-1474

$21.77

92046

BEARING-NEEDLE,K10X14X10

92046-1134

$15.95

92055

RING-O

92055-0136

$7.75

92055A

RING-O

92055-1276

$9.91

92055B

RING-O,4.5X2.0

92055-1370

$4.69

92071

GROMMET

92071-0705

$6.89

92150

BOLT,6X10

92150-1577

$3.60

92153

BOLT

92153-1850

$11.93

92153A

BOLT

92153-1866

$4.65

92172

SCREW

92172-0334

$4.65

92200

WASHER

92200-0386

$4.65

92200A

WASHER,32.2X50

92200-0555

$3.74

120

BOLT-SOCKET,8X18

120CA0818

$2.80

461

WASHER-SPRING,6MM

461DB0600

$0.65

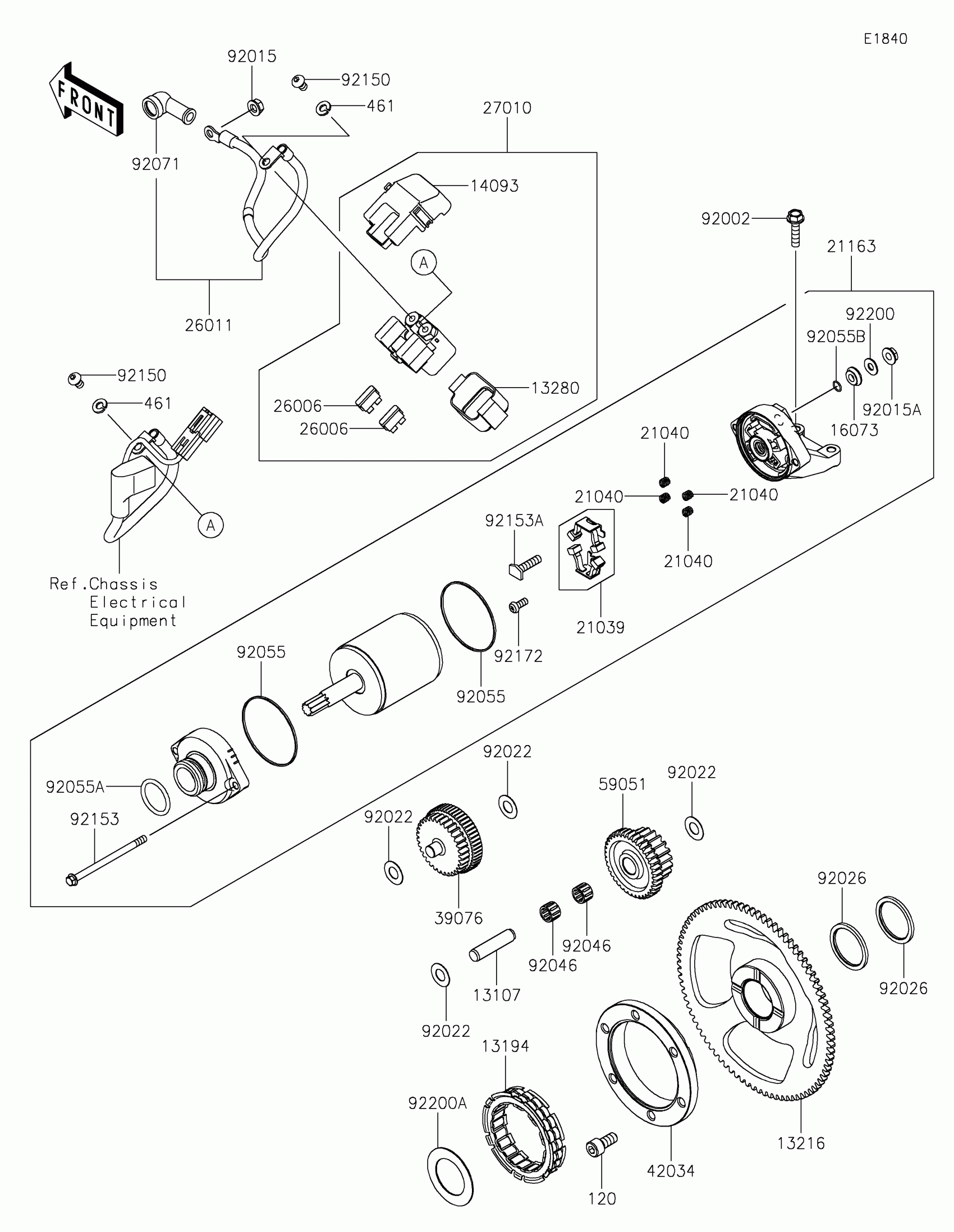

Kawasaki KLR®650 Traveler ABS Starter Motor Diagram

SHAFT,IDLER

CLUTCH-ONEWAY

GEAR-COMP,ONEWAY CLUTCH

HOLDER

COVER

INSULATOR

BRUSH,CARBON

SPRING-BRUSH

STARTER-ELECTRIC

FUSE,BLADE,30A,GREEN

WIRE-LEAD,STARTER

SWITCH,MAGNETIC

LIMITER,STARTER IDLE GEAR

COUPLING

GEAR-SPUR,20T & 37T

BOLT,FLANGED,6X25

NUT,FLANGED,6MM

NUT,STARTER MOTOR

WASHER,10.2X20X0.5

SPACER

BEARING-NEEDLE,K10X14X10

RING-O

RING-O

RING-O,4.5X2.0

GROMMET

BOLT,6X10

BOLT

BOLT

SCREW

WASHER

WASHER,32.2X50

BOLT-SOCKET,8X18

WASHER-SPRING,6MM
