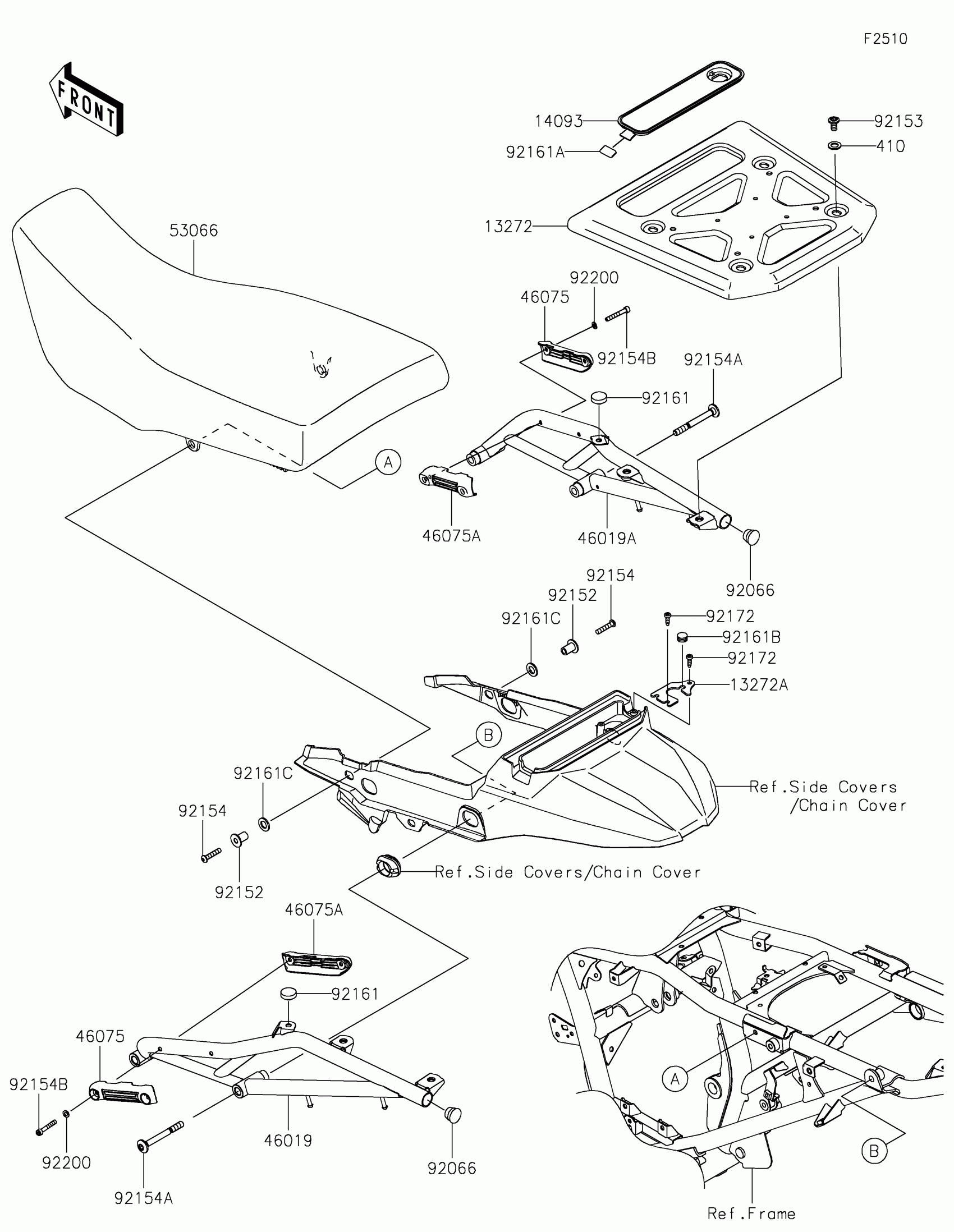

Kawasaki KLR®650 Traveler ABS Seat Diagram

Description

Price

13272

PLATE,CARRIER

13272-3763

$473.59

13272A

PLATE

13272-3872

$3.27

14093

COVER,TOOL

14093-1079

$29.00

46019

GRIP-ASSY,LH

46019-0107

$208.54

46019A

GRIP-ASSY,RH

46019-0108

$208.54

46075

GRIP,OUTSIDE

46075-0659

$5.45

46075A

GRIP,INSIDE

46075-0660

$15.96

53066

SEAT-ASSY,DUAL,BLACK+SIL

53066-0703-64U

$171.91

92066

PLUG

92066-1220

$4.96

92152

COLLAR

92152-2823

$4.60

92153

BOLT,SOCKET,8X15

92153-1810

$3.90

92154

BOLT,SOCKET,6X30

92154-0206

$2.75

92154A

BOLT,SOCKET,8X78

92154-4346

$6.28

92154B

BOLT,SOCKET,5X35

92154-4350

$0.63

92161

DAMPER

92161-0336

$5.65

92161A

DAMPER,12X23

92161-1367

$1.19

92161B

DAMPER,8X14X8.9

92161-1666

$1.48

92161C

DAMPER

92161-2425

$0.63

92172

SCREW,TAPPING,5X16

92172-1425

$2.58

92200

WASHER,5.5X10X1.2

92200-2495

$0.63

410

WASHER-PLAIN-SMALL,10MM

410AA1000

$0.59
