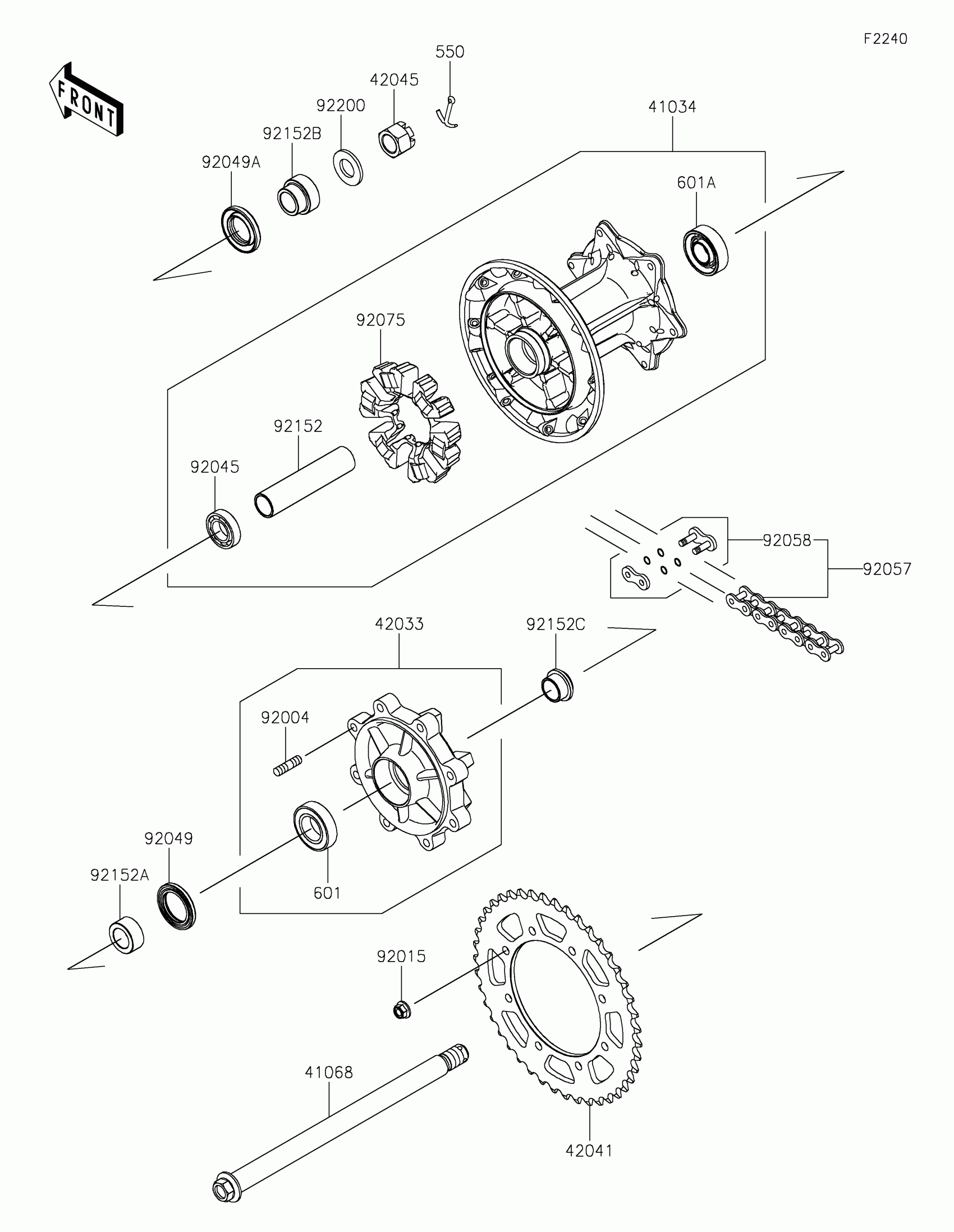

Kawasaki KLR®650 Traveler ABS Rear Hub Diagram

Description

Price

41034

DRUM-ASSY,RR

41034-0609

$610.84

41068

AXLE,RR

41068-0659

$109.20

42033

COUPLING-ASSY,REAR HUB

42033-0596

$222.49

42041

SPROCKET-HUB,43T

42041-0185

$73.98

42045

NUT,CASTLE,18MM

42045-018

$9.23

92004

STUD,8X16

92004-1150

$5.46

92015

NUT,8MM

92015-1432

$6.57

92045

BEARING-BALL,20X37X9

92045-0942

$33.13

92049

SEAL-OIL,32X47X5

92049-0795

$13.57

92049A

SEAL-OIL,27X47X7

92049-0802

$7.29

92057

CHAIN,DRIVE,520VEX110L

92057-0806

$161.39

92058

JOINT-CHAIN

92058-0044

$13.66

92075

DAMPER,SHOCK,RR HUB

92075-1068

$47.86

92152

COLLAR,20.2X28X110.5

92152-2735

$13.34

92152A

COLLAR,LH

92152-2736

$13.34

92152B

COLLAR,RH

92152-2737

$24.47

92152C

COLLAR,COUPLING

92152-2738

$14.32

92200

WASHER,19X36X3.2

92200-0296

$2.61

550

PIN-COTTER,4.0X35

550AA4035

$2.17

601

BEARING-BALL,#6005UU

601B6005UU

$27.65

601A

BEARING-BALL,#6204UG

601B6204UG

$29.76
