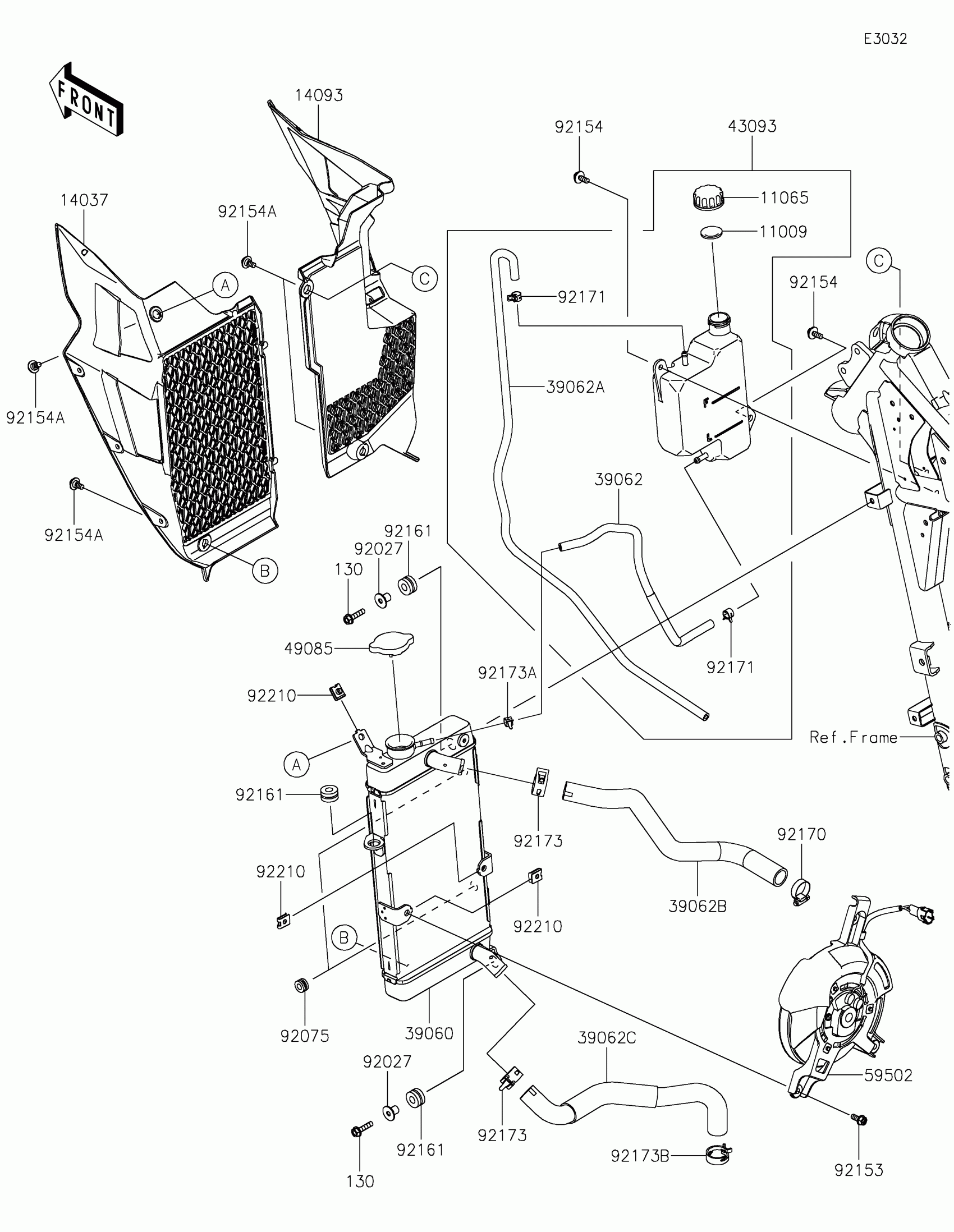

Kawasaki KLR®650 Traveler ABS Radiator Diagram
#
Description
Price
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11065
CAP
11065-0969
$2.02
14037
SCREEN,RADIATOR
14037-0821
$48.01
14093
COVER,RH
14093-1070
$32.12
39060
RADIATOR
39060-0744
$417.57
39062
HOSE-COOLING,RAD-RESERVOIR
39062-0922
$7.71
39062A
HOSE-COOLING,OVERFLOW
39062-0923
$14.18
39062B
HOSE-COOLING,HEAD-RADIATOR
39062-0924
$20.90
39062C
HOSE-COOLING,W/PUMP-RADIATOR
39062-0925
$18.59
43093
RESERVOIR-ASSY-TANK
43093-0010
$53.07
49085
CAP-ASSY-PRESSURE
49085-0006
$50.52
59502
FAN-ASSY
59502-0632
$474.62
92027
COLLAR,6.5X10X14.1
92027-1183
$5.52
92075
DAMPER
92075-1912
$5.77
92153
BOLT
92153-0531
$2.61
92154
BOLT,6X16
92154-0391
$1.94
92154A
BOLT,FLANGED,6X9
92154-0546
$3.74
92161
DAMPER
92161-1755
$4.69
92170
CLAMP,COOLING HOSE
92170-1033
$15.16
92171
CLAMP,10.5X8X0.7
92171-1992
$6.22
92173
CLAMP
92173-1567
$3.54
92173A
CLAMP
92173-2425
$1.36
92173B
CLAMP
92173-2459
$3.27
92210
NUT
92210-1323
$4.18
130
BOLT-FLANGED,6X25
130BA0625
$1.20
