Description

Price

11057

BRACKET,REFLECTOR,RR

11057-4368

$13.09

11057A

BRACKET,RR BRAKE SWITCH

11057-7880

$10.19

11057B

BRACKET,REFLECTOR

11057-7911

$6.18

14091

COVER,SIDE STAND SWITCH

14091-1553

$7.60

27005

SWITCH-ASSY-IGNITION

27005-0702

$178.07

27005A

SWITCH-ASSY-IGNITION

27005-5191

$498.15

27008

KEY-LOCK,BLANK

27008-0688

$28.87

27010

SWITCH,SIDE STAND

27010-0118

$74.34

27010A

SWITCH,REAR BRAKE

27010-0969

$46.80

27016

LOCK-ASSY,TOOL COVER

27016-5419

$121.51

27016A

LOCK-ASSY,TANK CAP

27016-5421

$121.51

27016B

LOCK-ASSY,PANNIER

27016-5422

$110.14

28012

REFLECTOR-REFLEX,CCC

28012-0045

$16.53

28012A

REFLECTOR-REFLEX

28012-1077

$23.25

28012B

REFLECTOR-REFLEX

28012-1088

$22.46

55020

GUARD,50X30

55020-2334

$3.49

92002

BOLT,6X12

92002-1132

$1.49

92002A

BOLT,FLANGED,6X25

92002-1582

$4.69

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,FLANGED,6MM

92015-1367

$3.69

92143

COLLAR

92143-1331

$3.94

92145

SPRING,REAR BRAKE

92145-1896

$5.01

92152

COLLAR,6.15X10.15X6

92152-1535

$3.74

92154

BOLT,TORX,6X22

92154-1858

$3.94

92171

CLAMP

92171-0640

$3.90

92172

SCREW,5X12

92172-1459

$0.61

92210

NUT,FLANGED,5MM

92210-0007

$2.70

461

WASHER-SPRING,6MM

461DA0600

$0.71

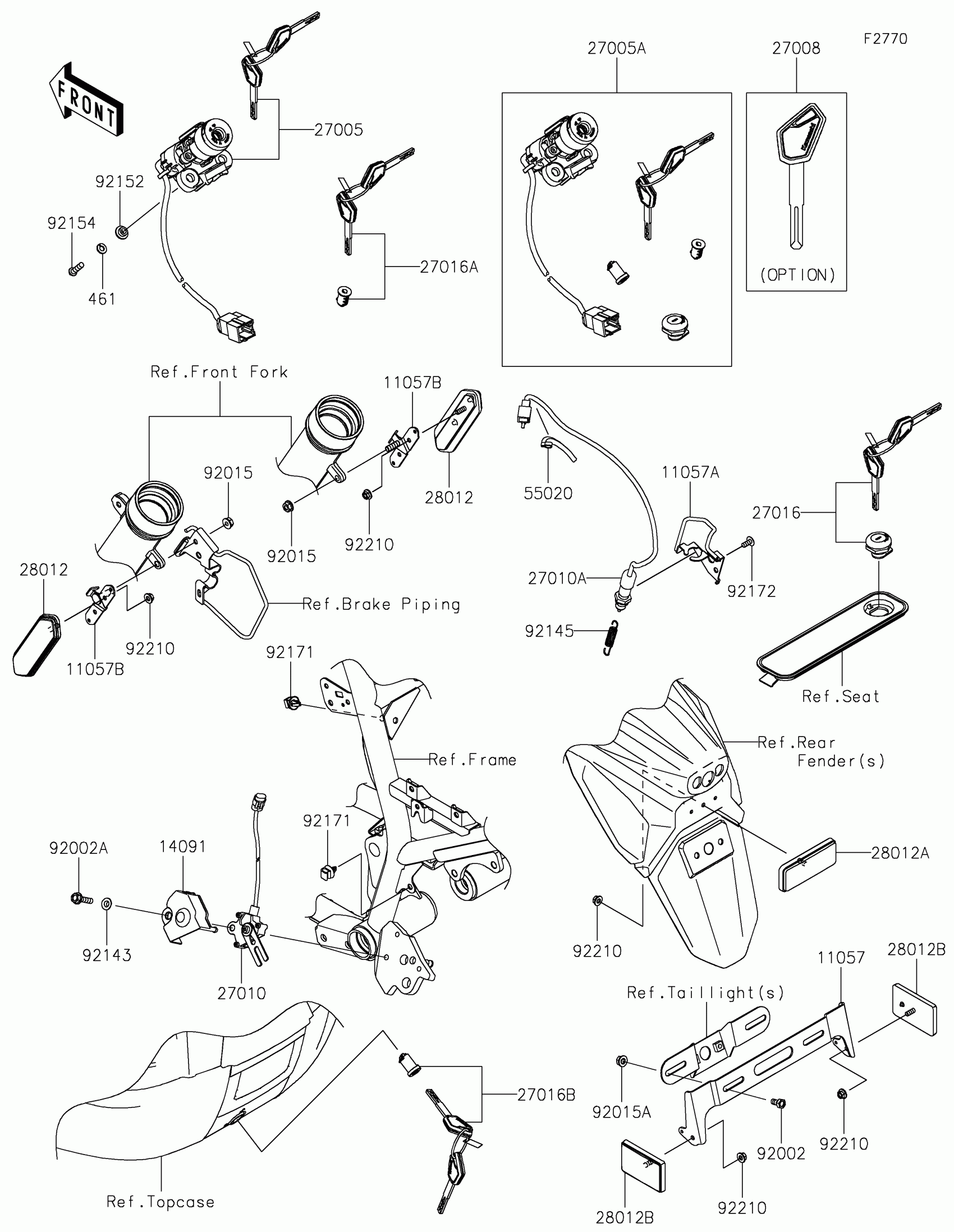

Kawasaki KLR®650 Traveler ABS Ignition Switch Diagram

BRACKET,REFLECTOR,RR

BRACKET,RR BRAKE SWITCH

BRACKET,REFLECTOR

COVER,SIDE STAND SWITCH

SWITCH-ASSY-IGNITION

SWITCH-ASSY-IGNITION

KEY-LOCK,BLANK

SWITCH,SIDE STAND

SWITCH,REAR BRAKE

LOCK-ASSY,TOOL COVER

LOCK-ASSY,TANK CAP

LOCK-ASSY,PANNIER

REFLECTOR-REFLEX,CCC

REFLECTOR-REFLEX

REFLECTOR-REFLEX

GUARD,50X30

BOLT,6X12

BOLT,FLANGED,6X25

NUT,FLANGED,6MM,BLACK

NUT,FLANGED,6MM

COLLAR

SPRING,REAR BRAKE

COLLAR,6.15X10.15X6

BOLT,TORX,6X22

CLAMP

SCREW,5X12

NUT,FLANGED,5MM

WASHER-SPRING,6MM
