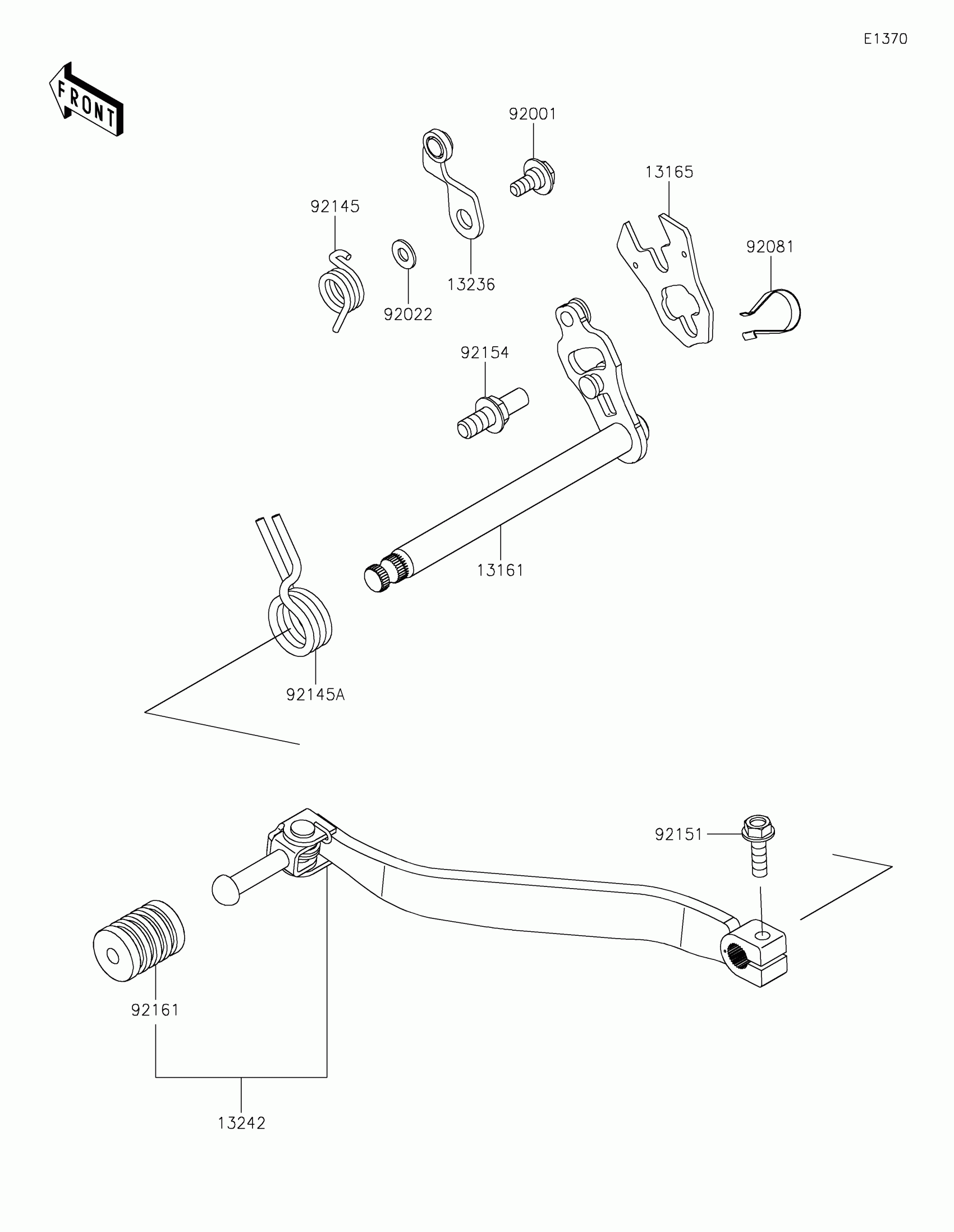

Kawasaki KLR®650 Traveler ABS Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-0065

$68.14

13165

PAWL

13165-1120

$14.10

13236

LEVER-COMP

13236-0200

$9.21

13242

LEVER-ASSY-CHANGE

13242-0252

$53.04

92001

BOLT,FLANGED,6X14

92001-1715

$10.65

92022

WASHER,6X12.8X1.2

92022-1827

$4.69

92081

SPRING,CHANGE LEVER

92081-1493

$7.27

92145

SPRING

92145-0773

$9.09

92145A

SPRING,CHANGE PEDAL RETURN

92145-0774

$11.34

92151

BOLT,6X20

92151-1450

$2.46

92154

BOLT,RETURN SPRING

92154-1838

$9.07

92161

DAMPER,CHANGE PEDAL

92161-1652

$8.58
