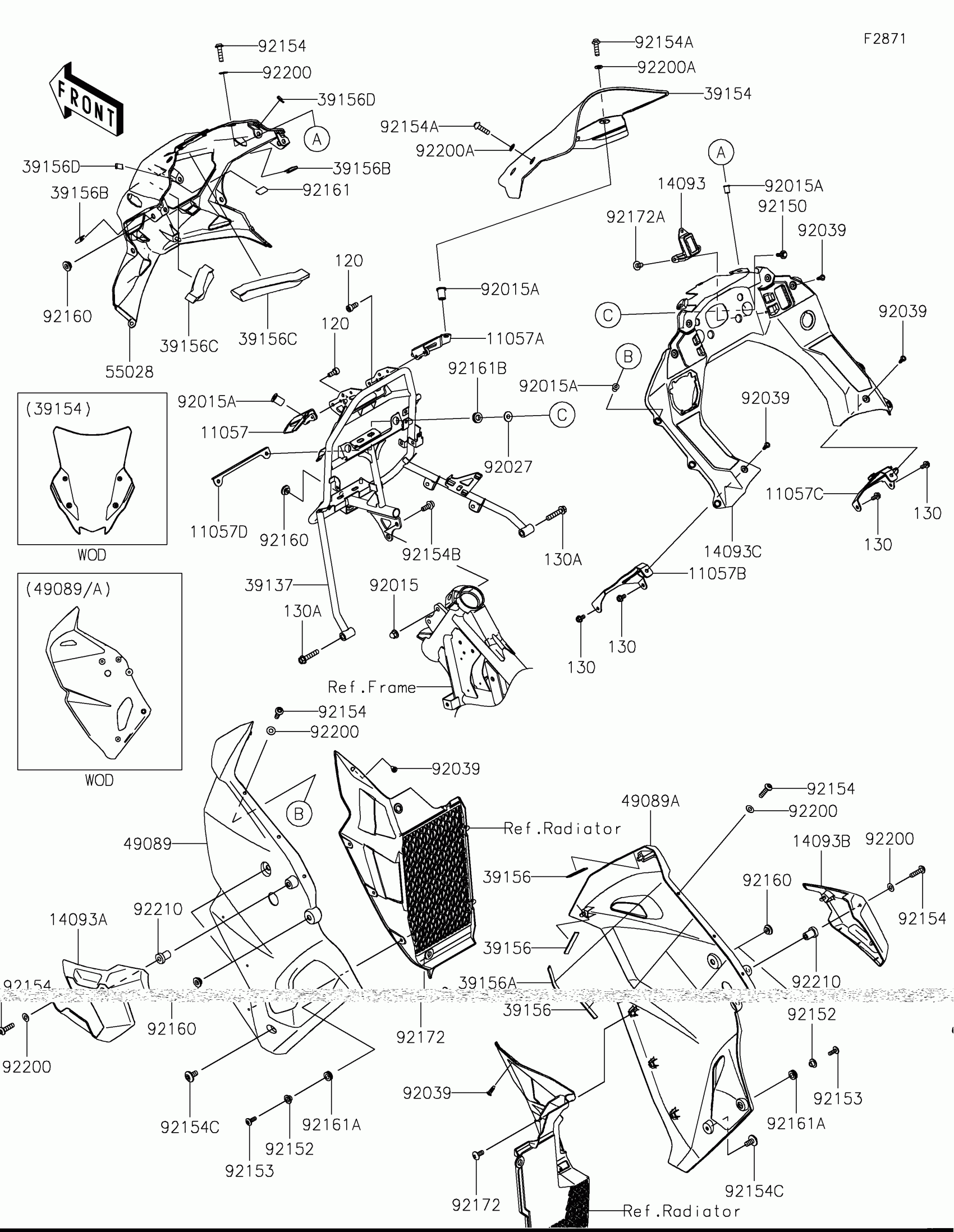

Kawasaki KLR®650 Traveler ABS Cowling Diagram
#
11057
BRACKET,WINDSHIELD,LH
11057-4397
$5.31
11057A
BRACKET,WINDSHIELD,RH
11057-4398
$5.31
11057B
BRACKET,DASHBOARD,LH
11057-7243
$9.95
11057C
BRACKET,DASHBOARD,RH
11057-7245
$11.90
11057D
BRACKET,METER
11057-7893
$5.95
14093
COVER,FOG SW.
14093-0565
$2.92
14093A
COVER,SHROUD,LH
14093-1074
$48.05
14093B
COVER,SHROUD,RH
14093-1075
$48.05
14093C
COVER,DASHBOARD
14093-1076
$221.84
39137
STAY-COMP,COWLING
39137-0731
$322.72
39154
WINDSHIELD
39154-0391
$139.72
39156
PAD,10X50X2
39156-1924
$2.44
39156A
PAD,10X80X2
39156-2238
$1.33
39156B
PAD,25X25X2
39156-2573
$1.21
39156C
PAD,20X15X150
39156-2762
$5.50
39156D
PAD,20X10X2
39156-2849
$0.63
49089
SHROUD-ENGINE,LH,P.S.YELLOW
49089-0995-10A
$194.96
49089A
SHROUD-ENGINE,RH,P.S.YELLOW
49089-0996-10A
$194.96
55028
COWLING,UPP
55028-0800
$117.16
92015
NUT,CAP,8MM
92015-1151
$5.00
92015A
NUT,WELL,5MM
92015-1757
$7.29
92027
COLLAR,L=7.4
92027-1848
$4.69
92039
RIVET
92039-0709
$2.67
92150
BOLT,6X20
92150-1339
$4.39
92152
COLLAR
92152-2770
$3.86
92153
BOLT,6X18
92153-0816
$2.15
92154
BOLT,SOCKET,5X20
92154-0216
$2.12
92154A
BOLT,SOCKET,5X18
92154-1945
$1.71
92154B
BOLT,SOCKET,8X20
92154-2314
$2.44
92154C
BOLT,SOCKET,6X12
92154-2355
$1.94
92160
DAMPER
92160-1613
$3.74
92161
DAMPER,12X23
92161-1367
$1.19
92161A
DAMPER,10X18X6.5
92161-2091
$2.44
92161B
DAMPER,10X20X6
92161-2168
$4.39
92172
SCREW,5X12
92172-0821
$0.85
92172A
SCREW,5X10
92172-0864
$1.34
92200
WASHER,NYLONE,5.3X11.5X0.5
92200-0006
$1.86
92200A
WASHER,5.2X10X1
92200-2286
$0.39
92210
NUT,5MM
92210-0001
$6.18
120
BOLT-SOCKET,5X12
120CB0512
$1.76
130
BOLT-FLANGED,6X12
130BA0612
$1.72
130A
BOLT-FLANGED,8X40
130BA0840
$1.98
