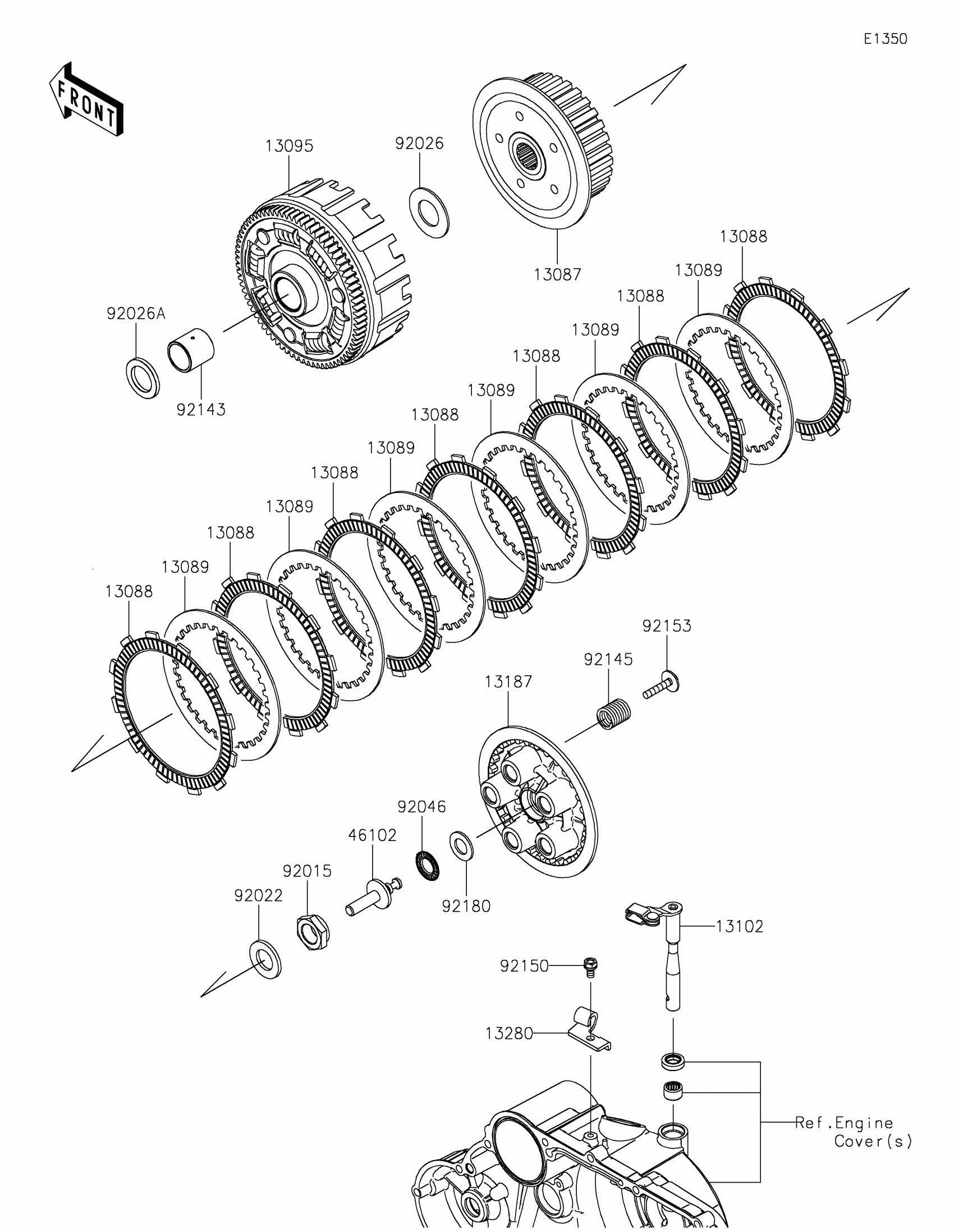

Kawasaki KLR®650 Traveler ABS Clutch Diagram

Description

Price

13087

HUB-CLUTCH

13087-0046

$149.30

13088

PLATE-FRICTION

13088-0023

$12.58

13089

PLATE-CLUTCH,T=2.3

13089-0016

$9.69

13095

HOUSING-COMP-CLUTCH

13095-0129

$517.43

13102

RELEASE-COMP-CLUTCH

13102-0083

$61.78

13187

PLATE-CLUTCH OPERATING

13187-0037

$76.97

13280

HOLDER

13280-0379

$13.47

46102

ROD

46102-0668

$17.50

92015

NUT,20MM

92015-1555

$9.95

92022

WASHER,20.3X36X3.7

92022-1868

$7.25

92026

SPACER,25.5X48X2

92026-0114

$4.95

92026A

SPACER,25.1X38X4

92026-0154

$19.08

92046

BEARING-NEEDLE,AXK1102

92046-1052

$10.99

92143

COLLAR

92143-1769

$33.81

92145

SPRING,CLUTCH

92145-0796

$6.48

92150

BOLT,6X12

92150-1965

$3.29

92153

BOLT,UPSET-WP,6X32

92153-1880

$2.34

92180

SHIM,15.3X27.5X2.0

92180-0149

$3.51
