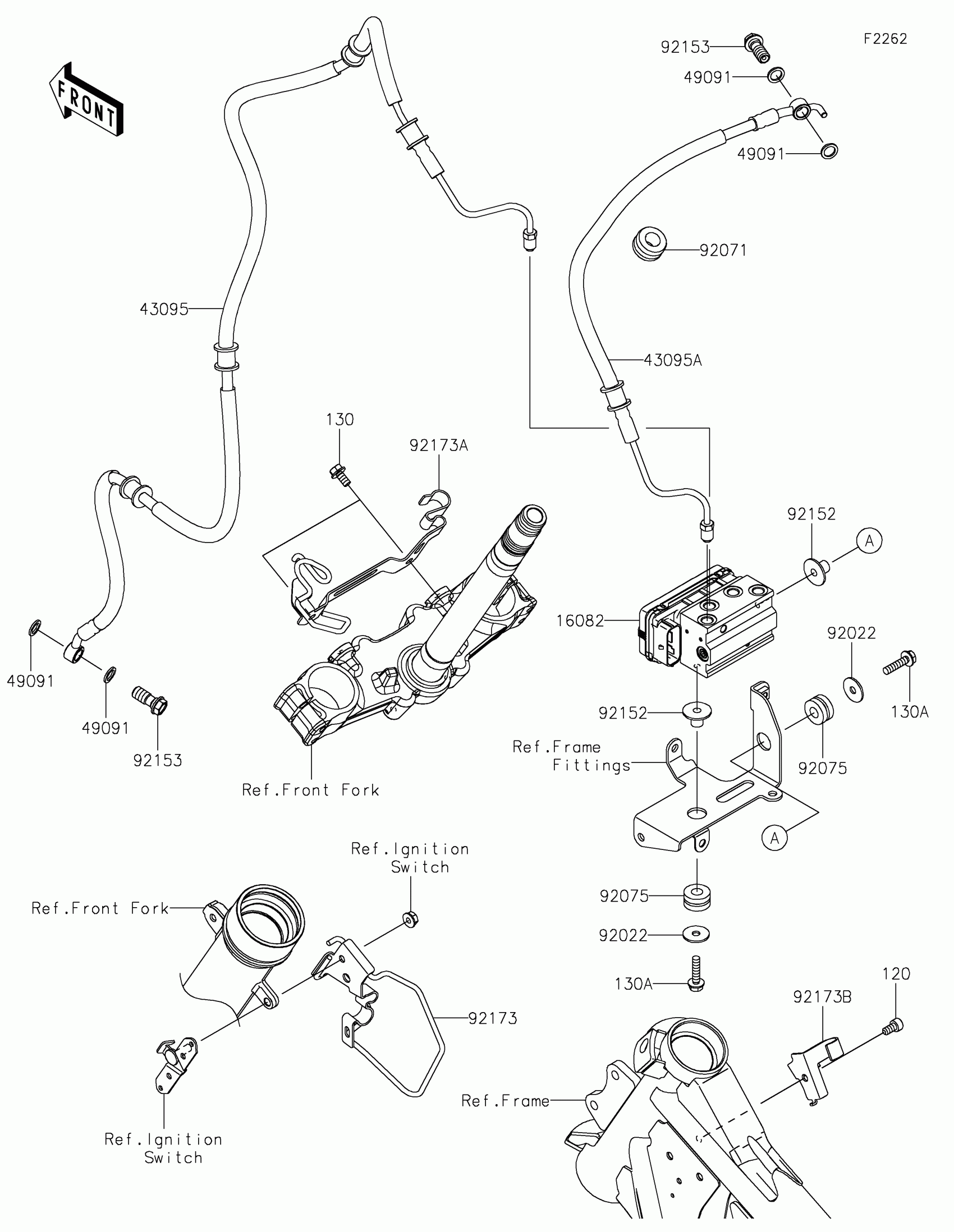

Kawasaki KLR®650 Traveler ABS Brake Piping Diagram

Description

Price

16082

PUMP-ASSY-OIL,ABS,BOSCH,10MB

16082-0852

$1,306.07

43095

HOSE-BRAKE,ABS UNIT-FR CALIPER

43095-1757

$207.18

43095A

HOSE-BRAKE,FR M/C-ABS UNIT

43095-1868

$137.86

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92022

WASHER,6.5X22X1.6

92022-237

$3.92

92071

GROMMET,12.2X26X16

92071-0785

$2.15

92075

DAMPER RUBBER,RR FENR

92075-209

$4.69

92152

COLLAR,6.5X10X13.6

92152-2204

$2.95

92153

BOLT,OIL,L=23

92153-0627

$5.48

92173

CLAMP

92173-2348

$12.14

92173A

CLAMP

92173-2350

$23.04

92173B

CLAMP

92173-2352

$4.36

120

BOLT-SOCKET,6X12

120CA0612

$1.71

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X25

130BA0625

$1.20
