Description

Price

120

BOLT-SOCKET,8X18

120CA0818

$2.80

13091

HOLDER,SWITCH

13091-1883

$7.60

13107

SHAFT,IDLER

13107-1135

$18.57

13194

CLUTCH-ONEWAY

13194-1089

$109.28

16085

GEAR,ONEWAY CLUTCH

16085-1205

Unavailable

21039

BRUSH,CARBON

21039-1060

$84.32

21040

SPRING-BRUSH

21040-1055

$8.42

21163

STARTER-ELECTRIC

21163-1108

$512.18

26006

FUSE,BLADE,20A,YELLOW

26006-1051

$4.96

26011

WIRE-LEAD

26011-0136

Unavailable

27010

SWITCH

27010-1336

Unavailable

39076

LIMITER,STARTER IDLE GEAR

39076-1056

$224.51

42034

COUPLING

42034-1094

$135.66

59051

GEAR-SPUR,20T & 37T

59051-1133

$115.66

92002

BOLT,FLANGED,6X25

92002-1086

$5.52

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,10.2X20X0.5

92022-1649

$4.31

92022A

WASHER,32.2X50X1.0

92022-1650

$7.62

92026

SPACER

92026-1474

$21.77

92046

BEARING-NEEDLE,K10X14X10

92046-1134

$15.95

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O,STARTER MOTOR

92055-1381

$9.91

92071

GROMMET

92071-0037

Unavailable

92150

BOLT,STARTER MOTOR

92150-1913

$9.51

92172

SCREW-PAN-WS-CROS,5X10

92172-0234

$2.15

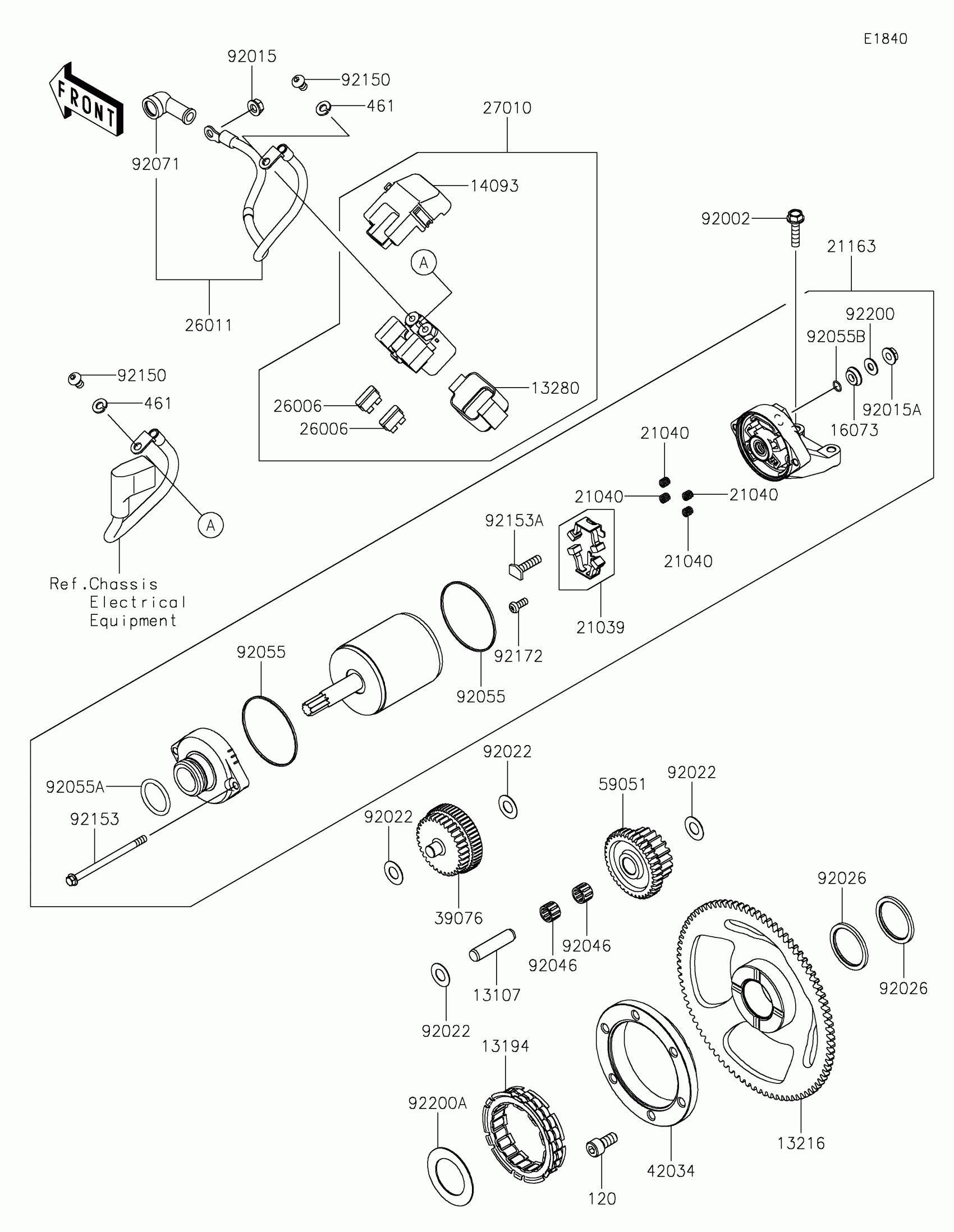

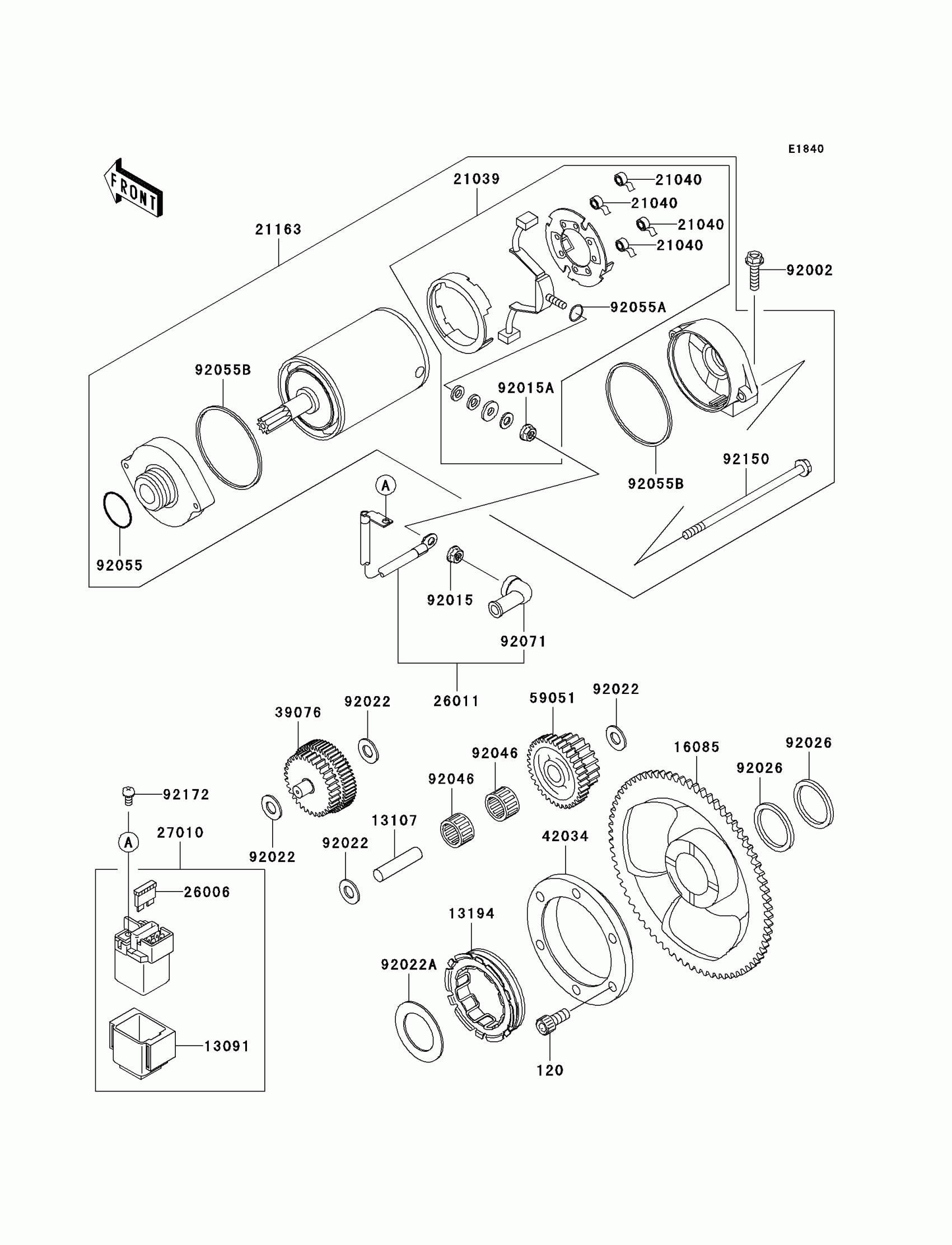

Kawasaki KLR™650 Starter Motor Diagram

BOLT-SOCKET,8X18

HOLDER,SWITCH

SHAFT,IDLER

CLUTCH-ONEWAY

GEAR,ONEWAY CLUTCH

BRUSH,CARBON

SPRING-BRUSH

STARTER-ELECTRIC

FUSE,BLADE,20A,YELLOW

WIRE-LEAD

SWITCH

LIMITER,STARTER IDLE GEAR

COUPLING

GEAR-SPUR,20T & 37T

BOLT,FLANGED,6X25

NUT,FLANGED,6MM

NUT,STARTER MOTOR

WASHER,10.2X20X0.5

WASHER,32.2X50X1.0

SPACER

BEARING-NEEDLE,K10X14X10

RING-O

RING-O,4.5X2.0

RING-O,STARTER MOTOR

GROMMET

BOLT,STARTER MOTOR

SCREW-PAN-WS-CROS,5X10
