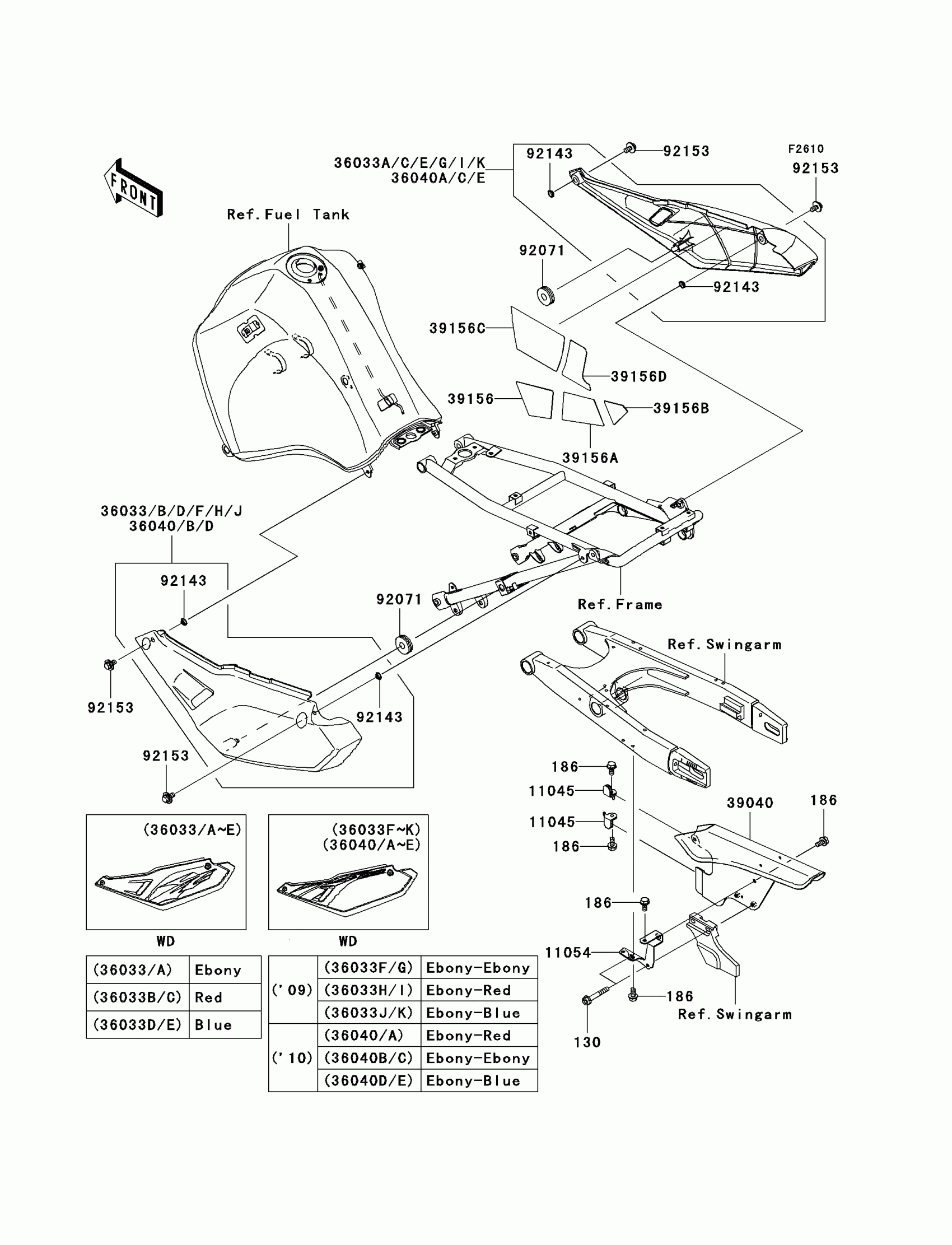

Kawasaki KLR™650 Side Covers/Chain Cover Diagram

Description

Price

130

BOLT-FLANGED,6X40

130BA0640

$1.20

186

BOLT-UPSET-WP,6X12

186BA0612

$2.51

11045

BRACKET,CHAIN CASE,FR

11045-1335

$10.27

11054

BRACKET,CHAIN CASE,RR

11054-0390

$26.41

36040

COVER-SIDE,LH,EBONY

36040-5258-6C

$242.81

36040A

COVER-SIDE,RH,EBONY

36040-5259-6C

$242.81

36040B

COVER-SIDE,LH,EBONY

36040-5260-6C

$242.81

36040C

COVER-SIDE,RH,EBONY

36040-5261-6C

$242.81

36040D

COVER-SIDE,LH,EBONY

36040-5262-6C

$242.81

36040E

COVER-SIDE,RH,EBONY

36040-5263-6C

$242.81

39040

COVER-ASSY-CHAIN CASE

39040-0002

$98.49

39156

PAD,SIDE COVER,RH,LWR,FR

39156-0184

$21.86

39156A

PAD,SIDE COVER,RH,LWR,CNT

39156-0189

$24.63

39156B

PAD,SIDE COVER,RH,LWR,RR

39156-0190

$16.95

39156C

PAD,SIDE COVER,RH,UPP,FR

39156-0262

$30.47

39156D

PAD,SIDE COVER,RH,UPP,RR

39156-0263

$20.80

92071

GROMMET

92071-056

$4.26

92143

COLLAR

92143-1196

$4.69

92153

BOLT,6X12

92153-0503

$2.80
