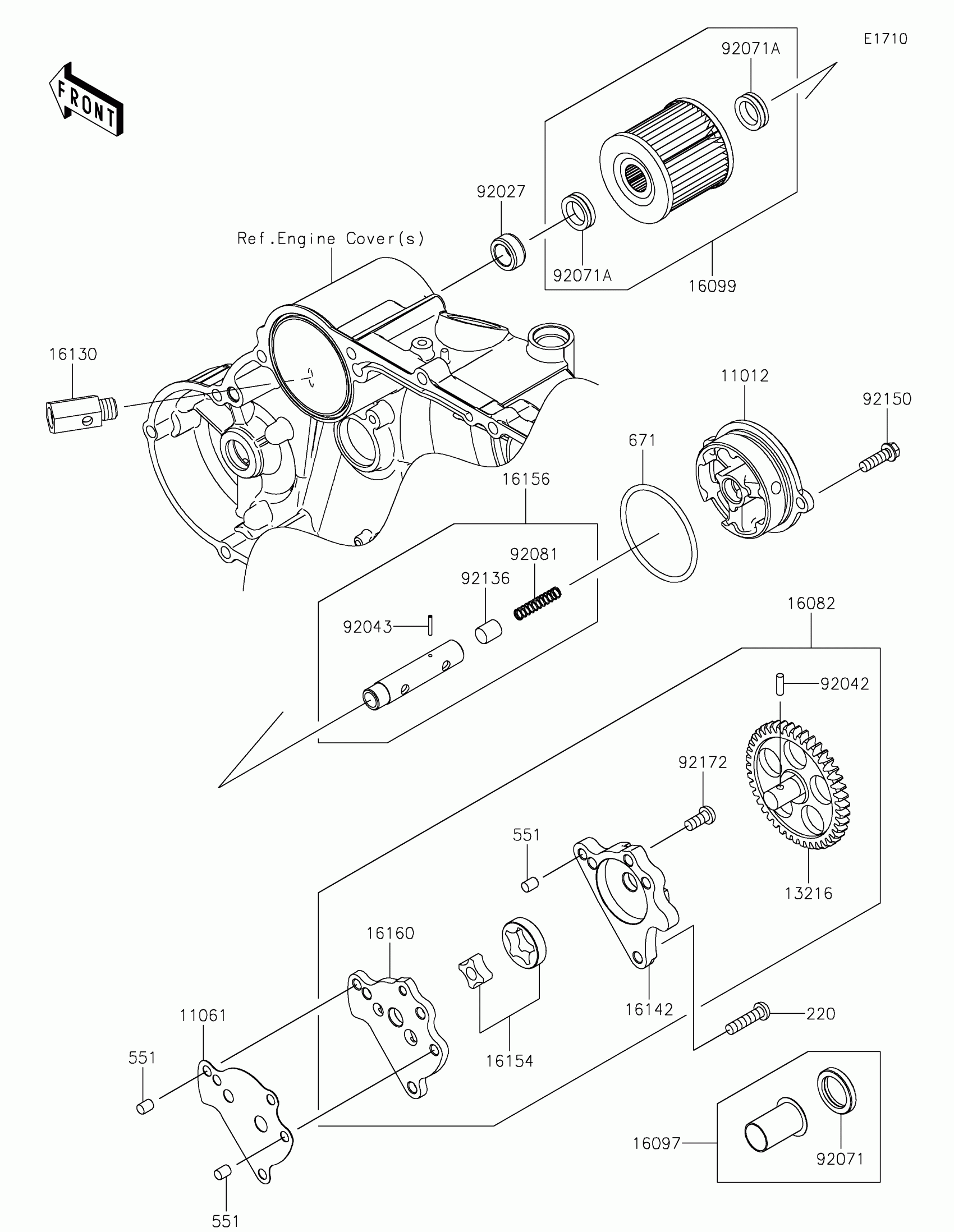

Kawasaki KLR®650 S ABS Oil Pump Diagram

#

Description
Price

11012

CAP,OIL FILTER

11012-1538

$58.44

11061

GASKET,OIL PUMP

11061-0430

$6.20

13216

GEAR-COMP,OIL PUMP

13216-1146

$123.31

16082

PUMP-ASSY-OIL

16082-1088

$180.24

16097

FILTER-ASSY-OIL

16097-1001

$12.23

16099

ELEMENT-OIL FILTER

16099-004

$9.26

16130

VALVE-ASSY-RELIEF

16130-1063

$11.88

16142

COVER-PUMP

16142-1078

$38.08

16154

ROTOR-PUMP

16154-1008

$34.82

16156

PISTON-ASSY,VALVE,BY-PASS

16156-002

$23.25

16160

BODY

16160-1137

$35.74

92027

COLLAR,13X20X9

92027-1695

$9.91

92042

PIN,DOWEL,4X12.8

92042-041

$6.57

92043

PIN,SPRING,2.2X13.5

92043-123

$4.69

92071

GROMMET,OIL STRAINER

92071-100

$5.46

92071A

GROMMET,OIL FILTER

92071-101

$5.46

92081

SPRING,PISTON

92081-043

$5.46

92136

VALVE

92136-002

$4.65

92150

BOLT,6X20

92150-1010

Unavailable

92172

SCREW,6X14

92172-0273

$1.48

220

SCREW-PAN-CROS,6X25

220AA0625

$2.78

551

PIN-DOWEL,6X8

551A0608

$3.92

671

O RING,55MM

671B2555

$6.22
