Muffler(s)

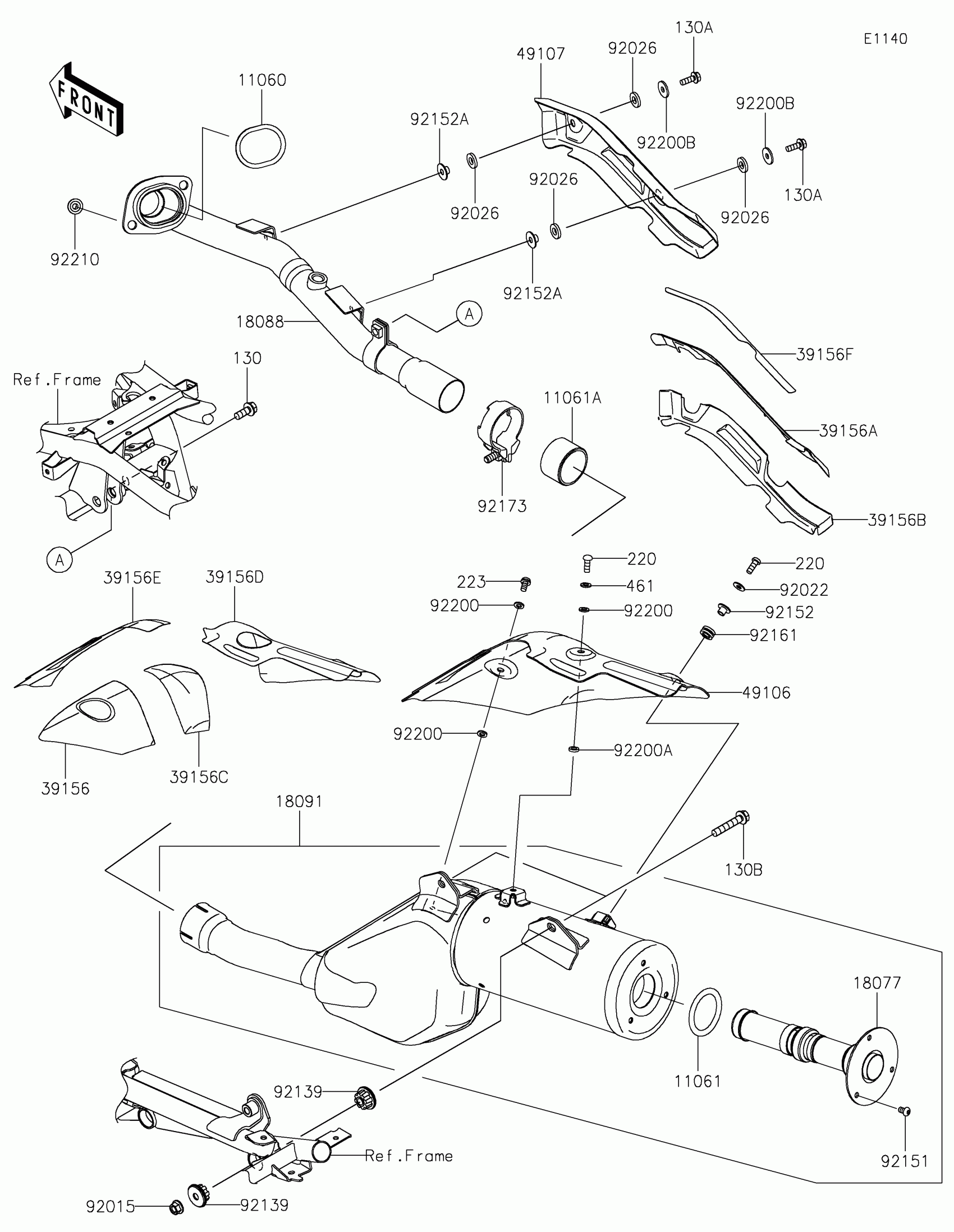

Kawasaki KLR®650 S ABS Muffler(s) Diagram
#
Description
Price
11060
GASKET,EXHAUST PIPE HOLDER
11060-1108
$9.20
11061
GASKET
11061-1345
$26.29
11061A
GASKET,EXHAUST PIPE CONNECTING
11061-1411
$30.09
18077
ARRESTER-SPARK
18077-0050
$125.98
18088
PIPE-EXHAUST
18088-1665
$359.85
18091
BODY-COMP-MUFFLER
18091-1268
$1,269.61
39156
PAD,MUFFLER COVER,FR
39156-2693
$10.27
39156A
PAD,EXHAUST PIPE COVER,CNT
39156-2698
$9.74
39156B
PAD,EXHAUST PIPE COVER,LWR
39156-2699
$10.79
39156C
PAD,MUFFLER COVER,CNT
39156-2738
$7.89
39156D
PAD,MUFFLER COVER,RR
39156-2773
$14.76
39156E
PAD,MUFFLER COVER,UPP
39156-2774
$11.06
39156F
PAD,EXHAUST PIPE COVER,UPP
39156-2798
$6.03
49106
COVER-MUFFLER
49106-0857
$231.34
49107
COVER-EXHAUST PIPE
49107-0849
$158.90
92015
NUT,8MM
92015-1402
$4.69
92022
WASHER,6.2X15X1.2
92022-2373
$0.43
92026
SPACER,8.7X18X3
92026-0919
$2.56
92139
BUSHING
92139-1116
$60.28
92151
BOLT,SOCKET,6X10
92151-1449
$2.46
92152
COLLAR
92152-2837
$0.63
92152A
COLLAR
92152-2862
$2.56
92161
DAMPER
92161-2434
$4.11
92173
CLAMP
92173-2463
$20.38
92200
WASHER,6.2X11.5X1.5
92200-2496
$0.63
92200A
WASHER,6.2X11.5X2.5
92200-2511
$1.36
92200B
WASHER,6.5X20X2
92200-2529
$1.84
92210
NUT,8MM
92210-1114
$2.46
130
BOLT-FLANGED,8X20
130BD0820
$2.80
130A
BOLT-FLANGED,6X18
130CB0618
$2.55
130B
BOLT-FLANGED
130CC0845
$3.56
220
SCREW-PAN-CROS,6X16
220AB0616
$4.45
223
SCREW-PAN-WS-CROS,6X12
223AB0612
$4.12
461
WASHER-SPRING,6MM
461DB0600
$0.65
