Front Fork

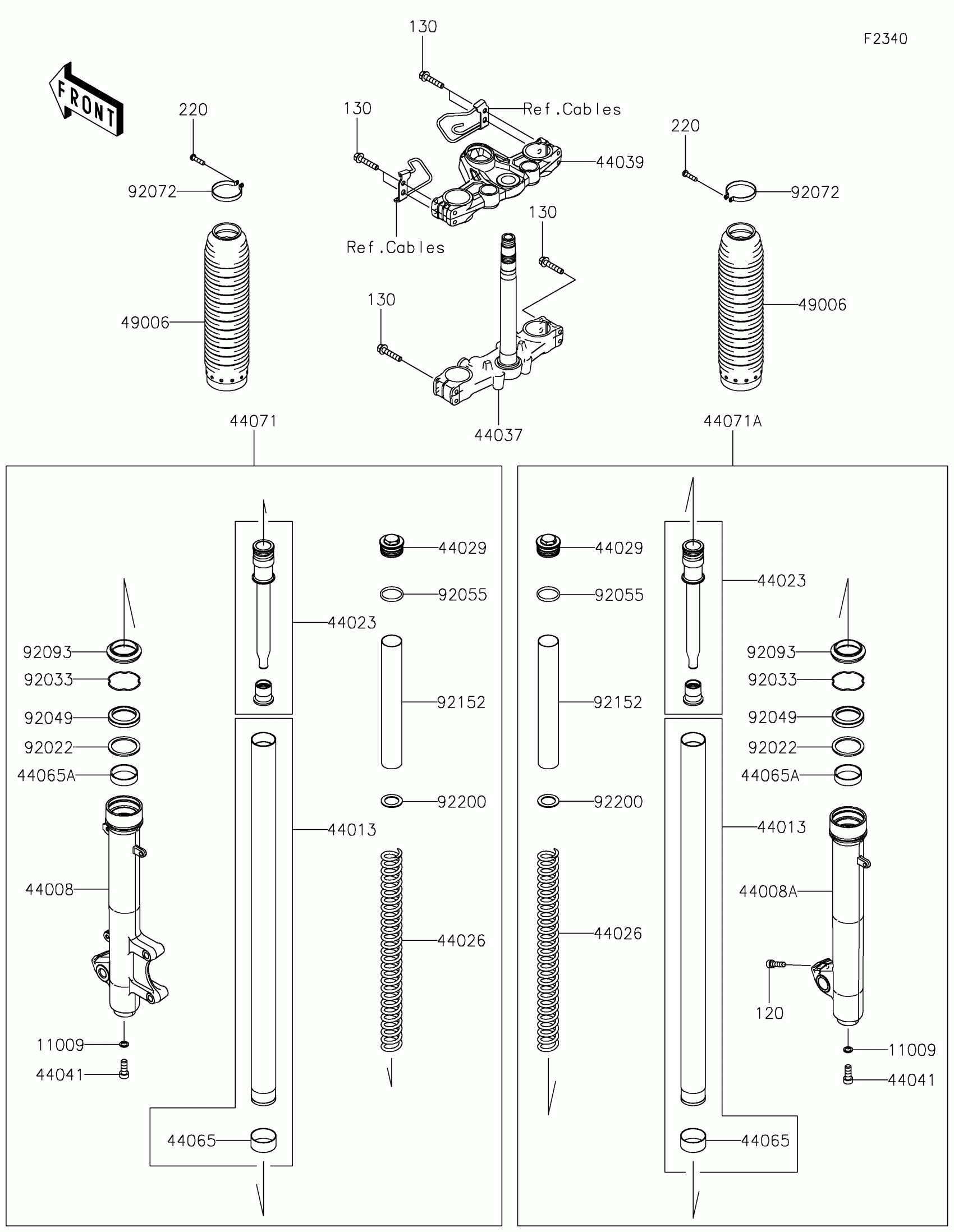

Kawasaki KLR®650 S ABS Front Fork Diagram
#
Description
Price
11009
GASKET,10.5X15X1.5
11009-1325
Unavailable
44008
PIPE-FORK OUTER
44008-0097
$475.95
44008A
PIPE-FORK OUTER
44008-0098
$475.95
44013
PIPE-FORK INNER
44013-0107
$352.37
44023
CYLINDER-SET-FORK
44023-0195
$181.51
44026
SPRING-FRONT FORK
44026-0298
$71.34
44029
SEAT-FORK SPRING
44029-0005
$44.62
44037
HOLDER-FORK UNDER
44037-0206
$614.87
44039
HOLDER-FORK UPPER
44039-0202
$321.22
44041
BOLT,SOCKET,FORK CYLINDER
44041-040
$6.57
44065
BUSHING-FRONT FORK,INNER TUBE
44065-0014
$29.57
44065A
BUSHING-FRONT FORK,OUTER TUBE
44065-1115
$28.71
44071
DAMPER-ASSY,FORK,LH
44071-1563
$766.97
44071A
DAMPER-ASSY,FORK,RH
44071-1564
$766.97
49006
BOOT
49006-0645
$63.03
92022
WASHER,FORK OUTER TUBE
92022-1298
$8.58
92033
RING-SNAP
92033-1036
$6.51
92049
SEAL-OIL,FORK OUTER TUBE
92049-1356
$19.34
92055
RING-O
92055-1321
$1.35
92072
BAND,BOOT
92072-1077
$9.98
92093
SEAL,DUST
92093-0036
$20.49
92152
COLLAR,FORK
92152-0410
$14.80
92200
WASHER
92200-1467
$9.91
120
BOLT-SOCKET,8X30
120CA0830
$2.80
130
BOLT-FLANGED,8X40
130BA0840
$1.98
220
SCREW-PAN-CROS,4X16
220AB0416
$1.81
