Chassis Electrical Equipment

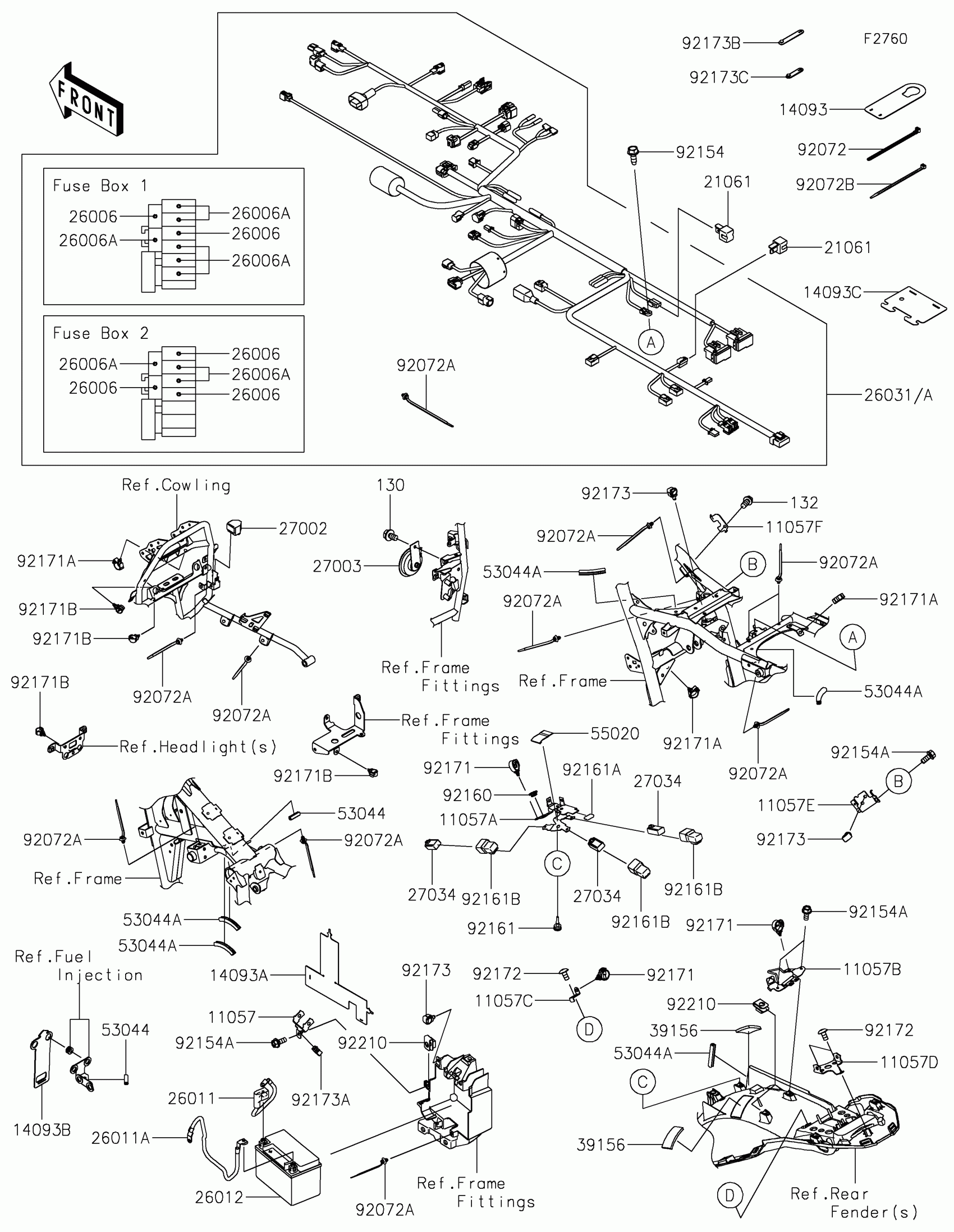

Kawasaki KLR®650 S ABS Chassis Electrical Equipment Diagram
#
11057
BRACKET,MAGNETIC SWITCH
11057-4292
$5.31
11057A
BRACKET,FUSE BOX
11057-4295
$6.77
11057B
BRACKET,RR HARNESS
11057-4298
$12.38
11057C
BRACKET,HARNESS GUIDE
11057-4301
$1.36
11057D
BRACKET,ECU
11057-4302
$4.36
11057E
BRACKET,RR SPEED SENSOR
11057-4378
$5.55
11057F
BRACKET,OXYGEN SENSOR
11057-4379
$2.56
14093
COVER,IGNITION SWITCH
14093-1044
$10.11
14093A
COVER,MAGNETIC SWITCH
14093-1197
$13.71
14093B
COVER
14093-1214
$10.10
14093C
COVER,HARNESS
14093-1539
$10.40
21061
RECTIFIER
21061-1003
$29.60
26006
FUSE,MINI BLADE,15A,BLUE
26006-0001
$6.12
26006A
FUSE,MINI BLADE,10A,RED
26006-1078
$4.87
26011
WIRE-LEAD,BATTERY(+)
26011-1935
$47.00
26011A
WIRE-LEAD,BATTERY(-)
26011-1937
$40.42
26012
BATTERY,FTX9-BS,12V 8AH
26012-0608
Unavailable
26031
HARNESS,MAIN
26031-3898
$852.22
26031A
HARNESS,MAIN
26031-3899
$852.22
27002
RELAY-ASSY,TURN SIGNAL
27002-0031
$25.81
27003
HORN
27003-0163
$70.00
27034
RELAY
27034-0012
$36.91
39156
PAD,30X55X5
39156-2694
$1.47
53044
TRIM,L=30
53044-0001
$2.80
53044A
TRIM,L=60
53044-0032
$7.54
55020
GUARD,50X30
55020-2334
$3.49
92072
BAND,L=140
92072-1293
$7.11
92072A
BAND,OS170-FT7(BLACK)
92072-1414
Unavailable
92072B
BAND,L=152
92072-3874
$4.18
92154
BOLT,FLANGED,6X16
92154-0551
$1.63
92154A
BOLT,FLANGED,5X12
92154-2893
$0.64
92160
DAMPER
92160-1613
$3.74
92161
DAMPER
92161-0901
$3.65
92161A
DAMPER,12X23
92161-1367
$1.19
92161B
DAMPER
92161-2290
$6.03
92171
CLAMP,20MM DIA.
92171-0069
$2.80
92171A
CLAMP,BRAKE HOSE
92171-0316
$3.88
92171B
CLAMP,13MM DIA.
92171-1415
$2.03
92172
SCREW,TAPPING,5X10
92172-0262
$1.34
92173
CLAMP,12MM DIA.
92173-0736
$5.05
92173A
CLAMP,HOLDER CLIP
92173-0868
$3.02
92173B
CLAMP
92173-2194
$1.83
92173C
CLAMP
92173-2198
$1.48
92210
NUT,PLATE,5MM
92210-0935
$1.97
130
BOLT-FLANGED,6X10
130BB0610
$2.49
132
BOLT-FLANGED-SMALL,6X12
132BB0612
$2.06
