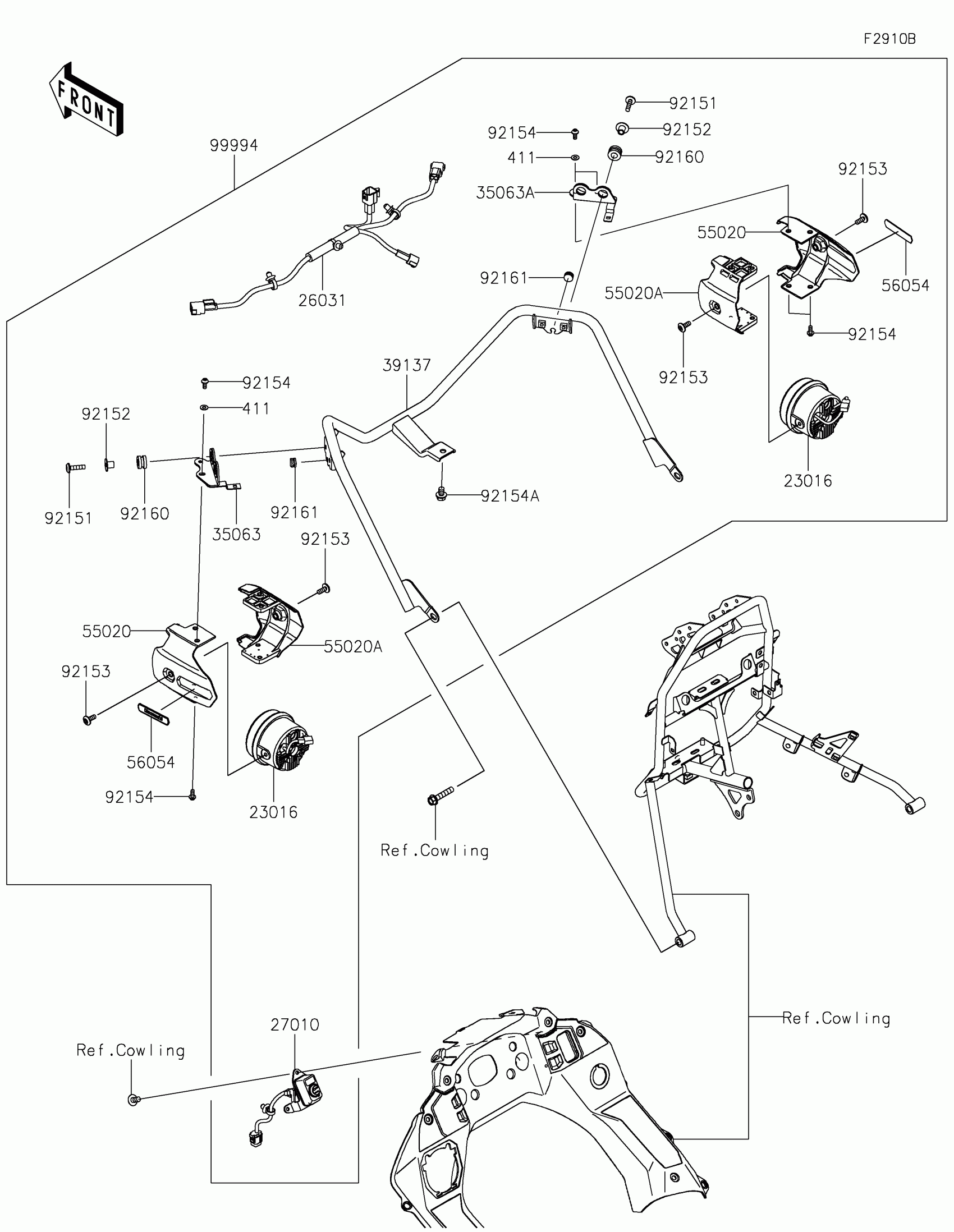

Kawasaki KLR®650 S ABS Accessory(Fog Lamp) Diagram

Description

Price

23016

LAMP-ASSY,LED,FOG,PIAA

23016-0599

$393.88

26031

HARNESS,FOG LAMP

26031-3860

$64.71

27010

SWITCH,FOG LAMP

27010-0968

$94.70

35063

STAY,LH

35063-1537

$9.36

35063A

STAY,RH

35063-1538

$9.36

39137

STAY-COMP,MAIN

39137-0713

$99.09

55020

GUARD,OUTER

55020-1825

$14.76

55020A

GUARD,INNER

55020-1826

$5.85

56054

MARK,FOG LAMP,KAWASAKI

56054-1695

$12.56

92151

BOLT,SOCKET,6X25

92151-1611

$2.34

92152

COLLAR,6.5X20X12

92152-2262

$7.34

92153

BOLT,SOCKET,6X16

92153-1526

$1.78

92154

BOLT,SOCKET,5X12

92154-0917

$4.72

92154A

BOLT,FLANGED,8X12

92154-4252

$1.59

92160

DAMPER,10X20X12

92160-1167

$4.69

92161

DAMPER,8X14X8.9

92161-1666

$1.48

99994

FOG LAMP

99994-1498

$470.52

411

WASHER-PLAIN,5MM

411AB0500

$0.84
