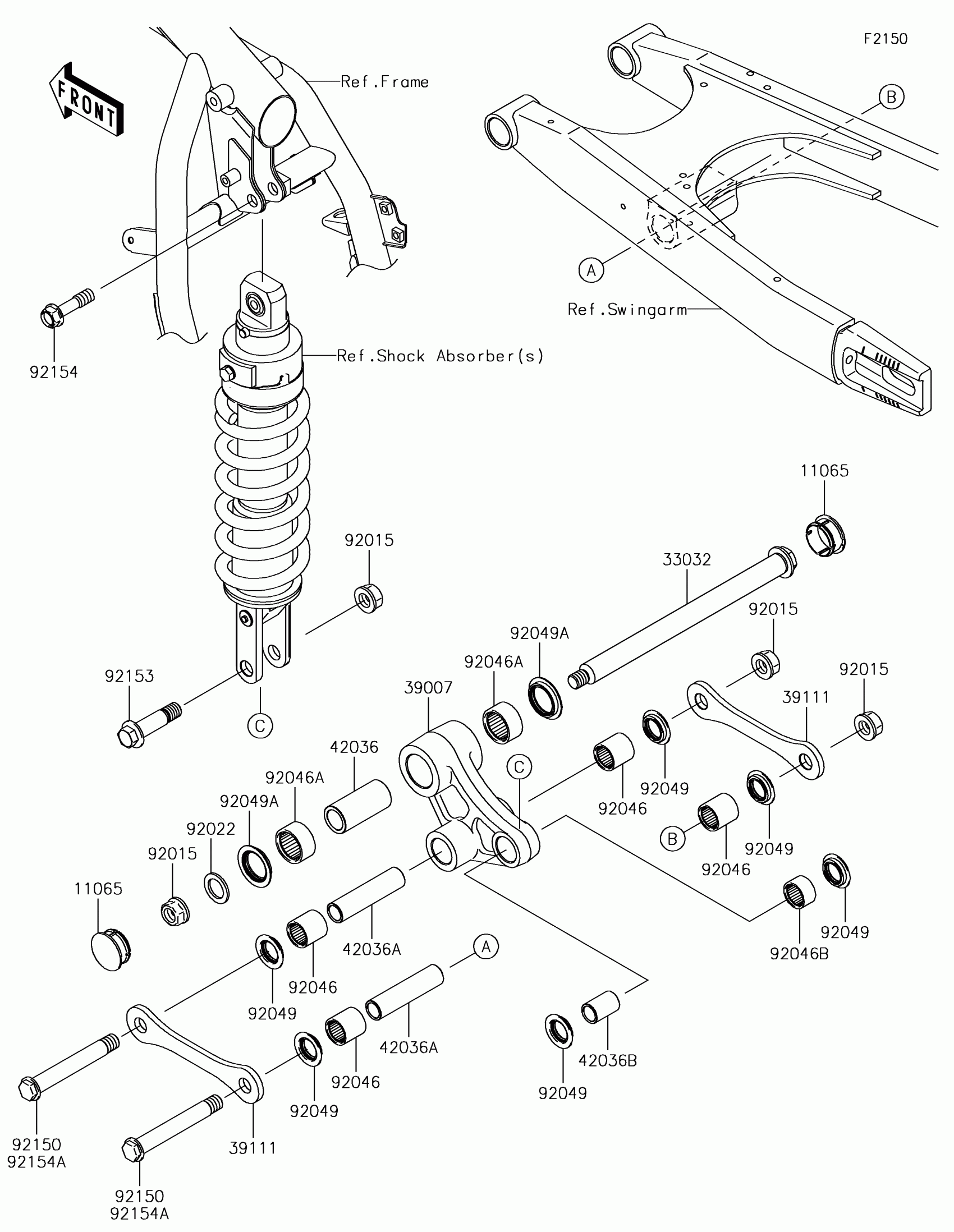

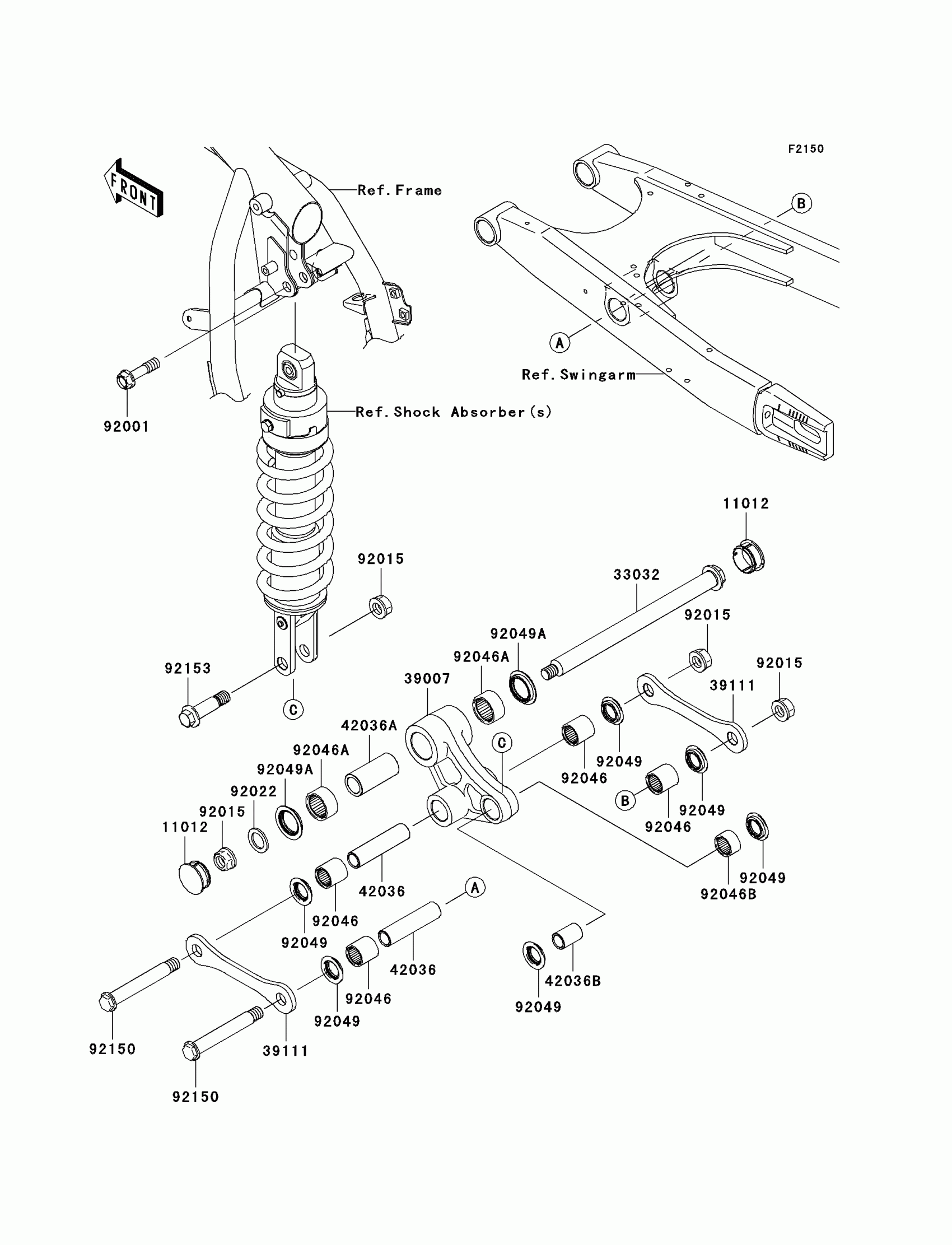

Kawasaki KLR™650 Rear Suspension Diagram

Description

Price

11065

CAP,32X14

11065-0822

$7.27

33032

SHAFT-SWING ARM

33032-0026

$83.32

39007

ARM-SUSP,UNI TRAK

39007-0075

$241.46

39111

ROD-TIE,SUSPENSION

39111-0077

$29.13

42036

SLEEVE,20X28X60

42036-0071

$31.98

42036A

SLEEVE,15X20X82

42036-0072

$28.40

42036B

SLEEVE,15X20X30

42036-0073

$17.02

92015

NUT,14MM

92015-1459

$9.91

92022

WASHER,20X30X2.3

92022-1568

$4.31

92046

BEARING-NEEDLE,BM202726

92046-1110

$23.45

92046A

BEARING-NEEDLE,BM2817

92046-1111

$21.86

92046B

BEARING-NEEDLE,BM202715

92046-1112

$20.89

92049

SEAL-OIL,ARM

92049-1109

$9.28

92049A

SEAL-OIL,28X34X5.7

92049-1181

$9.28

92153

BOLT,FLANGED,14X56

92153-1692

$22.29

92154

BOLT,FLANGED,12X45

92154-0366

$7.78

92154A

BOLT,FLANGED,14X108

92154-1427

$20.37
